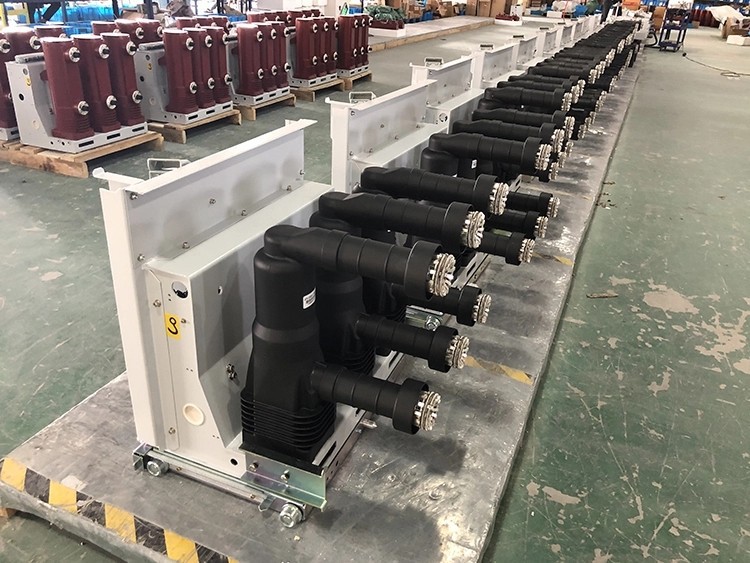

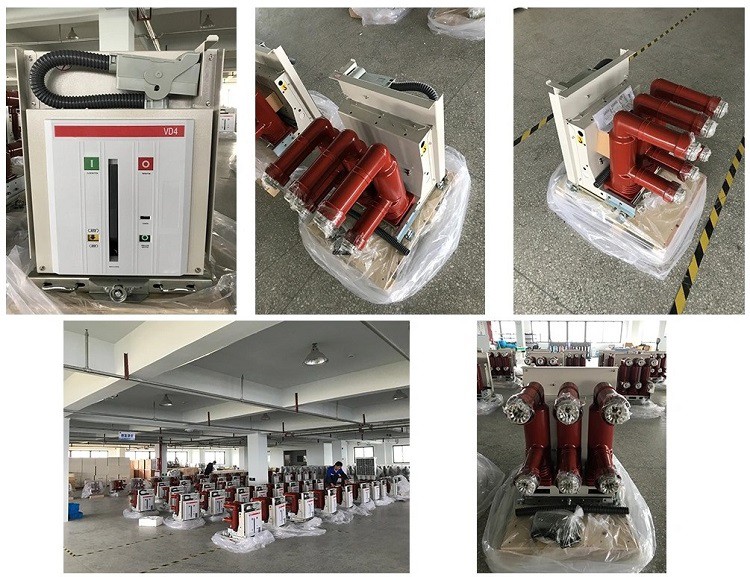

High Voltage VCB Vacuum Circuit Breaker
VS1 high voltage VCB vacuum circuit breaker is suitable for three-phase AC 50Hz, 12kV power system. It can be used for protection and control of electrical equipment in industrial and mining, enterprises, power plants and substations. Main feature 1. The vacuum circuit breaker adopts the design...
Description
VS1 high voltage VCB vacuum circuit breaker is suitable for three-phase AC 50Hz, 12kV power system. It can be used for protection and control of electrical equipment in industrial and mining, enterprises, power plants and substations.
Main feature
1. The vacuum circuit breaker adopts the design of the arc extinguishing chamber on the top and the operating mechanism on the bottom, which is easy to adjust.
2. The structure of combining air and organic composite insulating material is adopted.
3. Simple spring operating mechanism, the number of operations is 10,000 times.
4. Adopting the screw propulsion mechanism, the self-locking performance is stable and the self-locking is good.
| No | Item | Unit | Parameter | |
| 1 | Rated voltage | kV | 12 | 24 |
| 2 | Rated frequency | Hz | 50/60 | |
| 3 | Rated current | A | 630, ...4000A | |
| 4 | 1min Power frequency withstand voltage | kV | 48 | 65 |
| 5 | Lightning impulse withstand voltage | kV | 75/95 | 125/150 |
| 6 | Rated short circuit breaking current (peak) | kA | 50/63/80/100 | |
| 7 | Rated active load and close circuit breaking current | A | 63 | 50 |
| 8 | Rated short breaking current | kA | 20, …40 | |
| 9 | Rated short circuit making current (peak) | kA | 50/63/80/100 | |
| 10 | Rated cable(line) charging breaking current | A | 50 and 10 | |
| 11 | Rated capacitor bank switching current | A | 400 | |
| 12 | Rated withstand current (peak) | kA | 50/63/80/100 | |
| 13 | Short time withstand current (4s) | kA | 20, …40 | |
| 14 | Mechanism life | times | 10000 | |
Ordering instructions:
Please provide the following information:
Product number
Line diagram
Rated current
Wiring diagram
Rated short-circuit breaking current
Motor and trip coil voltage
Rated frequency
Working environment
We can customize different types of products according to the special requirements of customers.
Please inform us of detailed project conditions to design suitable products.
Please consult with us for VCB drawing and price.
