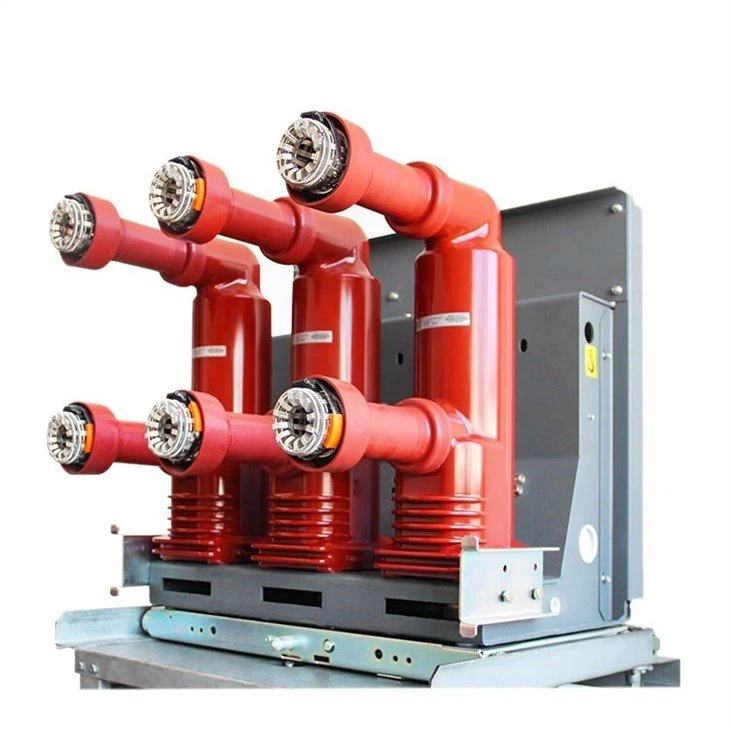

Indoor High Voltage VCB

Indoor high voltage vcb is an indoor switchgear with three-phase AC 50Hz rated voltage of 12kV and 24kV power system. It is used as a protection and control unit for power grid equipment and power equipment in industrial and mining enterprises. It is suitable for places requiring frequent...

Send Inquiry

Description

Use environmental conditions

1. Ambient air temperature: upper limit +40 degrees, lower limit -40 degrees;

2. Altitude: ≤2000m (if the altitude increases, the rated insulation level will increase accordingly);

3. Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);

4. Earthquake intensity: no more than 8 degrees;

5. Contamination level: Ⅳ level;

6. Maximum daily temperature difference: no more than 25 degrees;

7. Relative humidity: the daily average is not more than 95%, the monthly average is not more than 90%;

8. Places without inflammability, explosion hazard, chemical corrosion and severe vibration.

Data sheet of indoor high voltage VCB

No.	Item	Unit	Data
1	Rated voltage	KV	12kV	24kV
2	1min. Power frequency withstand voltage	KV	42	50
3	Lightning impulse withstand voltage(peak)	KV	75	125
4	Rated current	A	630A~4000A	630~4000A
5	Rated short-circuit breaking current	KA	20,25,31.5,40,50	20, 25, 31.5
6	Rated short-circuit making current(peak)	KA	50,63,80,100,125	50, 63, 80
7	4s rated short-time withstand current	KA	20,25,31.5,40,50	20, 25, 31.5
8	Rated peak withstand current	KA	50,63,80,100,125	50.63.80
9	Protection degree		Enclosure IP4X, VCB door opened IP2X
10	Panel width	mm	500/550/650/800/1000	800/1000
11	Weight	KG	400~1000	500~1200
12	Rated frequency	Hz	50Hz, or 60Hz
