HXGN-12 15.6KV Power Distribution Cabinet

Name: China Customized HXGN-12 15.6KV Power Distribution Cabinet Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 191411500

HXGN-12 box type fixed metal-enclosed switchgear (hereinafter referred to as ring network cabinet) is an AC high-voltage complete electrical device with a rated voltage of 12kV and a rated frequency of 50Hz. It is mainly used for three-phase AC ring networks, terminal distribution networks, and industrial electrical equipment. It plays the role of receiving, distributing electric energy and. It is also suitable for loading into the box-type substations.

Send Inquiry

Description

HXGN-12 15.6KV power distribution cabinet

1. Summary

This product is our company introduced advanced technology and a new generation of high voltage electrical products in accordance with the requirements of domestic rural and urban network renovation ,designed and developed. The strict type test and long-term operation of the examination, the technical performance indicators all meet IEC298 and GB2906 standards.

2. Environmental Conditions

Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8

3. Technical Data

No.	Item	Unit	Data
1	Rated voltage	KV	12
2	Rated current	A	Load break switch: 630 Circuit breaker: 630,1250,1600,2000,2500,3150
3	Rated short-circuit current	KA	Combination units: 50 Circuit breaker: 20,25,31.5,40
4	Rated peak withstand current	KA	Primary system: 50,63,80,100
5	Short-time withstand current(4s)	KA	Load break switch: 20
6	Insulation: Power frequency/Lightning	KV	42/75
7	Protection class		IP4X
8	Optional load break switch		FN3, FN5, FN7,FN12,FZN,FKN-12 etc.

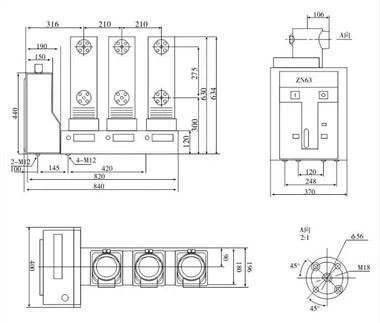

9	Optional circuit breaker		ZN28,ZN63A(VS1),VD4 etc.
10	Optional load break switch		FLN36,SFL,SFG etc.
11	Operating mechanism		Spring mechanism
12	Operational power supply	V	DC:110,220; AC:110,220
13	Overall dimension(WidthDepthHeight)	mm	(800,1000)x1200x1800(2200)
14	Weight	KG	500~1000

4.Characteristics:

1. It adopts a fully assembled structure, which is light and beautiful and can be combined and installed arbitrarily, which is convenient for unlimited expansion. 2. It can be equipped with either fn12-10 air pressure load switch and combination appliance, or zfn25-12 vacuum load switch and combination appliance, and the installation dimensions are completely consistent. Small size, maintenance-free, three-phase linkage structure, with obvious isolation fracture. 3. It is equipped with FN 12-10 load switch and combination appliance, which can be installed flexibly on the left and right sides, front and reverse. 4. It can be operated manually and electrically, and has a remote control function. 5. It is equipped with perfect and reliable mechanical linkage and interlocking devices to fully achieve the "five prevention" function. 6. Adopt linkage protection insulating valve to cover the live contact and ensure personal safety. 7. Adopt front operation and maintenance and reliable wall installation. 8. The front door is equipped with an observation window to clearly observe the working conditions of components in the cabinet. 9. Comply with GB3906 standard.

HXGN (2)

HXGN-12 (7)

HXGN-12 (17)

HXGN-12

HXGN-40.5

WORKSHOP

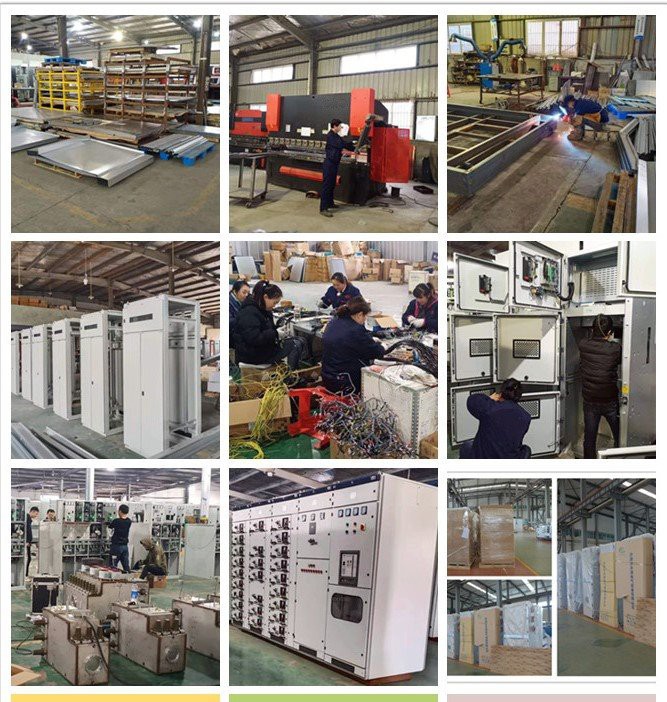

production line1
