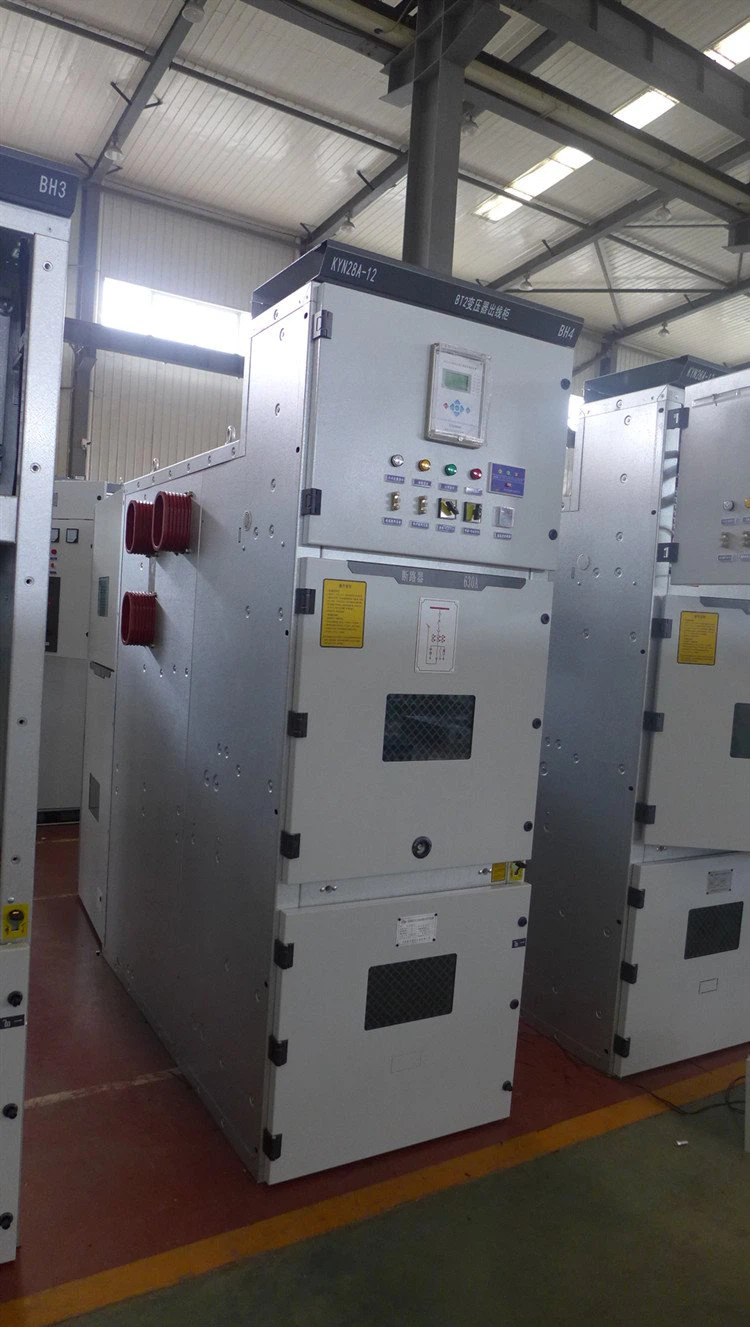

KYN28A Indoor MV 10KV Switchgear Cabinet
KYN28A metal-clad withdrawable switchgear is a necessary indoor power distribution equipment . It is mainly used to receive and distribute 3-24kV network electrical and control protection and monitoring to line circuit. The cabinet is equipped with VS1, ZN12V vacuum circuit breaker, also can be equiped with imported VD4 vacuum circuit breaker and VC series vacuum contactor. The switchgear meet the requirements of standard IEC62271-200, IEC62271-100 ect.
Description
KYN28A indoor MV 10KV switchgear cabinet
1.General
KYN Indoor AC metal-clad switchgear is a set of power distribution device of rated voltage 3 to 12KV three-phase AC 50Hz of
single bus bar and single bus bar segmental system. It is applicable to power transmission of the power plant, power receiving and
distribution of the electric system and the substation of the industrial enterprises to fulfill the aims of control, protection
and inspection.

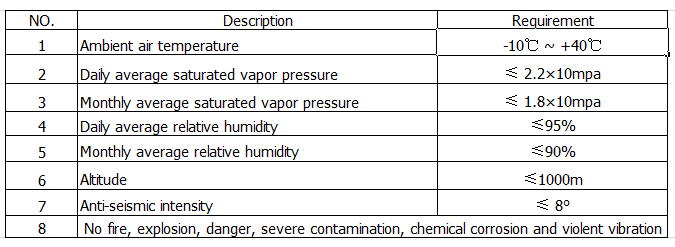

2. Use condition
Environment temperature: -15°C to +40°C
Relative humidity: daily average ≤95% monthly average≤90%
Height above sea level: ≤1000m
Earthquake magnitude ≤8
No fire, explosion danger, serious pollution, or chemical erosion occasion.
3.Main characteristics
The structure of the cabinet is bolt by aluminum zinc alloy board after the process of CNC machine tool and multi bending technology;
All the operation can be done after the cabinet door is closed;
High protection degree, protect the intruder of sundries and pests;
Simple and effective “five-prevention” lock function, protect error operation;
Can adopt VS1 and CD4 vacuum circuit breaker;
Easy replacement of the circuit breaker and free exchange of the drawers;
The cabinet can be installed by the wall, maintenance in the front, which reduces the floor space;
Large space of the cable room can connect many cables;
The relay room and the cable room can respectively add a heater to avoid freezing or erosion.
| No. | Items | Unit | Data | |
| 1 | Rated voltage | KV | 3.6 / 7.2 /12 | |
| 2 | Rated insulation level | 1 min power frequency withstand voltage | KV | 42 |
| Lighting impulse withstand voltage | KV | 75 | ||
| 3 | Rated frequency | Hz | 50 | |
| 4 | Rated current | A | 630/1000/1250/1600/1200/2500/3150 | |
| 5 | Rated short-yime withstand current(4s) | KA | 16/20/25/31.5/40/50 | |
| 6 | Rated peak withstand current | KA | 40/50/63/80/100/125 | |
| 7 | Protection degree | Outer shell IP4X , cubicle and circuit breaker door open IP2X | ||
