Indoor 24 KV AC Metal-clad Electrical Switchgear

Indoor 24 KV AC Metal-clad Electrical Switchgear

Indoor AC metal-clad electrical switchgear is a complete power distribution equipment used for 3.6~24kV, three-phase AC50/60Hz, single bus and single bus section system. Mainly used for power transmission of small and medium generators in power plants; power reception and transmission of power distribution and substations in power systems of factories, mines and enterprises, and the start of large high-voltage motors to control, protect and monitor systems. The switchgear meets the requirements of IEC298, GB3906-91. In addition to the use of household VS1 vacuum circuit breakers, it can also be used with ABB's VD4, Siemens' ZN65A's Siemens 3AH5, GE's VB2, etc., to truly realize the good performance of the power distribution device.

In order to meet the requirements of wall-mounted installation and front-end maintenance, the switch cabinet is equipped with a special current transformer so that the operator can perform maintenance and inspection in front of the cabinet.

Service environment

1. Air temperature: -25℃~+40℃

2. Humidity: monthly average humidity 95%; daily average humidity 90%.

3. Altitude: ≤2500m

4. The surrounding air is obviously not polluted by corrosive and combustible gases, vapors, etc.

5. No frequent violent shaking

Fully type tested

The switchgear has passed all tests required by international (IEC) standards. Each switchgear unit must undergo routine factory testing before leaving the factory. These tests are designed to perform functional checks on the switchgear according to the specific characteristics of each installation.

Features

1: STRICT protection step to ensure personal safety

2: The cable room can be installed as many as 9 single-core cables

3: Operation and testing positions will be established for the handcart, and both positions are equipped with safe and reliable positioning device and display device

4: The enclosure is completely assembled from aluminized and galvanized steel plate, which are machined and bent by machine tool and then bolted.

5: It has high mechanical strength and its neatness and beauty is ensured.

6: The switchboard door is sprayed with plastic, also has strong capacity of impact resistance and corrosion protection.

7: The primary switch may be provided with VD4 vacuum circuit breaker and C3 series of fixed type load switch from ABB, various domestic vacuum circuit breakers (such as VS1, VH1, VK, ZN28) may also be provided in lieu of the same foreign products.

8: Front door is installed with a observation window to check the operating state of the components inside the room

Five prevention measures for high-voltage switchgear

1. After the vacuum circuit breaker car inside the high-voltage switchgear is closed in the test position, the car circuit breaker cannot enter the working position. (Prevent load closing)

2. When the grounding switch inside the high-voltage switchgear is in the closed position, the car circuit breaker cannot be closed. (Prevent closing with grounding wire)

3. When the vacuum circuit breaker inside the high-voltage switchgear is closed, the back door of the panel and cabinet is locked with a mechanical device on the grounding knife. (To prevent accidental entry into live compartments)

4. The vacuum circuit breaker inside the high-voltage switchgear is closed during operation, and the grounding switch cannot be put into operation. (Prevent live hanging of grounding wires)

5. The vacuum circuit breaker inside the high-voltage switchgear cannot exit the working position of the trolley circuit breaker when it is working and closing. (To prevent the blade from being pulled under load)

Technical data

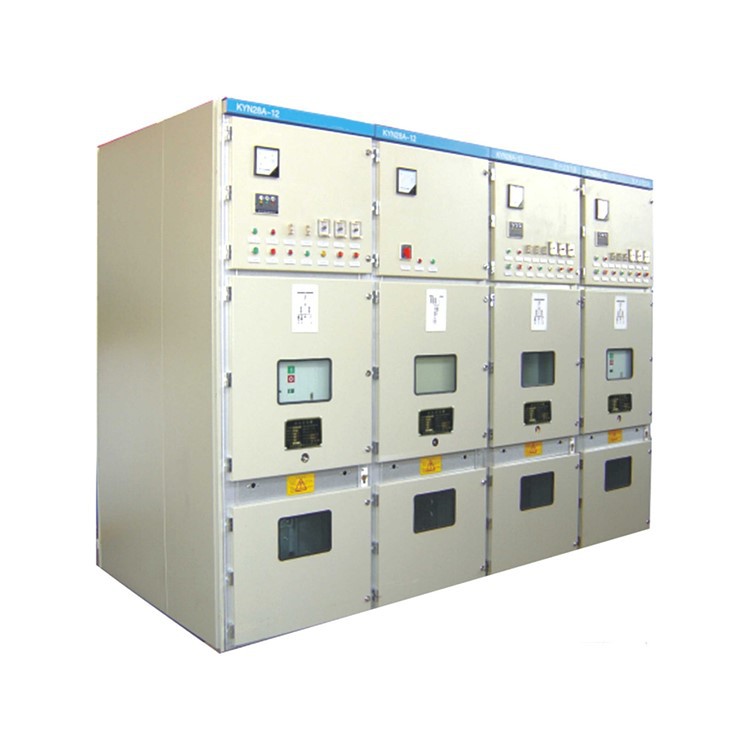

PRODUCT PHOTO

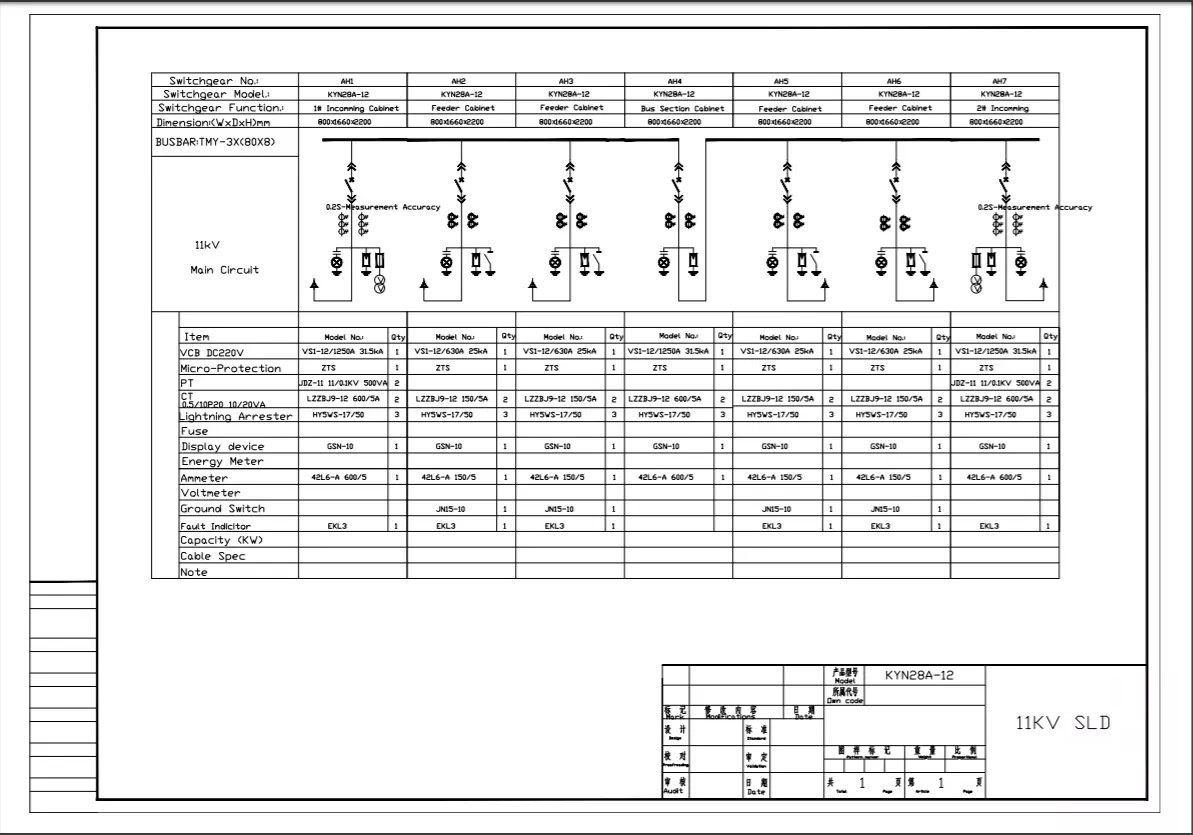

Send us your SLD (Single Line Drawing) or requirements ,we design switchgear plan for you！

Company Profile:

Henan Fengyuan Power Technology Co., Ltd. was established in 2010.

Relying on a high-quality technical research and development team and continuously updated product structure, the company's products have reached more than 100 specifications. Product coverage: power transformers, indoor (outdoor) high voltage vacuum circuit breakers, high and low voltage switch cabinets, box-type substations, ring network cabinets and other electrical products. The company has first-class production equipment, advanced manufacturing technology, strict production quality management system, sophisticated testing equipment and perfect after-sales service system. A strong product application and technical support team can provide customers with the most comprehensive and safest product application and technical support.

EXHIBITION

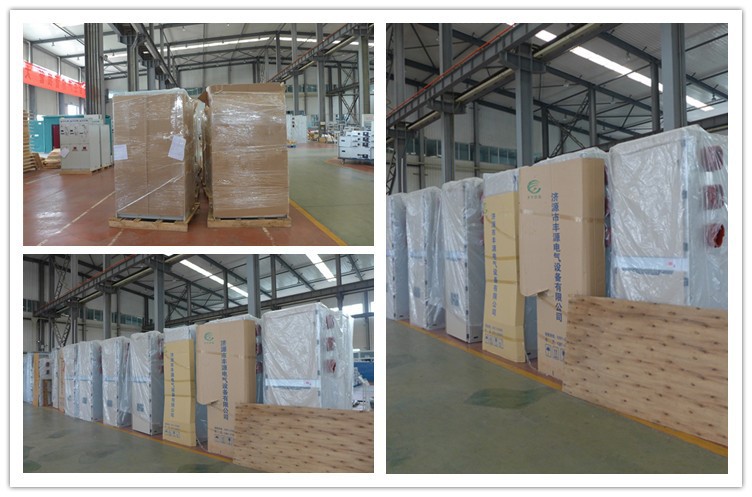

PACKING&DELIVERY

FAQ:

1. Are you a manufacturer?

Yes, we are an OEM manufacturer. We have factories producing power equipment (power transformers, high and low voltage switch cabinets and box-type substations).

2. How about pre-sale and after-sales service?

Before ordering, we will discuss complete product details, price details, delivery details and installation details, etc. After ordering, we will provide technical support. If you need, we agree to provide overseas services.

3. What is your minimum order quantity?

A set of our electrical equipment.

4. How about the delivery time?

Our production time takes about 15-30 days. According to the exact time of the order.

This product is usually customized.

We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.

Please contact our sales personnel to obtain design drawings

Here are our customer examples for your reference

Uzbekistan customer

Datasheet

1.1 710-512-01-MVS1 Main Substation

Incoming Switchgear A01 B01 2

No Components Specification Unit Qty Maker

1 VCB

HVX12-50-31-F 275mm

Altitude ≤2000m

Opening voltage DC220V

Closing voltage DC220V

Energy storage voltage DC220V

Set 1 China

2 VT JDZ-10 10KV/√3/0.1KV/√3 Set 3 China

3 CT

LZZBJ9-12 3000/1A 5P20 10VA

5P20 5VA 5Fs5 5VA

Set 3 China

4 High voltage fuse XRNP1-12 0.5A Pc 3 China

5 Lightning arrester HY5WZ-17/50 Set 3 China

6 Intelligent control panel WY-9008A Pc 1 China

7 Short circuit and ground fault indicator EKL-4-1 Pc 1 China

8 Multifunctional electric instrument PD666-3S3 380V 5A Pc 1 China

9 Primary harmonic eliminator LXQ-12KV Pc 1 Fengyuan

10 Charged display DXN-12Q Pc 1 China

11 Temperature and humidity controller WY-CS-III Pc 1 China

12 Connecting piece JY-2 Pc 3 China

13 Junction box PJ1 Pc 1 China

14 Metering bracket Universal type Pc 1 China

15 Signal lamp ND16-22D/4 AC380V red Pc 1 CHNT

16 Signal lamp ND16-22D/4 AC380V green Pc 1 CHNT

17 Signal lamp ND16-22D/4 AC380V white Pc 1 CHNT

18 AC miniature circuit breaker NB1-63/2P C6A 6kA(R) Pc 2 Fengyuan

19 AC miniature circuit breaker NB1-63/3P C3A 6kA(R) Pc 1 Fengyuan

20 DC miniature circuit breaker NB1Z-63 2P C6 Pc 1 Fengyuan

21 AC miniature circuit breaker NB1-63/3P B2A 6kA(R) Pc 1 China

22 Universal test terminal RURTK/S Pc 30 China

23 Universal terminal block RUK 5B Pc 18 China

24 Cabinet top small bus Ø 6 copper bar m 11 Fengyuan

IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
