The intelligent monitoring system for substation mainly plays a protective role in which aspects

The intelligent monitoring system for the casing of the box transformer mainly includes the following aspects

1、 Monitoring and protection of electrical parameters

Real time online monitoring of the three-phase inlet voltage on the high-voltage side and the current at each output port on the low-voltage side, recording the voltage, current power, and power factor during operation for local detection by the upper computer. If a current fault occurs, timely disconnect the load switch and send a fault status signal to the upper computer.

2、 Anti condensation protection

The temperature difference of the box transformer casing is large when used outdoors. The intelligent monitoring system of the box transformer casing timely activates dehumidification and heating equipment based on the current temperature and humidity, breaking the formation of condensation and effectively protecting high-voltage switches or low-voltage switchgear.

3、 Transformer room temperature protection

When the operation process of a transformer is too long, the temperature is extremely easy to rise. If it is not cooled down in a timely manner, it can affect the output of the transformer and even cause permanent damage. Through real-time monitoring, when the temperature exceeds the set value, the exhaust system can be started for heat dissipation.

The intelligent monitoring system of the box transformer casing aims to comprehensively analyze electrical parameters, environmental temperature and humidity, transformer temperature, and other information to make corresponding actions, ensuring the safe operation of the substation and extending its service life.

4、 Online digital display and setting of parameters

The temperature of each high and low voltage output port is displayed through LED cycling, and the high voltage side current fault can be displayed through display buttons. It can be changed through keyboard settings and commands can be issued through the upper computer.

5、 Distribution network automation

1. Safety control, to minimize the losses caused by faults in the distribution network system. In case of non permanent faults, relay protection is used to eliminate the fault and restore power supply. In case of permanent faults, the fault is controlled within a small range, and the power supply is restored as soon as possible within the non permanent fault range.

2. Economic control

The purpose is to effectively utilize the power of distribution equipment, reduce or delay capital investment, and reduce operating costs.

Overall, the intelligent monitoring system for the casing of the box transformer has the functions of improving power supply stability and quality, and greatly avoiding the occurrence of electrical faults and reducing economic losses caused by faults

PRODUCT LINK

http://www.switchgear-china.com/box-type-compact-substation/prefabricated-substation/box-transformer-substation.html

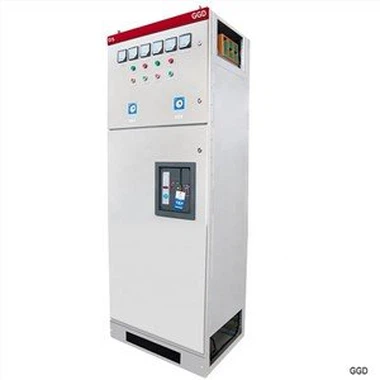

PRODUCT PHOTO
