23KV 300A HV Vacuum Circuit Breaker
12KV Automatic Smart Types VCB Vacuum Circuit Breakers vs1 -12kV Model indoor AC high voltage vacuum circuit breaker is a type of holistic and completely sealed High Voltage switchgear, it has compact dimension and small volume. The VCB applies to power system of rated voltage 7.2~12kV, three-phase and AC 50/60Hz. It is applicable in occasions with frequent operations, acting to protect and control line and electric apparatus. The product conforms to IEC62271-100, GB1984, JB3855 and DL1403 and passes type test.
Description

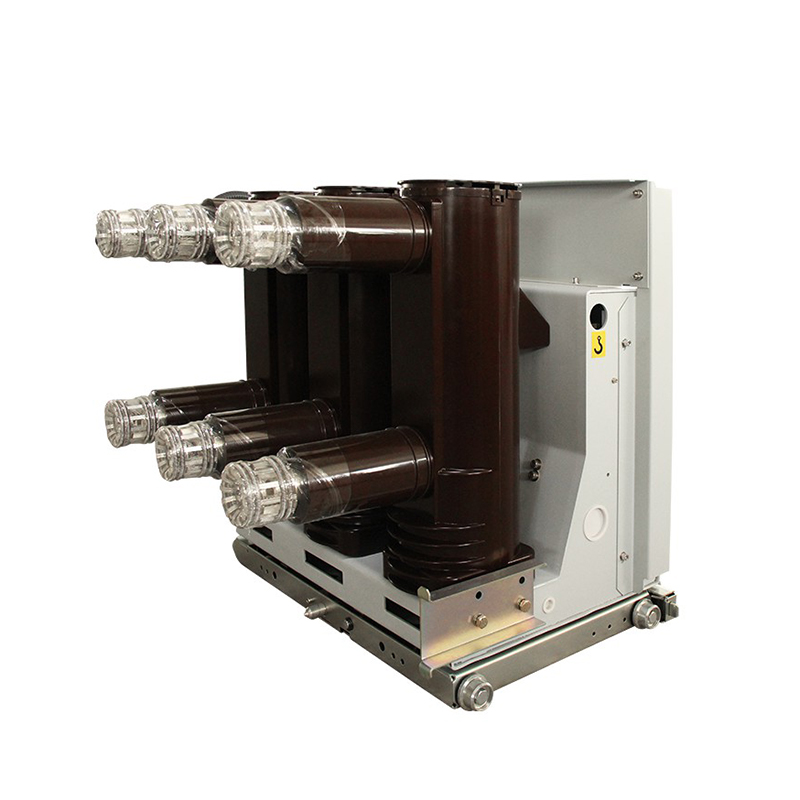

23KV 300A HV vacuum Circuit breaker
General description：
(VS1)-12 is a HV indoor vacuum circuit breaker working as a protection and control unit of power grid equipment and industrial electric equipment in power system of rated voltage from 7.2KV to 12KV. It meets the requirements of GB/T1984-2014 (AC HV circuit breaker) and JB355-1996 (3.6KV-40.5KV indoor AC HV vacuum circuit breaker). It can be used in switchgears of KYN28, XGN,etc
Main Features
1. It is convenient for adjustment due to the vacuum circuit breaker adopt the design of arcing chamber is located on the upper, the operating mechanism is located on the down; 2. It adopt the structure of combination of air and organic composite insulating material; 3. Simple spring operating mechanism, 10000 operating times; 4. Smooth and good self-locking performance due to lead-screw propulsion mechanism.

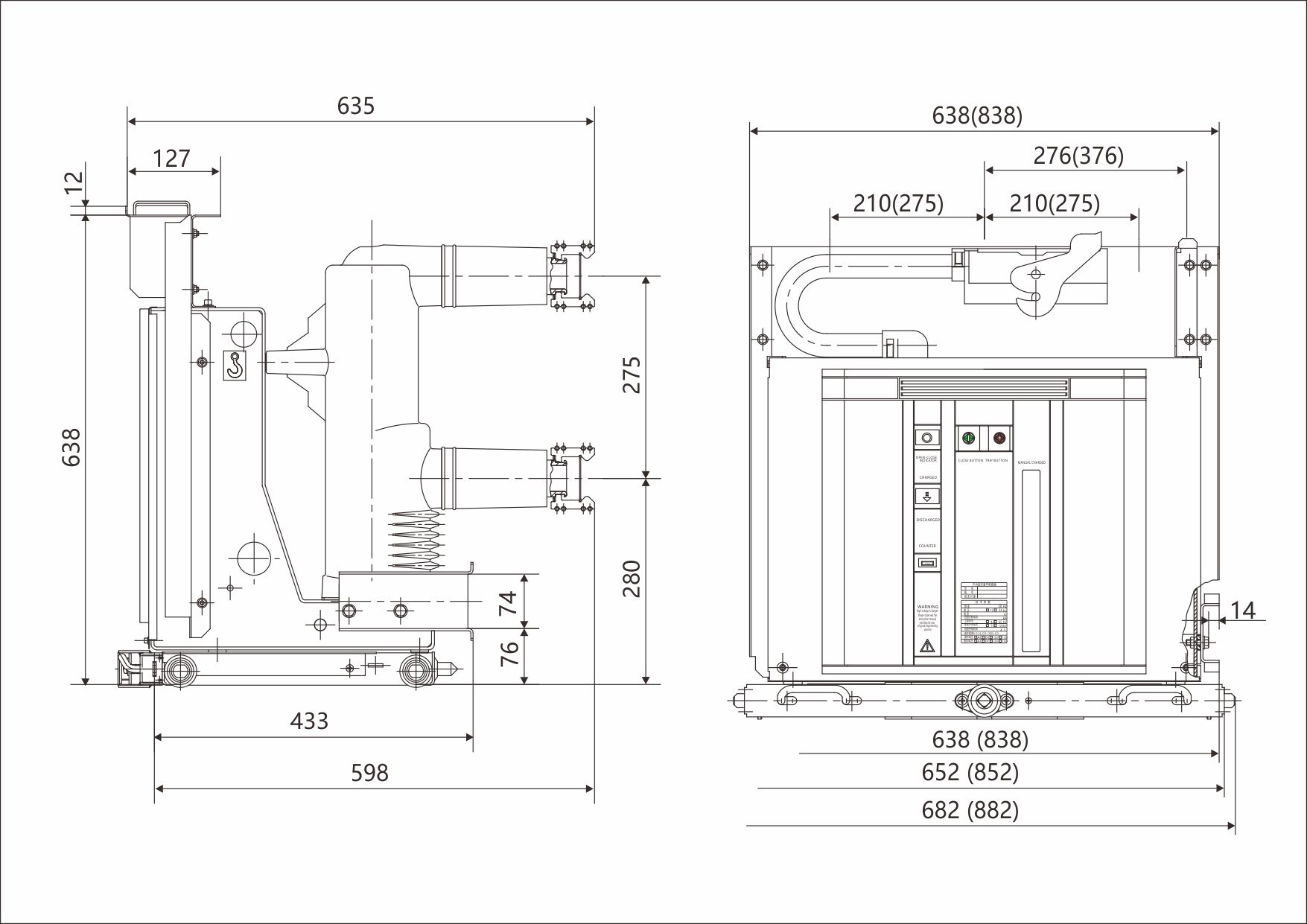

650/800/1000/1200mm
Operating conditions
Temperature：-10℃～+40℃ Relative humidity：Daily mean relative humidity not more than 95%; monthly mean relative humidity not more than 90% Seismic intensity：Not more than Level 8. Saturated vapor pressure: daily mean pressure not more than 2.2kPa；monthly mean pressure not more than 1.8Kpa Altitude：≤1000 m（Otherwise in special cases） This device should be installed in a place free of fire, explosion, severe dirt, chemical erosion and severe vibration.
FACTORY
CERTIFICATE
EXHIBITION
COMPANY OVERVIEW
FAQ
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
