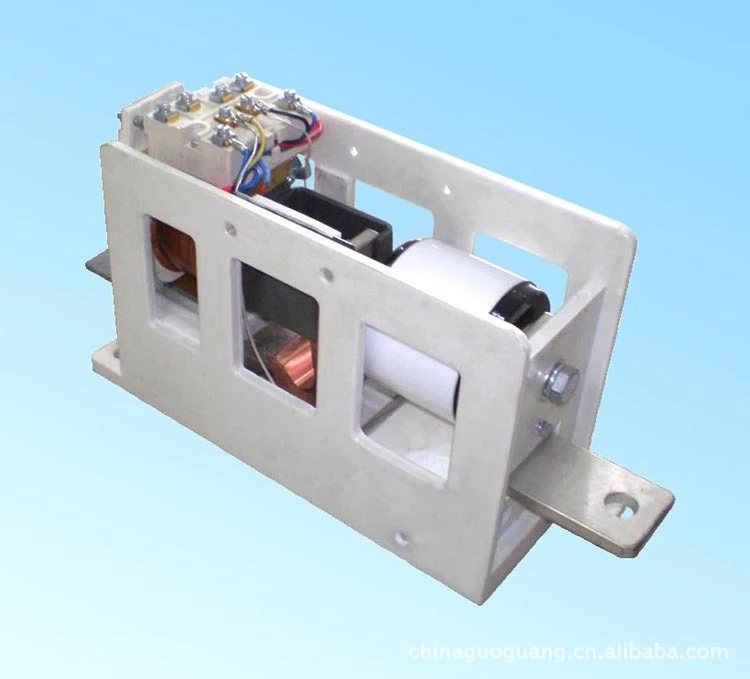

High Quality Indoor Vacuum Switch
EVS800-1600 series low-voltage vacuum contactors are high-current extended series of EVS160-630 heavy-duty low-voltage vacuum contactors, which have the advantages of large making and breaking capacity, long electrical and mechanical life, and high reliability under harsh conditions. Rated...
Description
EVS800-1600 series low-voltage vacuum contactors are high-current extended series of EVS160-630 heavy-duty low-voltage vacuum contactors, which have the advantages of large making and breaking capacity, long electrical and mechanical life, and high reliability under harsh conditions. Rated working voltage 1140V or 2000V, rated current: 800A, 1000A, 1250A, 1600A. Can be multi-level combination.
EVS (800-1600) series vacuum contactors are single-pole structural units, which can be composed of n-pole vacuum contactors according to requirements. Its operating mechanism is electromagnetic holding type, DC magnetic system. When AC control power is used, the wire package is fed through a rectifier. It is suitable for electrical control occasions requiring high current control under the AC-1 and AC-2 use categories.
| Electrical parameters: | |
| Main circuit rated voltage (V) | 1140 - 2000 |
| Main circuit rated current (A) | 800、1000、1250、1600 |
| Main circuit making ability (A) | 4Ie (AC-2) |
| Main circuit breaking capacity (A) | 4Ie (AC-2) |
| Main circuit rated frequency (Hz) | 50/60 |
| Mechanical life (10,000 times) | 100 |
| Electrical life AC2 (10,000 times) | 25 |
| Rated operating frequency (times/h) | 300 |
| Main circuit power frequency withstand voltage (fracture) (KV) | 10 |
| Phase-phase, phase-ground power frequency withstand voltage (KV) | 5 |
| Main circuit contact resistance (μΩ) | ≤100 |
| Contact distance (mm) | 2.5±0.5 |
| Overtravel (mm) | 2.5±0.5 |
| Secondary control voltage (V) | AC:110 /220/380V DC:110/220V |
| Closing time (ms) | ≤50 |
| Opening time (ms) | ≤50 |
| Closing bounce (ms) | ≤3 |
