GGD Distribution Box Complete Cabinet

Name: China Customized GGD Distribution Box Complete Cabinet Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 191833606

The GGD Low Voltage Fixed Complete-set Switchgear Equipment(Abbreviation as Switchgear)is for the purpose of power distribution equipment,lighting,distribution of electrical energy conversion and control which applies to ac50 hz below rated voltage 400 V rated current 4000 A.It applies to circuit of AC50Hz, rated working voltage 400V and rated working Current upto 4000A for power generation plant, substation, industrial and mining enterprises, civil infrastructure and other fields. It features the High breaking capacity, flexibly, simply, strong practicality,high-reliability,novel structure and perfect protection functions.

Send Inquiry

Description

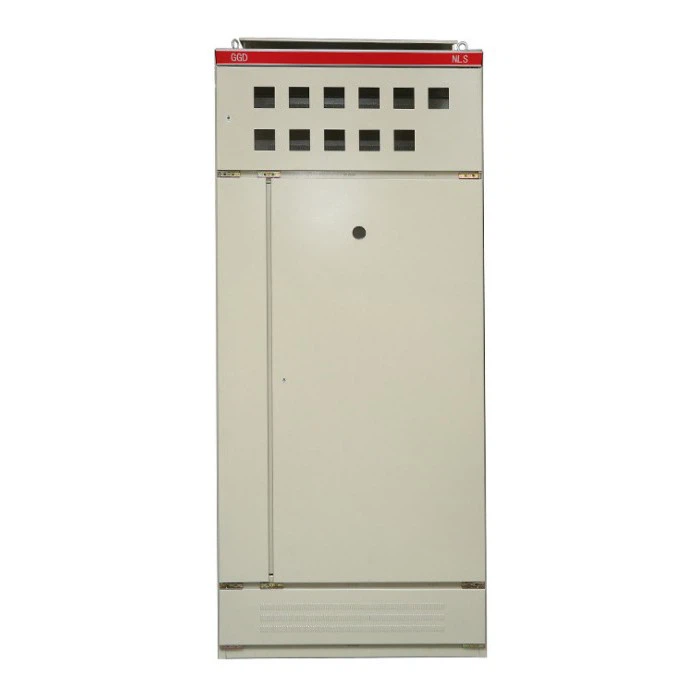

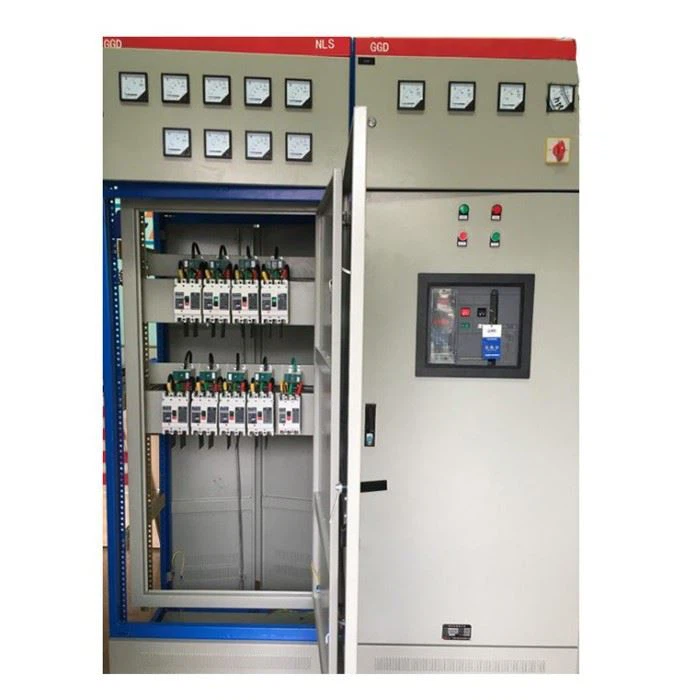

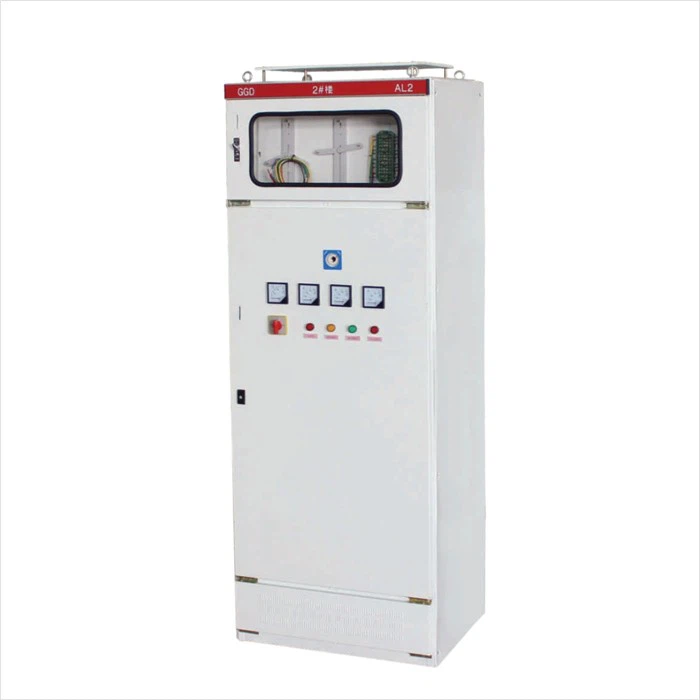

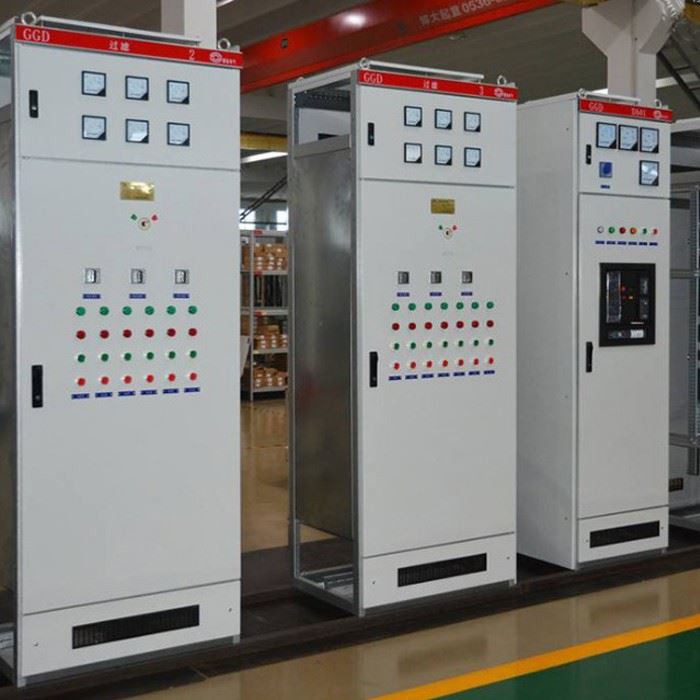

GGD Distribution box complete cabinet

GGD type low-voltage fixed switchgear is suitable for power users such as power plants, substations, industrial and mining enterprises as power, lighting and power distribution equipment in power distribution systems with AC 50Hz, rated working voltage 380V, and rated current up to 3150A For conversion, distribution and control. The product has high breaking capacity, rated short-time withstand current up to 50KA, flexible circuit scheme, convenient combination, strong practicability, and novel structure.

Main technical parameters
Main circuit rated voltage(V)	..........................	Ac 400 (600)
Rated voltage of auxiliary circuit (V)	..........................	Ac 220/380 (400) dc 110/220
Rated frequency (Hz)	..........................	50(60)
Rated insulation voltage(V)	..........................	690(1000)
Rated current(A)	The level of bus	≤6000
Rated short-time bus withstand current (kA/1s)	..........................	50,80
Rated peak withstand current of bus (kA/0.1s)	..........................	105,176
Power frequency test voltage (V/1min)	main circuit	2500
Power frequency test voltage (V/1min)	Auxiliary circuit	1760
bus	Three-phase four-wire system	A、B、C、PEN
bus	Three-phase five-wire system	A、B、C、PE、N
Protection grade	..........................	IP30

Service conditions

◎ Altitude: 2000m The following;

◎ Ambient air temperature: -5°C~+40°C, average temperature in 24h should not exceed +35°C;

◎ Relative humidity shall not exceed 50% at +40°C, higher relative humidity is allowed at lower temperature condition, (for instance, 90% at +20°C), please take measures for the dew produced on the product caused by temperature change occasionally.

◎ Degree of deviation from the vertical should not exceed 5° ;

◎ The installation site for the switchgear should be free from severe vibration or impact, no corrosive medium that may erode the electric components.

GGD (5)

GGD (6)

GGD (7)

GGD (8)

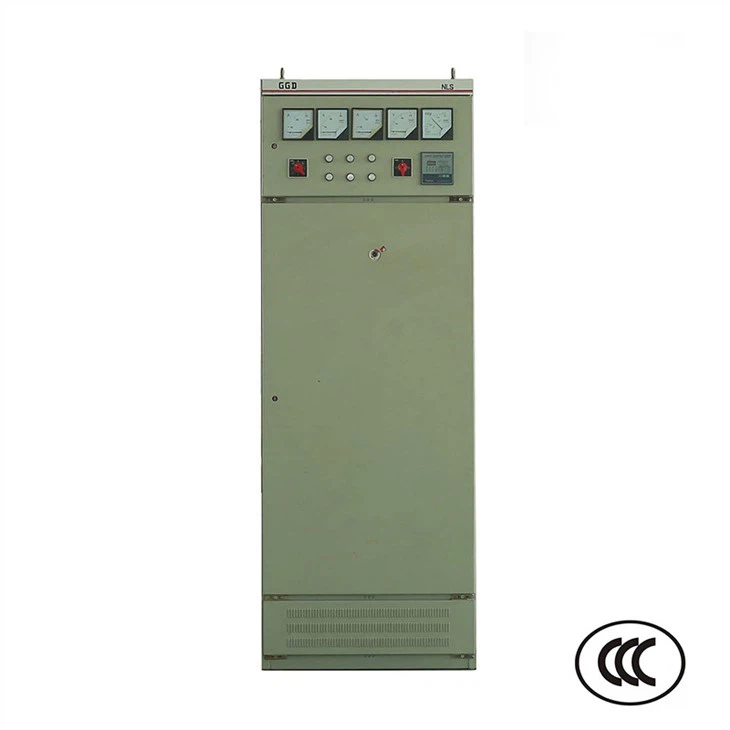

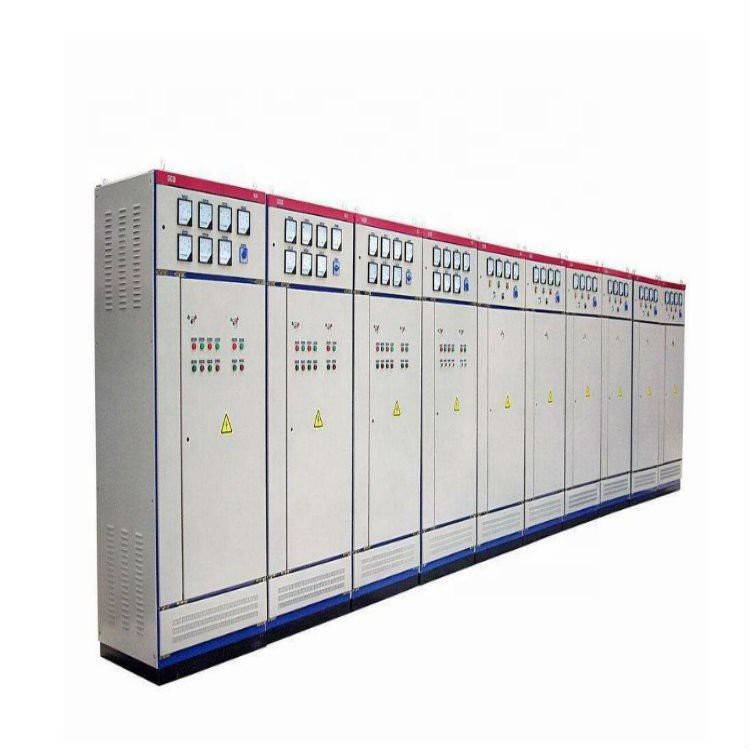

GGD

GGD（）

FACTORY

production line1

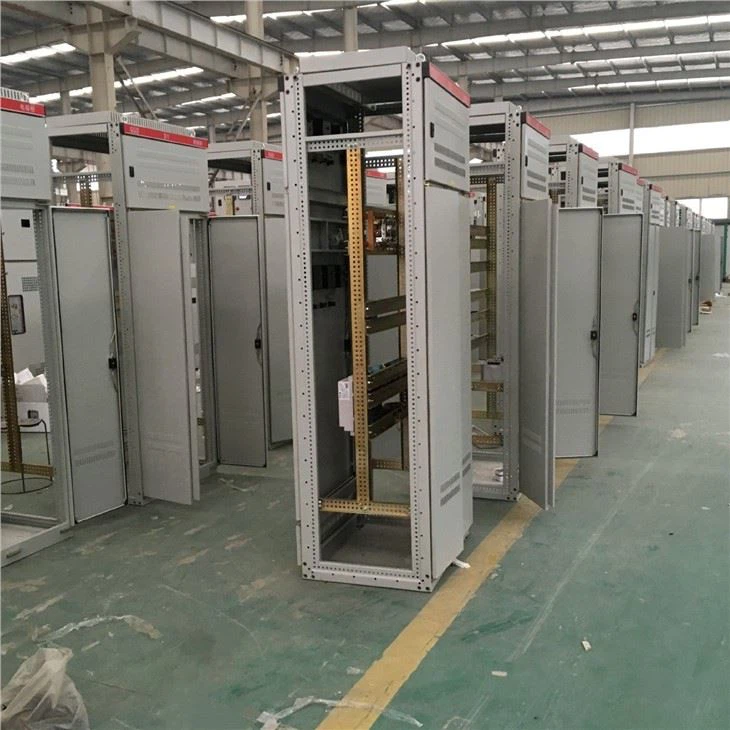

workshop

CERTIFICATE

CQC

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
