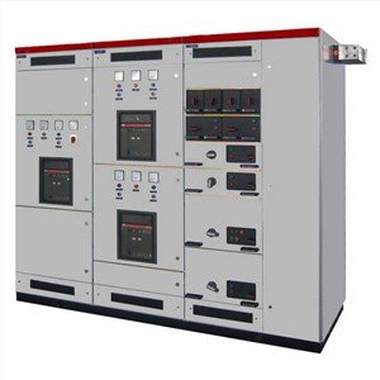

Switchgear For Power Distribution
XGN series AC enclosed metal switchgear (50HZ.10kV) is suitable for no-load and short-circuit and closed short-circuit currents. The utility model is provided with a manual switch and an electric spring mechanism for operating a load switch, a grounding switch and an isolating switch are matched...
Description
XGN series AC enclosed metal switchgear (50HZ.10kV) is suitable for no-load and short-circuit and closed short-circuit currents. The utility model is provided with a manual switch and an electric spring mechanism for operating a load switch, a grounding switch and an isolating switch are matched with the manual operating mechanism.
Main technical parameters | ||
Rated voltage | kV | 3.6 7.2 12 |
Rated current | A | 630/4000 |
Rated short circuit breaking current | kA | 16 20 31.5 40 |
Rated short circuit closing current (peak) | kA | 40 50 80 100 |
Rated withstand current (peak) | kA | 40 50 80 100 |
Rated short time withstand current | kA | 16 20 31.5 40 |
Rated short circuit duration | S | 4 |
Protection grade | ..... | IP2X |
Main connection type | ..... | Single bus break and single bus bypass |
Operating mechanism mode | ..... | Electromagnetic, spring energy storage |
Overall dimensions (width * depth * height) | mm | 1100*1200*2650 |
Weight | kg | 1000 |
Service condition
Ambient temperature: -15°C~+40°C;
Altitude: ≤1000m;
Humidity: daily average does not exceed 95%, daily average water vapor does not exceed 2.2kPa;
The monthly average value does not exceed 90%, and the monthly average value of water vapor pressure does not exceed 1.8kPa.
Seismic strength: not more than Ms8.
There is no place polluted by corrosive or flammable gas.
Factory showing room
Product qualification
Packing & Delivery
We accept OEM. Payment terms are usually T/T, other payment methods are based on communication. The delivery time is usually 10-25 days.
Thank you for choosing Fengyuan Power as your reliable partner. Please believe that we will create a better future together!
