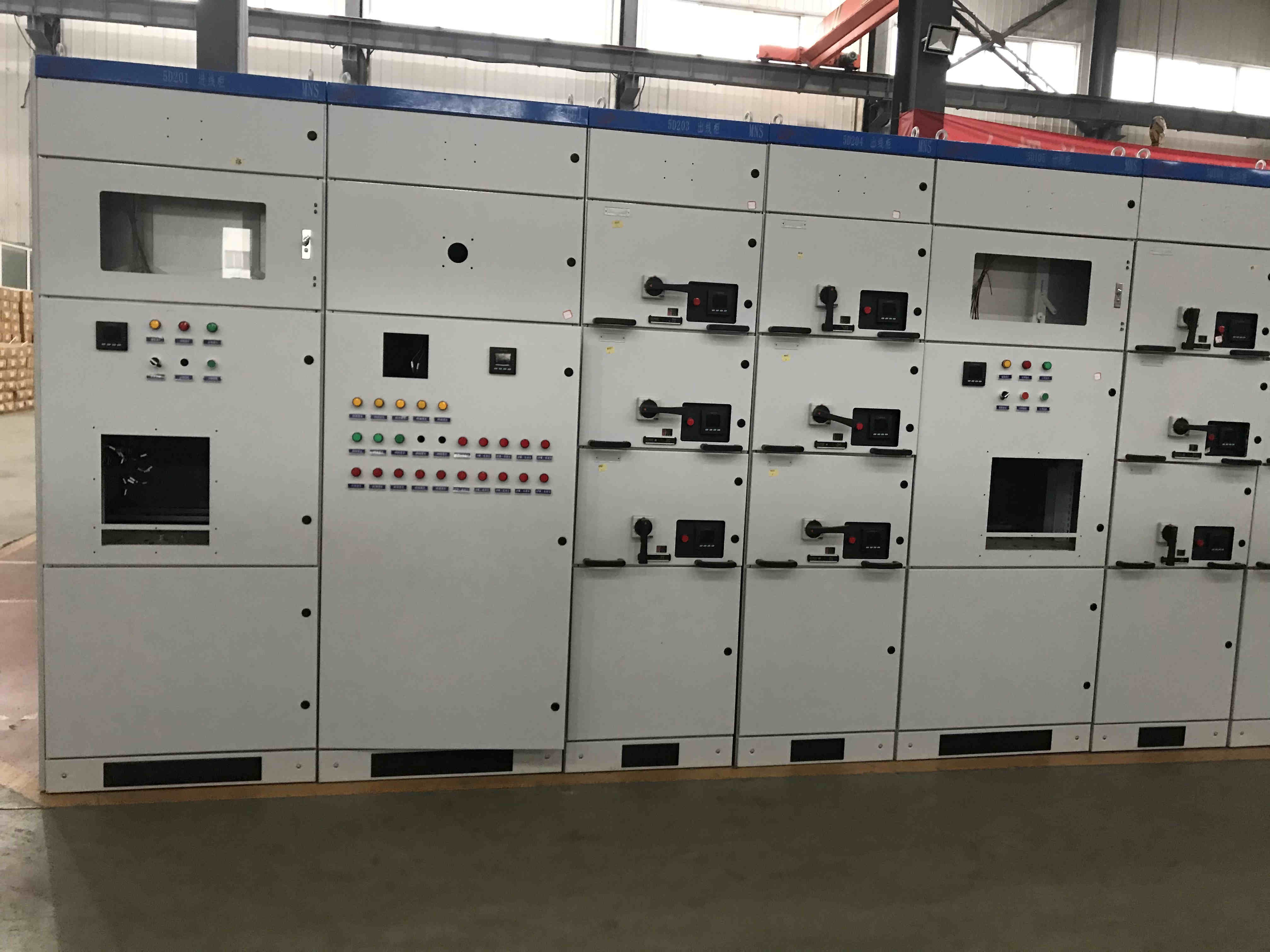

High Voltage Switchgear Panel

Description

The high-voltage switchgear panel is a complete power distribution equipment for 3.6~24kV, three-phase AC50/60Hz, single bus and single bus section system. Mainly used for power transmission of small and medium generators in power plants; power reception and transmission of power distribution in factories, mines and enterprises and substations in power systems, as well as the start of large high-voltage motors, to control, protect and monitor systems. This switchgear complies with IEC298 and GB3906-91 standards. In addition, it can be used with VS1 vacuum circuit breakers, and can also be used with ABB's VD4, Siemens' ZN65A, Siemens 3AH5, and GE's VB2. Power distribution equipment with good performance.

In order to meet the requirements of wall-mounted installation and front-end maintenance, the switch cabinet is equipped with a special current transformer so that the operator can perform maintenance and inspection in front of the cabinet.

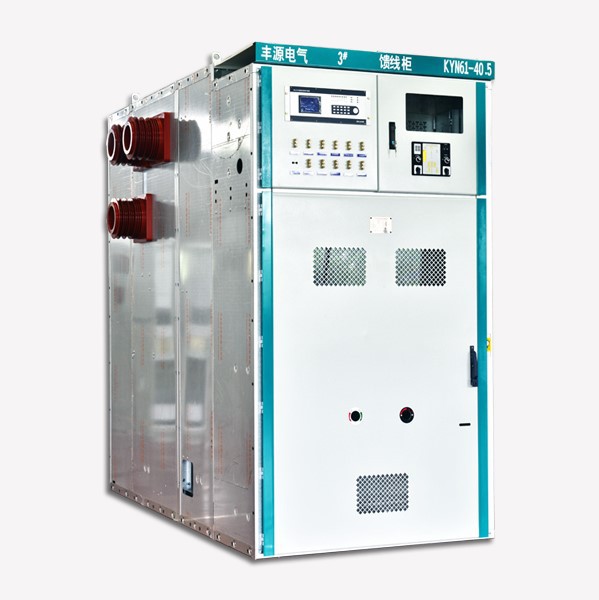

KYN61-40.5 removable AC metal-clad switchgear applies to 40.5kV, 3 phase, AC and 50/60Hz electrical power network for receiving and distributing power energy and also for control, monitor and protect ion. It is applicable in general power system and occasions with frequent operation. The product conforms to GB3906: 3~35kV AC Metal Enclosed Switchgear, IEC60694 & GB/T11022: The common technical clauses of HV Switchgear and controlgear Standard, DL/T404-1997: Order Technical term of Indoor AC HV Switchgear and IEC62271-200 1~52kV AC Metal Enclosed Switchgear and controlgear standard.

KYN61-40.5 switchgear is three phase AC 50 Hz,rated voltage of 40.5 KV indoor power distribution equipment.As power plants ,substations and industrial distruction of electric energy only ,and has a circuit implementation of control,protection and monitoring function .

Model	KYN61-40.5
Rated voltage	40.5
Frequency	50HZ
Rated Current	1250A/1600A/2000A
IP Grade	IP3X
Environment Temperature	-10 C~+40 C
Accessories	specification
Maintenance Instruction	Must be cleaned and put in a dry place

Environmental Conditions

1) Suitable Temperature: -10℃ ~ +40℃, Daily average temperature:≤35℃.

2) Suitable Altitude: ≤1000m

3) Relative Humidity: Daily mean ≤95%, monthly mean ≤90%

4) Gradation of Earthquake Damage: ≤ Level 8

Applicable occasions should be free from corrosives, inflammables and vapor.

Structure Description:

Switchgear according G83906 and IEC298 standards and design,And can be removed from the cabinet as a whole unit (trolley )components .
Cabinet structure are made of aluminum deposited zine plate or galvanized sheet assembled with both connection ,separate circuit breaker switchgear roon ,bus room ,cable room and instrument room,All metal components are grounded ,each compartment of the main circuit .system have separate pressure release channel in the cable compartment can be set 10*60mm ground bus .

Main characteristics:

1.The use of assembled cabinet structure ,circuit breaker handcart floorstanding structure ,
Samall size:
2.Optional: The company vacuum breaker VW1-40.5,xiamen huadian vacumm breaker VEP-40.5 ,similar circuit breaker are interchangeable .
3.Equipped with special transport vehicles can lift ,transport vehicles amd cabinet accurate positioning ,locking and reliable
4.The main switch ,handcart ,door interlock switch between mandatory mechanical locking methods are used to meet the ‘Five Anti’ interlock function .
5.all operation can be carried out at the door closed state ,to protect the safety of the operator .
6.Cable ample room space ,can be connected to multiple cables ,and overhead outlet .
7.Shell protection grade IP3X,handcart room door open between the various compartments protection class IP2X.
8.The material can be galvanized sheet can be deposited alumimum zinc plate production .

No.	Items			Unit	Parameters
1	Rated voltage			KV	40.5
2	Rated frequency			Hz	50
3	The main busbar rated current			A	1250,1600,1200
4	Branch busbar rated current			A	630/1250/ 1600
5	Rated insulation level	Power frequency withstand voltage in 1min (Effective value)	Phase-phase, Phase-ground	KV	95
		Power frequency withstand voltage in 1min (Effective value)	Primary isolation fracture	KV	115
		Lightning Impulse Withstand Voltage (peak value)	Phase-phase, Phase-ground	KV	185
		Lightning Impulse Withstand Voltage (peak value)	Primary isolation fracture	KV	215
		Power frequency withstand voltage of auxiliary control circuit		V	2000
6	Rated short circuit breaking current			KA	25/31.5
7	Rated short circuit closing current (peak value)			KA	63/80
8	Rated short-time withstand current (4S)			KA	25/31.5
9	Rated peak withstand current			KA	63/80
10	Rated voltage of auxiliary control circuit			V	-110,-220,~220
11	Protection grade				Enclosure IP4X, IP2X When the door of the circuit breaker opens
12	Outline size (width * depth * height)			mm	1400(1200)2800(2600)2600(*includes an internal digital SF6 handcart scheme)
13	weight			kg	~2300

The Specification

Item	Unit	Data
Rated Voltage	kV	3.6,7.2,12
Rated Frequency	Hz	50
Rated Current of Circuit Breaker	A	630,1250,1600,2000,2500,3150
Rated Voltage of Switchgear	A	630,1250,1600,2000,2500,3150
Rated short-time withstand current (4s)	kA	16,20,25,31.5,40,50
Rated Peak Withstand Current (Peak Value)	kA	40,50,63,80,100,125
Rated Short-circuit Breaking Current	kA	16,20,25,31.5,40,50
Rated Short- circuit Closing Current	kA	40,50,63,80,100,125
1min Power Frequency Withstands Voltage	kV	24, 32, 42
Lightning Withstands Voltage , Rated Insulation Leve	kV	40, 60, 75
Protection Grade	Shell is IP4X, Shell is IP2X when compartment and circuit breaker doors are open
