High Voltage Electrical Switchgear

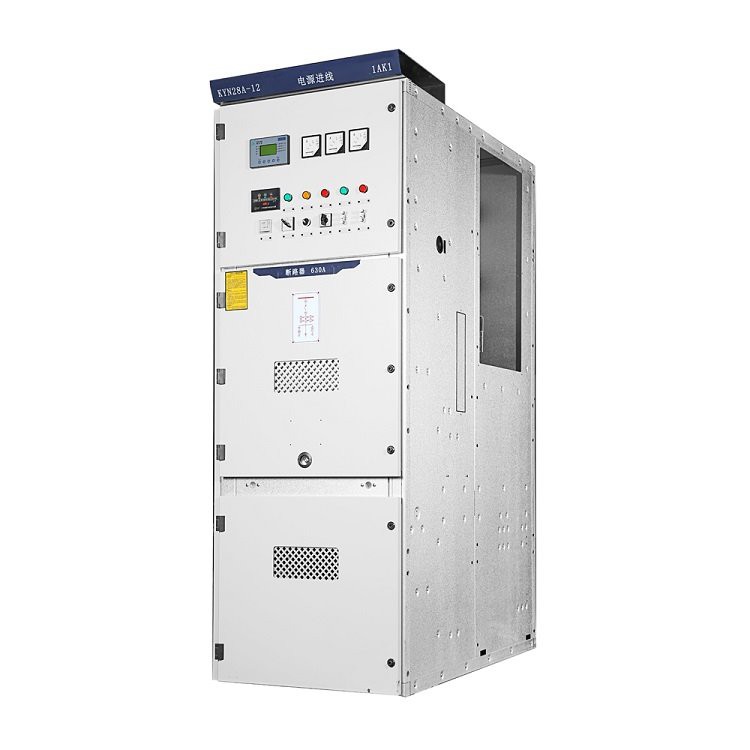

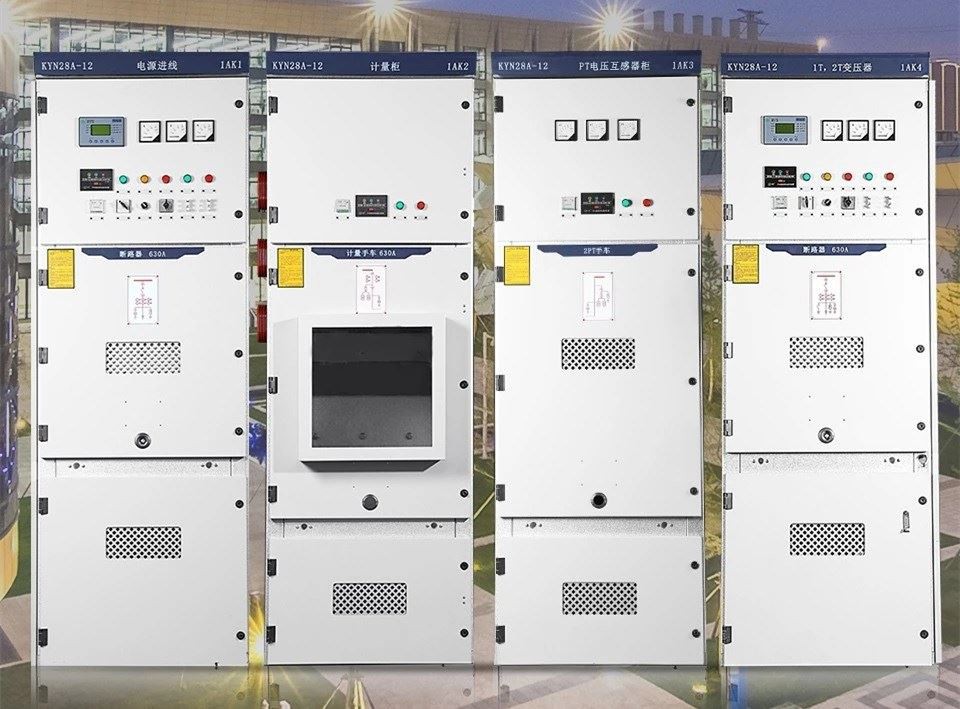

KYN28-12 high voltage electrical switchgear is a three-phase AC 50Hz, rated voltage 12kV indoor complete power distribution device. As power plants, substations and industrial and mining enterprises to receive and distribute electrical energy, it also has the functions of controlling, protecting and detecting circuits.

KYN28-12 type armored removable AC metal-enclosed switchgear normal operating conditions:

1. Ambient temperature: the highest temperature +40℃, the lowest temperature -15℃ (under special process, it can reach -45℃);

2. Environmental humidity: daily average ≤95%, monthly average ≤90%;

3. Altitude: below 1000m;

4. Earthquake resistance; earthquake intensity does not exceed 8 degrees;

5. The surrounding air should not contain corrosive or flammable gas, water vapor and other obvious pollution;

6. There is no serious pollution and frequent severe vibration, and the severity design meets the requirements of category 1 under severe conditions;

7. When used under normal environmental conditions exceeding GB3906, the user and the manufacturer shall negotiate.

Note: ①The electric heater should be connected when the relative humidity is greater than 70%.

② Where the altitude exceeds 1000m, it shall be handled in accordance with JB/Z102-71.

Certifications

1).Payment: 1) 30% in advance, 70% balance against copy of B/L

2).Port of loading: Qingdao port or Lianyungang port

3).Discounts: offered based on order quantities

4).Delivery time: 10-30 days according to order quantities

5).Package: wooden box and wooden pallet and can be csutomized

Our advantage!

1. One-stop service

2. International production standards

3. The best price in all markets.

4. Strong after-sale protection

5. Strong teamwork ability

6. With 15 years of rich experience

Send your request to us,we will contact you as soon as possible.
