KYN28A-12 6.5KV Power Distribution Cabinet

Name: China Customized KYN28A-12 6.5KV Power Distribution Cabinet Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 190759940

KYN28A-12 is a relatively common high-voltage switchgear at present in China with full name- indoor metal armored removable switchgear. Its rated voltage is 3.6kV~12kV. The equipped vacuum circuit breaker is in the middle of the switch cabinet, that is, the circuit breaker is located in the middle of the front cabinet of the switchgear, so the lower space can be saved for the expansion of other schemes or used as a cable room.The switchgear meets IEC,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker,　it can also be used with VD4 from ABB, 3AH5 from Siemens domestic ZN65A, and VB2 from GE,　etc.,it is truly a power distribution device with good performance.

Send Inquiry

Description

KYN28A-12 6.5KV power distribution cabinet

The KYN28A-12 indoor AC metal-clad withdrawable switchgear is a complete set of power distribution devices of 3.6kV ~ 12kV three-phase AC 50Hz single bus or single bus sectional system.
KYN28A-12 is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.
KYN28A-12 complies with IEC62271 and GB3906 standards and comes out with a variety of protection functions,including preventing pulling or pushing circuit breaker handcart in load mode,preventing turning on/off the circuit breaker by mistake, preventing turning on the circuit breaker when the grounding switch is in ON position, preventing entering the energized cubicle by mistake, and preventing turning on the interlock function of the grounding switch by mistake in energized state.

Product Features:

1. Safe and reliable: the compartments in the cabinet are all independent small compartments separated from each other; perfect "five prevention" interlocking function, reliably preventing misoperation and erroneous entry into the live interval; quick closing grounding switch to achieve reliable protective grounding. 2. Flexible solutions: The switch cabinet has a complete set of solutions, which can flexibly form various system solutions to meet customer requirements; according to the application environment and special requirements, it can also provide high altitude series products, double bus series and various non-standard solutions. 3. Strong practicability: the cabinet shell has high sealing strength to prevent the equipment from being invaded by sundries and insects.

Application Channels:

Mainly used in power plants, substations, transformation and distribution centers of industrial and mining enterprises, and large-scale high-voltage motor starting equipment, etc., for receiving and distributing electric energy, and for controlling, protecting and monitoring circuits.

Conditions of Use:

1.The highest ambient temperature does not exceed +40℃, and the lowest does not exceed -10℃. 2.Environmental humidity: the daily average relative humidity is ≤95%, and the monthly average relative humidity is ≤90%. 3.The altitude does not exceed 1000m. 4.The earthquake intensity does not exceed 8 degrees.

Main technical parameters
Rated voltage	.....................................	kV	3.6、7.2、12
Rated frequency	.....................................	Hz	50
Rated current of circuit breaker	.....................................	A	630/4000
Rated current of switchgear	.....................................	A	630/4000
Rated short-time withstand current (4S)	.....................................	kA	20、25、31.5、40
Rated peak withstand current (peak)	.....................................	kA	50、63、80、100
Rated short-circuit breaking current	.....................................	kA	20、25、31.5、40
Rated insulation level 1min power frequency withstand voltage	Pole-to-pole, pole-to- ground	kV	24、32、42
	Between open contacts	kV	24、32、48
Lightning impulse withstand voltage (peak)	Pole-to-pole, pole-to- ground	kV	40、60、75
Lightning impulse withstand voltage (peak)	Between open contacts	kV	46、70、85
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened

KYN28-12 (5)

KYN28A-12 (3)

KYN28A-12 (4)

KYN28A-12 (8)

KYN28A-12 (9)

(2)

PRODUCTION LINE

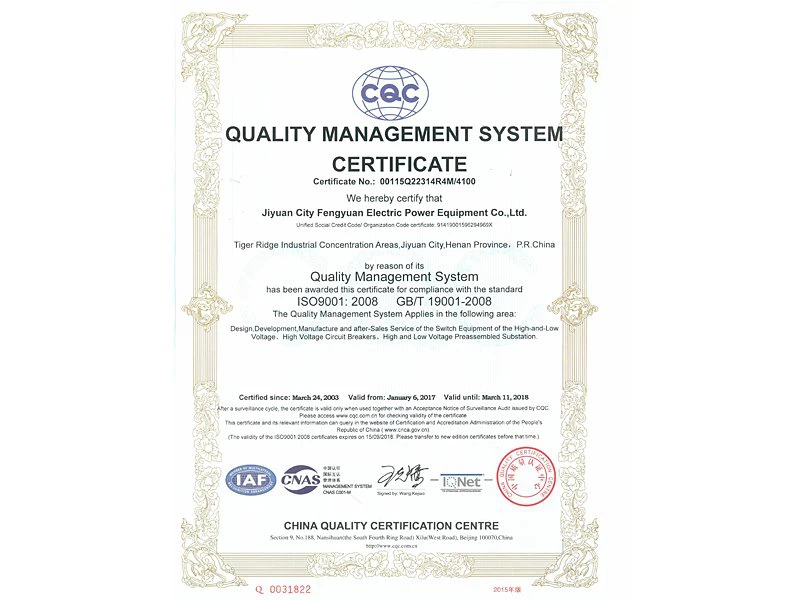

CERTIFICATE
