10kv High Voltage Switch Cabinet

KYN series high voltage switch cabinet is suitable for power receiving and distribution in 3.6-12Kv three-phase AC 50Hz single bus and single bus section system. It has the functions of controlling, protecting and monitoring circuits.

Conditions of Use

1. Ambient temperature: upper limit +40°C and lower limit -10°C;

2. The altitude does not exceed 1000 meters;

3. Air relative humidity: daily average ≤95%, monthly average ≤90%;

4. The seismic fissure does not exceed 8 degrees;

5. Places without conductive dust, corrosive gas and water vapor;

6. Where there is no fire, explosion hazard and severe vibration.

Note: ①When the above-mentioned normal use conditions are exceeded, the user can negotiate with our company to determine the allowable scope and technical measures.

②The electric heater should be switched on when the relative humidity is greater than 70%

③ Where the altitude exceeds 1000 meters, it shall be handled in accordance with the regulations of JB/Z102-72.

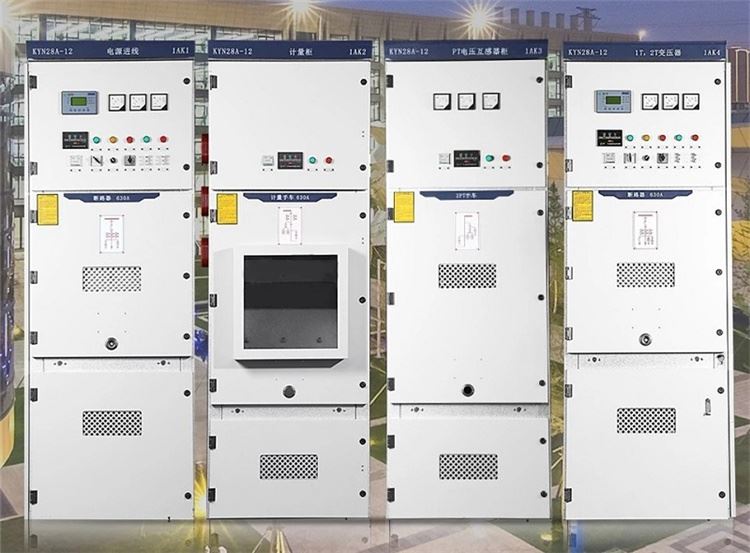

high and low voltage switch cabinet

Main technical parameters
Rated voltage	.....................................	kV	3.6,7.2,12
Rated frequency	.....................................	Hz	50
Rated current of circuit breaker	.....................................	A	630/4000
Rated current of switchgear	.....................................	A	630/4000
Rated short-time withstand current (4S)	.....................................	kA	20,25,31.5,40
Rated peak withstand current (peak)	.....................................	kA	50,63,80,100
Rated short-circuit breaking current	.....................................	kA	20,25,31.5,40
Rated insulation level 1min power frequency withstand voltage	Pole-to-pole, pole-to- ground	kV	24,32,42
	Between open contacts	kV	24,32,48
Lightning impulse withstand voltage (peak)	Pole-to-pole, pole-to- ground	kV	40,60,75
Lightning impulse withstand voltage (peak)	Between open contacts	kV	46,70,85
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened
