24KV Metal Clad Switchgear Panel
KYN28A-24 metal clad switchgear panel is suitable for three-phase AC 50Hz, 24kV single busbar and single busbar segmented power system, used to receive and distribute electric energy, and control, protect and monitor the circuit. The equipment fully meets the requirements of "five...
Description
KYN28A-24 metal clad switchgear panel is suitable for three-phase AC 50Hz, 24kV single busbar and single busbar segmented power system, used to receive and distribute electric energy, and control, protect and monitor the circuit. The equipment fully meets the requirements of "five electrical preventions", and has passed the internal fault arc test and condensation pollution test.
Application:
It is widely used in power plants, small and medium-sized generators, power distribution in industrial and mining enterprises, and secondary substations in electrical systems for power reception, power transmission, and large-scale high-voltage motor starting, etc., for control, protection, and monitoring purposes.
Main feature:

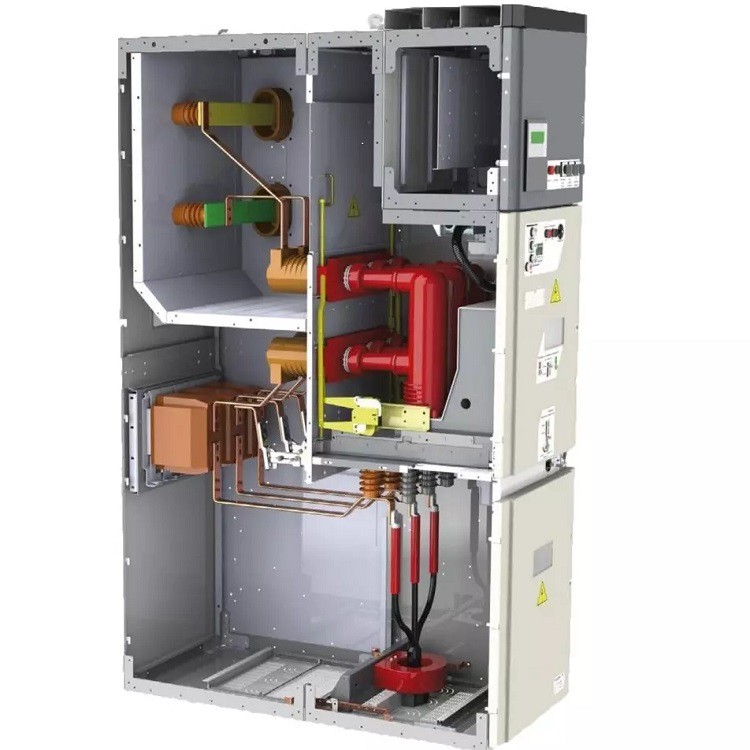

The overall mechanism of KYN28A-24 metal clad switchgear panel is composed of two parts: the cabinet body and the central withdrawable part. The cabinet is divided into five independent compartments with partitions, the protection level of the shell is IP4X, and the protection level between each compartment is IP2X. The equipment is equipped with a handcart room VS1 vacuum circuit breaker or a fixed load switch, which can be installed, debugged and maintained from the front. Therefore, it can form a back-to-back double arrangement and be installed against the wall, which improves the safety and flexibility of the switchgear and reduces the floor space.
Technical data:
Rated voltage: 24kV
Rated frequency: 50Hz
Rated current: 630, 1250, 1600, 2000, 2500, 3150, 4000A
Rated insulation level: 1min power frequency withstand voltage 65kV; lightning impulse withstand voltage 95kV
Rated short-circuit breaking current: 20, 25, 31.5kA
Rated short-circuit making current (peak value): 50, 63, 80kA
Rated short circuit duration: 3s, 4s
The following information should be provided when ordering:
Primary system diagram and floor plan
Secondary schematic diagram, terminal arrangement diagram, if there is no terminal arrangement diagram, it should be arranged according to the manufacturer's terminal arrangement
Model, specification and quantity of electrical components of switchgear
Summary of electrical equipment
When bus bridges are required (bus bridge between two columns and bus bridge between wall cabinets), span and height dimensions need to be provided
The use of switchgear under special environmental conditions should be specified when ordering
If there are other special options, please specify when ordering
