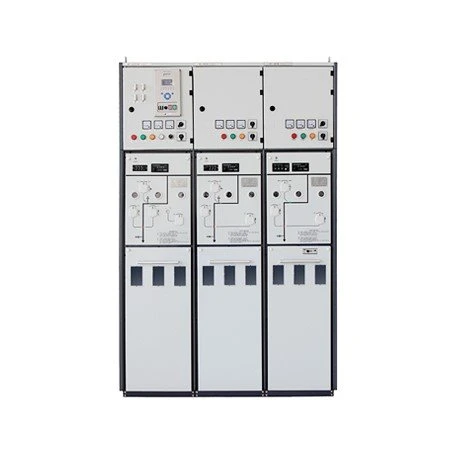

Medium Voltage Switchgear
FYG-12 solid insulated switchgear is suitable for medium voltage power distribution system, with a rated current of 630A / 1250A. It is more reliable than the SF6 ring host, and is more suitable for the wide application of GB standards and IEC standards. Service environment: a) Air temperature:...
Description
FYG-12 solid insulated switchgear is suitable for medium voltage power distribution system, with a rated current of 630A / 1250A. It is more reliable than the SF6 ring host, and is more suitable for the wide application of GB standards and IEC standards.
Service environment:
a) Air temperature: highest temperature: +40℃; lowest temperature: -25℃
b) Humidity: monthly average humidity 95%; daily average humidity 90%.
c) Altitude: Maximum installation height: 2500m
d) There is obviously no ambient air polluted by corrosive and combustible gases, vapors, etc.
e) No frequent violent shaking
Technical data:
Description | Unit | |||
Rated voltage | kV | 12 | 12 | 12 |
Power frequency withstand voltage phase to phase/earth | kV | 42 | 42 | 42 |
Power frequency withstand voltage Between open contacts | kV | 48 | 48 | 48 |
Impulse withstand voltage phase to phase/earth | kV | 75 | 75 | 75 |
Impulse withstand voltage Between open contacts | kV | 85 | 85 | 85 |
Rated frequency | Hz | 50 | 50 | 50 |
Rated current | A | 630 | 630 | |
Rated short-time withstand current (4s) | kA | 20/25 | 20/25 | |
Rated peak withstand current | kA | 50/63 | 50/63 | |
Rated active load breaking current | A | 630 | ||
Rated closed loop breaking current | A | 630 | ||
Mechanical lifetime | Ops | 10000 | 10000 | 10000 |
Our advantage:
One-stop purchasing service
Many professional industrial electrical experts can provide you with perfect procurement services.
Customized product support
Menu-driven procurement, multiple solution options.
Excellent manufacturing
Standardized management, template output.
Logistics
Efficient logistics, expert procedures, comprehensive insurance policies.
Post-retail concept
No service is the best service. It requires strict quality control and 100% inspection.
Technology development
The technical team continues to innovate technology to improve the power system.
Certifications:
Packing & Delivery
We can deliver the goods by air or sea. We can provide you with high-quality transportation companies to facilitate your choice. Our delivery date is usually 15 to 20 days. If you need special custom settings, please communicate with us to confirm.
