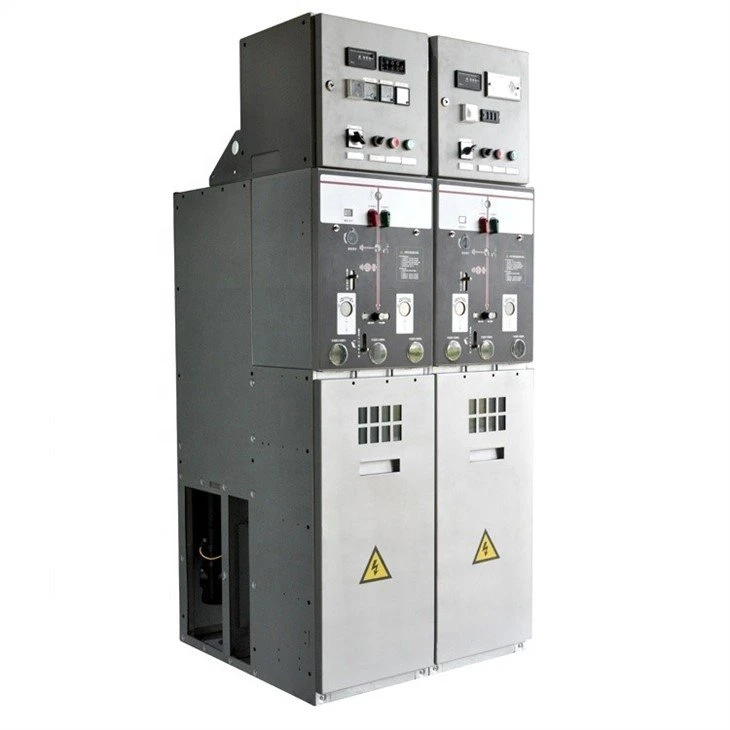

Low Voltage Solid Insulated Switchgear

Name: China Customized Low Voltage Solid Insulated Switchgear Manufacturers, Suppliers - FENGYUAN
Brand: Fengyuan Power
SKU: 136421234

Solid insulated switchgear is suitable for medium and low voltage power distribution systems, with a rated current of 630A / 1250A. It is more reliable than the SF6 ring host, and is more suitable for the wide application of GB standards and IEC standards. Feature 1.Safety All live parts are...

Send Inquiry

Description

Feature

1.Safety

All live parts are sealed or embedded in epoxy resin and silicon rubber, completely insulated, fully enclosed structure, safety protection grade: IP67.

Enhanced phase separation design, independent phase insulation, to avoid phase-to-phase failure.

The working position of each phase switch can be observed independently, which improves the safety of operation.

2. Multi-environment applications

It is suitable for low temperature areas, high altitude areas, high humidity areas, high corrosion areas, low-lying areas and places where explosions are prohibited.

3. Flexibility

Standard modular design, convenient for circuit expansion, modification and replacement.

It is feasible to replace any unit under any circumstances and according to user needs.

The smaller size makes it easier to move, transport or replace.

4. Environmental protection

Use epoxy resin instead of SF6.

Technical data:

Description	Unit
Rated voltage	kV	12	12	12
Power frequency withstand voltage phase to phase/earth	kV	42	42	42
Power frequency withstand voltage Between open contacts	kV	48	48	48
Impulse withstand voltage phase to phase/earth	kV	75	75	75
Impulse withstand voltage Between open contacts	kV	85	85	85
Rated frequency	Hz	50	50	50
Rated current	A	630		630
Rated short-time withstand current (4s)	kA	20/25		20/25
Rated peak withstand current	kA	50/63		50/63
Rated active load breaking current	A	630
Rated closed loop breaking current	A	630
Mechanical lifetime	Ops	10000	10000	10000

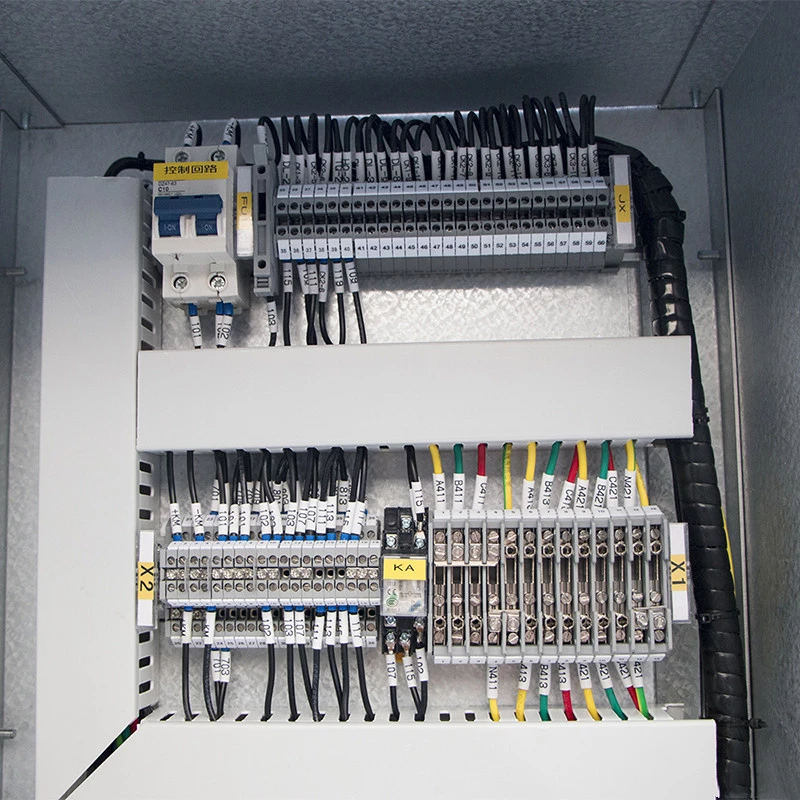

Low Voltage Solid Insulated Switchgear Low Voltage Switchgear

Certifications:

Metal Enclosed Switchgear

Low Voltage Withdrawable Switchgear

Packing & Delivery

We can deliver the goods by air or sea. We can provide you with high-quality transportation companies to facilitate your choice. Our delivery date is usually 15 to 20 days. If you need special custom settings, please communicate with us to confirm.
