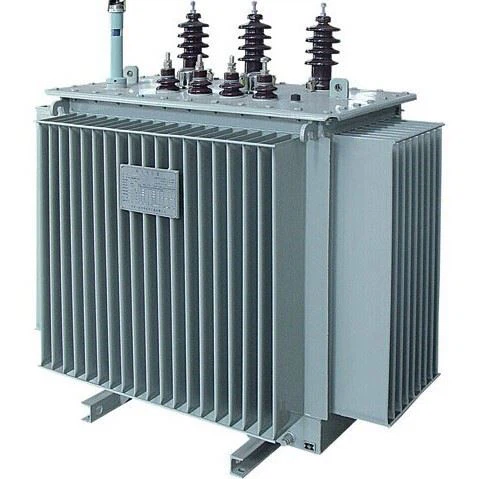

H61 22KV Amorphous Core Transformers

Traduction pour : Transfo H61 20KV 160kVA B2 H61 Transformer 15(20)kV 160kVA B2 Three-phase MV / LV distribution transformer with MV and LV windings in wound copper power P = 160KVA - Compliance: NFC 52 100 - 52 112 and 52 113 standard or equivalent in substance - Natural cooling: ONAN - MV voltage adjustment: by switch off +/- 5% in five (5) positions - Type: on post H61 - Nominal power: 160KVA - Primary rated voltage: 20,000V ± 5% - Secondary voltage: 410V off-load between phases / 240V between phase and neutral - Frequency: 50Hz - Short-circuit voltage: 4% - No-load loss less than or equal to 300W - Load loss less than or equal to 2000W - Coupling: Dyn11 with output neutral - MV and LV crossings: in porcelain

Description

H61



Traduction pour : Transfo H61 20KV 160kVA  B2


H61 Transformer 15(20)kV 160kVA B2


Three-phase MV / LV distribution transformer with MV and LV windings in wound copper power P = 160KVA

- Compliance: NFC 52 100 - 52 112 and 52 113 standard or equivalent in substance

- Natural cooling: ONAN

- MV voltage adjustment: by switch off +/- 5% in five (5) positions

- Type: on post H61

- Nominal power: 160KVA

- Primary rated voltage: 20,000V ± 5%

- Secondary voltage: 410V off-load between phases / 240V between phase and neutral

- Frequency: 50Hz

- Short-circuit voltage: 4%

- No-load loss less than or equal to 300W

- Load loss less than or equal to 2000W

- Coupling: Dyn11 with output neutral

- MV and LV crossings: in porcelain


Welcome to inquiry


Contact information:


Jiyuan Fengyuan Electrical Equipment Co., Ltd


Sales Department


Contact person:Mr Charles Du


E-mail:fengyuan800@outlook.com


Mobile:+8618639199897(Available for whatsapp,wechat,skype)


Add:Huling industrial zone,jiyuancity,henan province,China


TEL:+86-0391-2180800


FAX:+86-0391-2180818





Hot Tags: h61 22kv amorphous core transformers, China, manufacturers, suppliers, customized, Energy Efficient distribution Transformer, High Efficiency Distribution Transformer, Liquid Immersed Transformer, Single phase immersion oil transformer, Outdoor distribution transformers, 25kVA single phase transformer
