H61 10KV Pad Mounted Transformer

three phase oil immersed transformer H59 series oil immersed transformer implement the National Standard GB1094 Power Transformer and GB / T6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements, and are recommended as the major equipment products for the national urban and rural power grid construction and retrofit by the State Economic and Trade Commission. H59 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.

Send Inquiry

Description

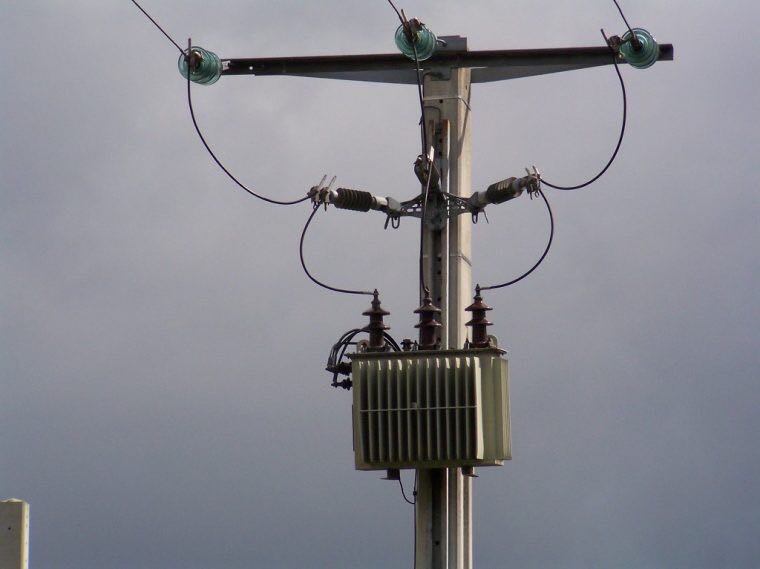

H59

H59 OIL TRANSFORMER

oil immersed (2)

oil immersed transformer (8)

oil immersed transformer

(4)

Main Technical Parameters for H59 Series three-phase full-sealed non-excitaiton-tap-changing distribbution transformer
Rated Power (kva)	High Voltage (kv)	H.V.Tap range	Low Voltage (kv)	Connection symbol	Short Circuit Impendence (%)	No-load loss(W)			On-load loss(W)			No load current (%)
Rated Power (kva)	High Voltage (kv)	H.V.Tap range	Low Voltage (kv)	Connection symbol	Short Circuit Impendence (%)	H59	H60	H61	H59	H60	H61	No load current (%)
30	22	±5% ±2x2.5%	0.4	Dyn11 Yyn0	4	130	110	100	600	600	600	2.1
50						170	150	130	870	870	870	2
63						200	180	150	1040	1040	1040	1.9
80						250	200	180	1250	1250	1250	1.8
100						290	230	200	1500	1500	1500	1.6
125						340	270	240	1800	1800	1800	1.5
160						400	310	280	2200	2200	2200	1.4
200						480	380	340	2600	2600	2600	1.2
250						560	460	400	3050	3050	3050	1.2
315						670	540	480	3650	3650	3650	1.1
400						800	650	570	4300	4300	4300	1
500						960	780	680	5150	5150	5150	1
630					4.5	1200	920	810	6200	6200	6200	0.9
800						1400	1120	980	7500	7500	7500	0.8
1000						1700	1320	1150	10300	10300	10300	0.7
1250						1950	1560	1360	12000	12000	12000	0.6
1600						2400	1880	1640	14500	14500	14500	0.6
2000					5	2830	2270	1940	17140	17140	17140	0.6
2500					5	3350	2690	2300	20260	20260	20260	0.5

The performances of model H59 22kv series full-sealed oil-immersed distribution transformes conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper.

Main Functions And Features

It adopts radiator oil tank of corrugated shteet type or expansion type. As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of transformer.
