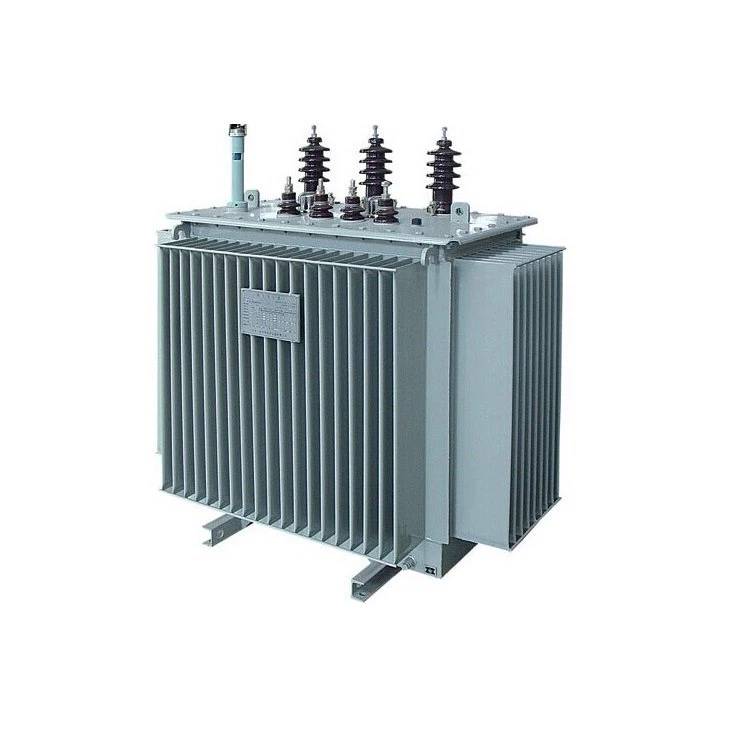

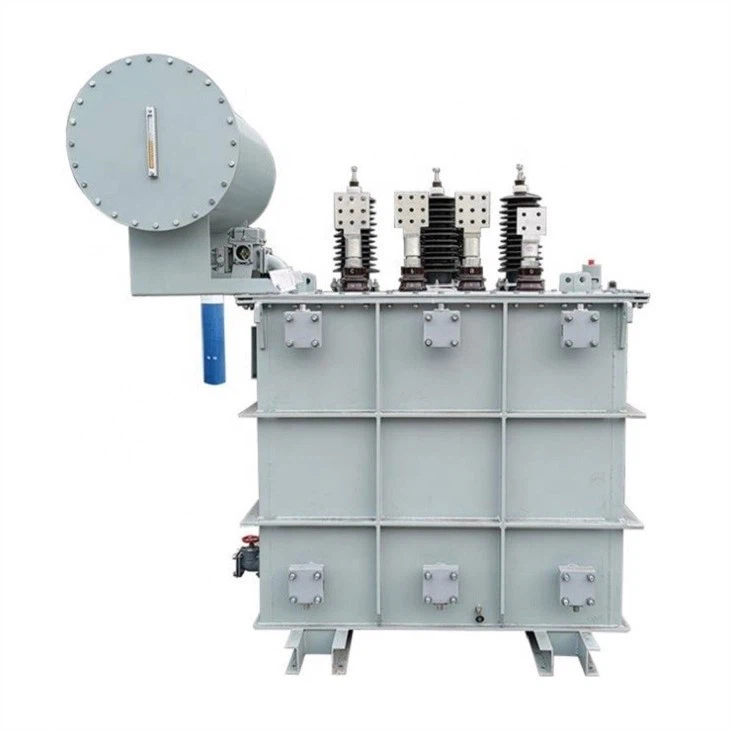

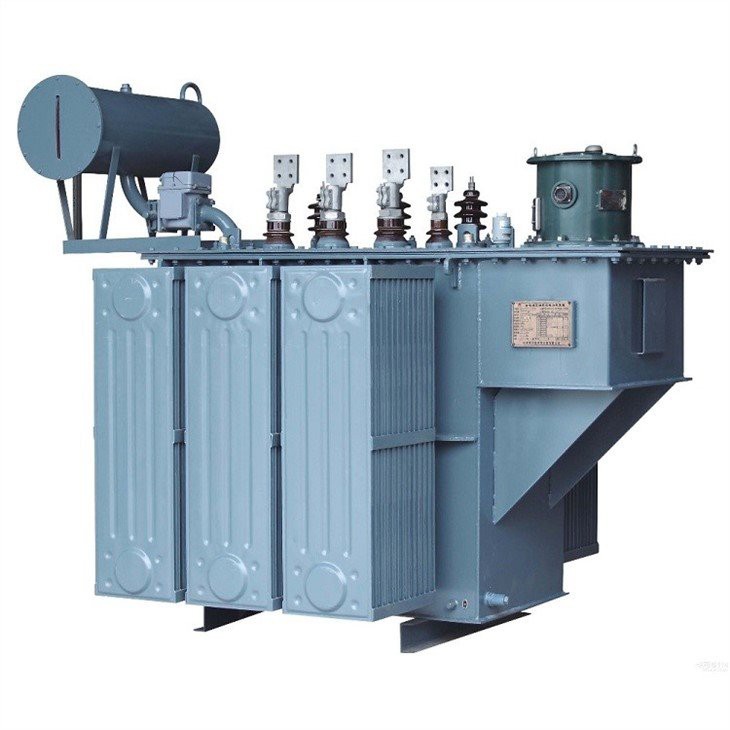

Power Transformer

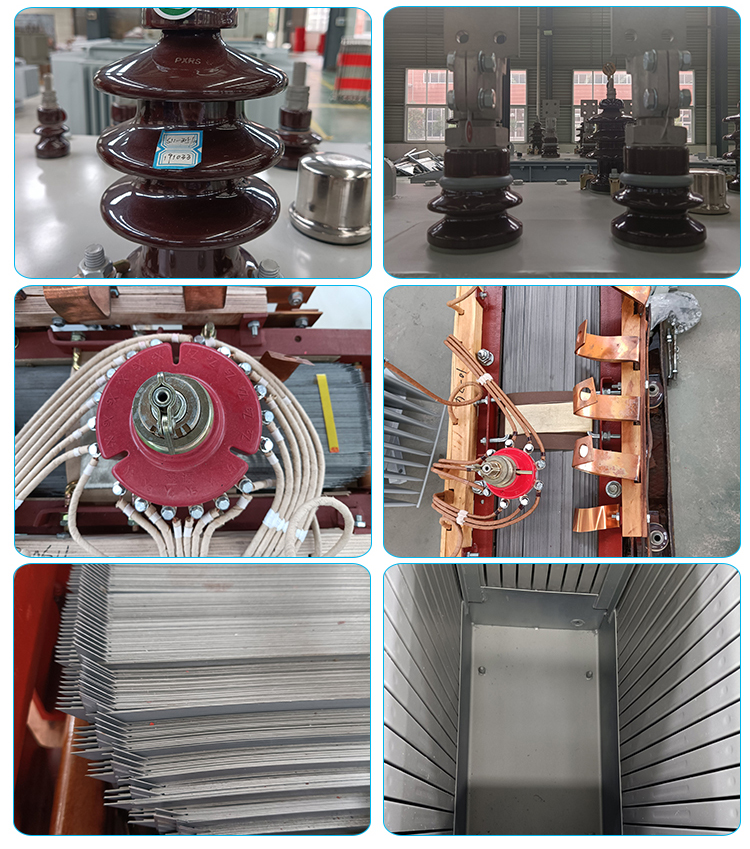

The three-phase oil-immersed power transformer adopts a new type of insulation structure with strong short-circuit resistance. The iron core is made of high-quality cold-rolled silicon steel sheet. The high-voltage winding group is composed of high-quality oxygen-free copper wire and adopts a multi-layer drum structure. All fasteners are specially treated to prevent them from loosening.

As a high-tech product promoted by the country, this product has the advantages of high efficiency and low loss. Its social benefits are significant, and it will save a lot of power consumption and operating costs.

Parameter

1. Power capacity: as a customer (our company can manufacture 10KVA to 20 MVA)

2. Voltage level: as a customer

3. Voltage regulation type: open circuit or conduction

4. Tapping range: ±2x2.5% (can be made according to buyer's requirements)

5. Frequency: 50Hz or 60Hz

6. Stage: Three stages

7. Connection symbol: Dyn11

8. Short circuit impedance: standard impedance

9. The height does not exceed 1000m, and the ambient temperature does not exceed 40OC. If these conditions cannot be met, we will adjust the parameters according to the standard.

Certifications:

Our service

Tips for quote & placing order:

The customer should specify the following items:

A circuit plan and single-line system diagram

The schematic diagram of the secondary circuit, if there is no special requirement, it should be wired according to the factory standard.

The layout of the switchgear, the floor plan of the substation.

Detailed specifications and parameters of the electrical components of each circuit;

of the surface color of the switch cabinet;

Other requirements.

Trade terms:

1. Payment method: 1) 30% advance payment, 70% of the balance of the copy of the bill of lading

2. Loading port: Qingdao Port or Lianyungang Port

3. Discount: According to the order quantity

4. Delivery time: 10-30 days according to the order quantity

5. Packing: Wooden box and wooden pallet, can be sealed

Contact us:

Contact: Charles Du

Mobile: +86 18639199897

E-mail: Fengyuan800@outlook.com

The best choice for the electrical industry! ! !

If you want to know more about our products, please contact us.

Thank you for choosing Fengyuan Power as your reliable partner. Please believe that we will create a better future together!
