Cast Resin Transformer

Description

DRY TYPE Cast Resin Transformer

The cast resin transformer is safe, flame-retardant, fire-proof, pollution-free, and can be installed directly in the load center. Maintenance-free, easy to install, low overall operating cost, low loss, good moisture resistance, can operate normally under 100% humidity, and can be put into operation without pre-drying after shutdown. Low partial discharge, low noise, strong heat dissipation, and can operate at 120% rated load under forced air cooling. Equipped with a complete temperature protection and control system, it provides a reliable guarantee for the safe operation of the transformer and has high reliability.

three phase dry type electric transformer

1.Safe, fireproof, no pollution, it can be installed directly in the load center.
2.Free maintenance, easy to install, low total operating costs.
3.With good moisture resistance, it can work normally under the100% humidity. After it stopped operating, the outage without pre-drying can be put into operation again.
4.Low loss, low partial discharge, low noise, good heat dissipation capacity. Under the forced air cooling conditions, it can run at 150% rated load.
5.The equipped perfect humidity protection & control system can provide reliable

Function Characteristics:

1. Flame retardant, non-pollution, it can be installed directly in the load center.
2.Maintenance-free, easy to be installed, low operating costs.
3.The enclosure can be of Good moisture resistance, transformer can be put into operation without pre-drying under 100% humidity in the normal operation.
4.Low loss, light weight and small volume, low noise, good dissipation of heat, it can be 150% rated load operation under forced air cooling conditions.
5.Equipped with a complete temperature protection control system to provide reliable protection for the safe operation of
transformers.
6.High reliability. The results of checking for the products that has been put into operation show that the reliability index has reached the international advanced level.

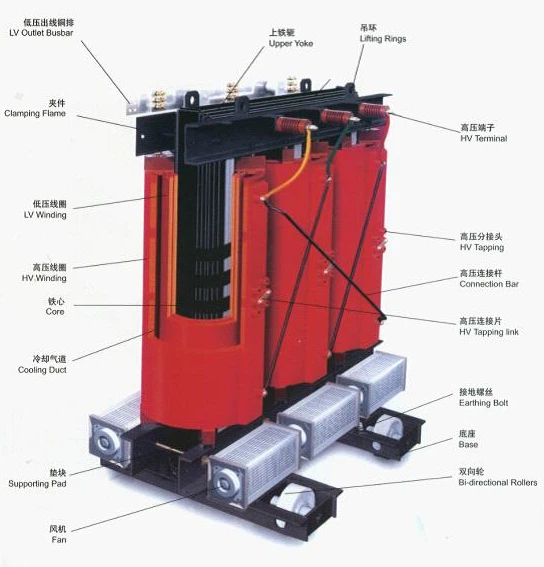

Structural Characteristics:

Cast-foil Coil: Adopting the entire section of copper foil, together with the F-class turn insulation, low voltage winding is wound by the special low-voltage foil winding machine. The foil coil resolves such understanding problems as large short-circuit stress, uneven ampere turn, poor heat dissipation, existing the winding spiral angle as well as unsteady manual welding quality due to low voltage and large current coil winding products. At the same time, the winding end in our company is treated with resin potting, solidification to make shape, moisture-proof and anti-fouling, the lead copper platoon is automatically welded by argon arc welding.

Temperature Control Device: the transformer adopts BWDK series of signal thermometer. The temperature components, are embedded in the upper half of the low-voltage coil, can automatically detect and dynamically display the work humidity of phase coils and also have the functions of over-temperature alarm and trip.

No.	Conditions		Units	Parameter Values
1	Rated Voltage		kV	10
2	Highest Operating Voltage		kV	12
3	System Neutral Point Earthing Mode			Unearthed
4	Rated Frequency		Hz	50
5	Pollution Grade			d(Ⅲ)
6	System Short Circuit Current Level (High Voltage Side)		kA	20
7	Ambient Temperature	Maximum Daily Temperature	℃	40
		Minimum Daily Temperature	℃	-25
		Maximum Daily Temperature Difference	K	25
		Average Temperature of the Hottest Month	℃	30
		Maximum Annual Average Temperature	℃	20
8	Humidity	Average Daily Relative Humidity	%	≤95
8	Humidity	Average Monthly Relative Humidity	%	≤90
9	Altitude		m	≤1000
10	Solar Radiation Intensity		W/cm2	0.1
11	Maximum Icing Thickness		mm	20
12	Maximum average wind speed: keeping in good conditions for 10min at 10m from the ground level		m/s	35
13	Earthquake Resistance	Horizontal Ground Acceleration	m/s2	2
13	Earthquake Resistance	Safety Coefficient of 3 Since Resonance Cycles		≥1.67
14	Installation Site			Indoor
Note 1: Values about temperatures in the table must be adjusted accordingly if the lowest ambient temperature is above -25℃. Note 2: Pollution grade diagram must be provided if the pollution grade is grade IV.

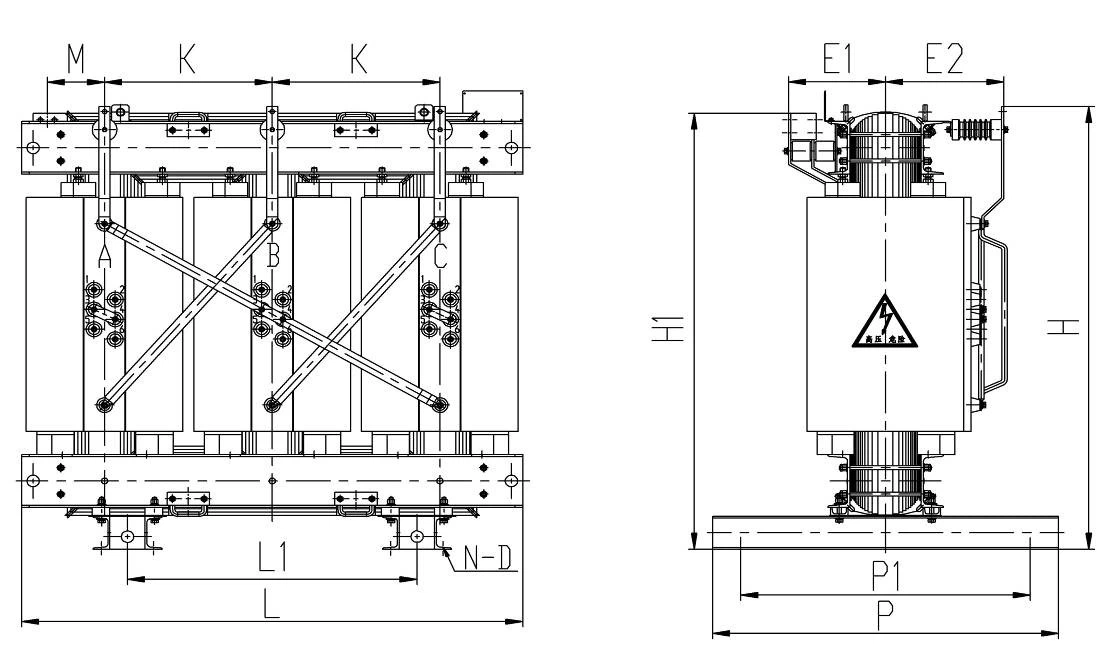

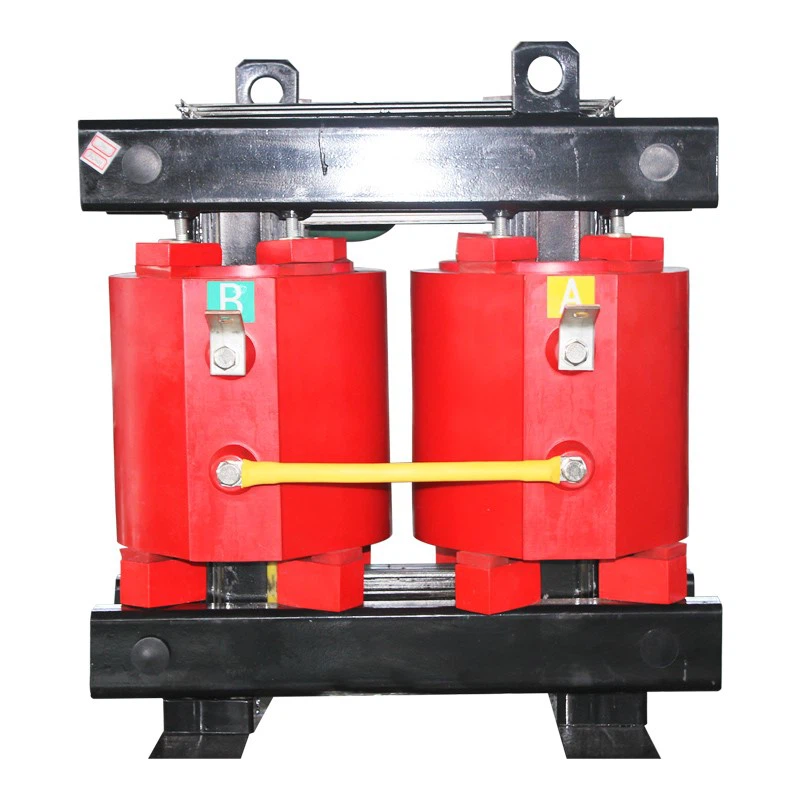

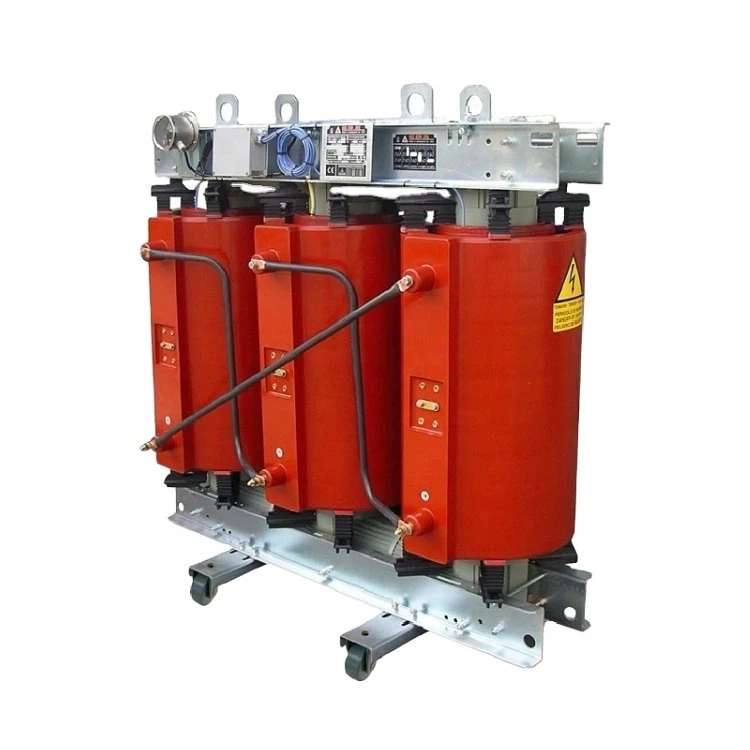

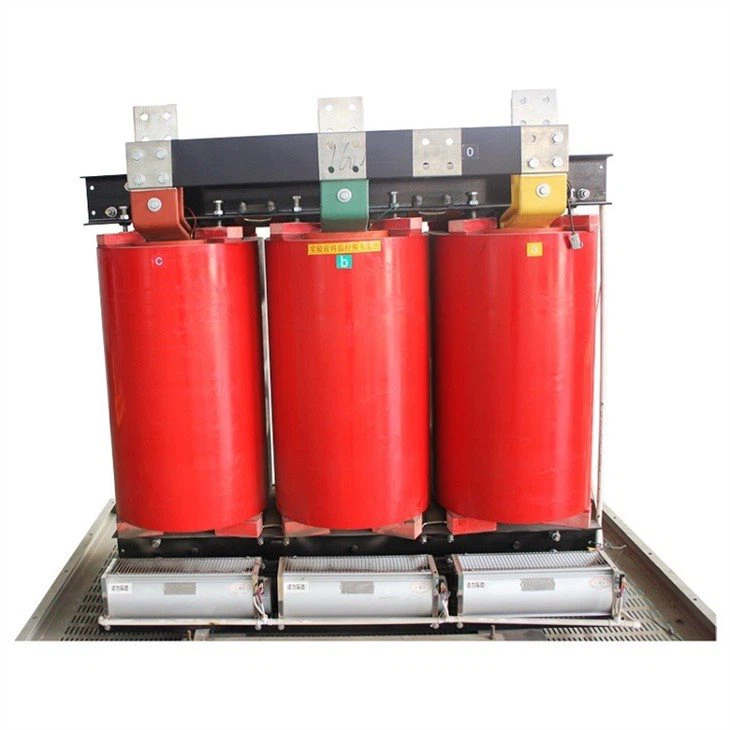

PRODUCT PHOTO

dry type transformer (4)

dry type transformer (7)

Dry-Type-Transformer (4)

dry type transformer manufacturer

Technical parameters:

Rated Capacity	Voltage Combination			Winding Connection Grade	No-load Loss (W)	Load Loss (W)	Short Circuit Impedance (%)	No-load Current (A)
Rated Capacity	High Voltage (kV)	Tapping Range Of High Voltage (%)	Low Voltage (kV)		No-load Loss (W)	Load Loss (W)	Short Circuit Impedance (%)	No-load Current (A)
50	35	±5 ±2×2.5%	0.4		450	1420		1.6
100					630	2099		1.4
160					790	2810		1.3
200					880	3320		1.2
250					990	3800		1.1
315					1170	4510		1.1
400					1370	5410		1.0
500					1620	6650		1.0
630					1860	7690	6	0.9
800					2160	9120		0.8
1000					2430	10400		0.8
1250					2830	12700		0.7
1600					3240	15400		0.6
2000					3820	18200		0.6
2500					4455	21800		0.5

Features

Low loss, low operating cost, and obvious energy saving effect.

Flame retardant, fireproof, explosion-proof, no pollution.

Good moisture-proof performance and strong heat dissipation capacity.

Low partial discharge, low noise, and maintenance-free.

High mechanical strength, strong short-circuit resistance and long life.

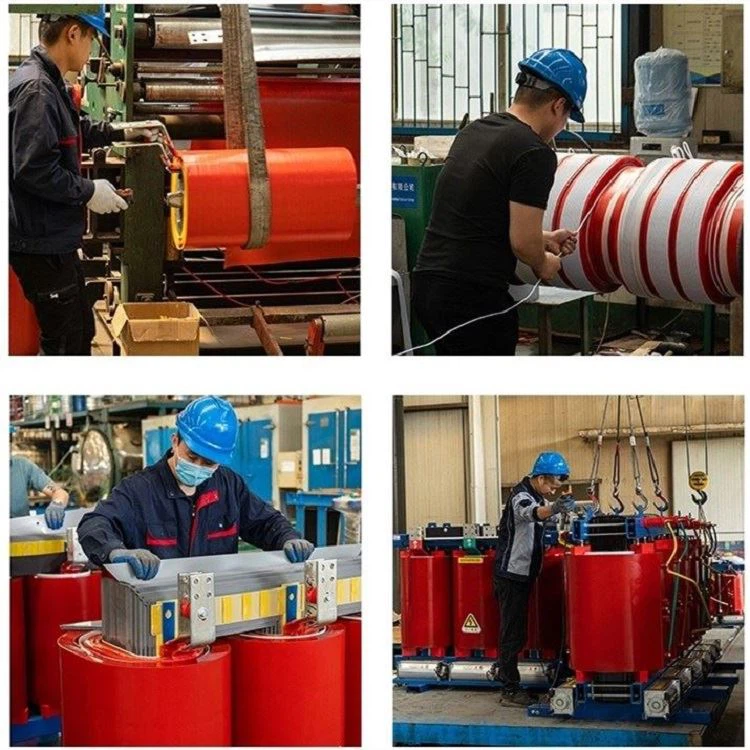

FACTORY PHOTO

Cast Resin Transformer

Cast Resin Transformer Factory

Cast Resin Transformer Price

dry type transformer (7)

dry type transformer

Dry-Type-Transformer (4)

Scope of application

This product is widely used in high-rise buildings, commercial centers, hospitals, laboratories, schools, theaters, offshore drilling platforms, ships, petrochemical plants, stations, airports, subways, mines, hydro-thermal power stations, substations, etc.

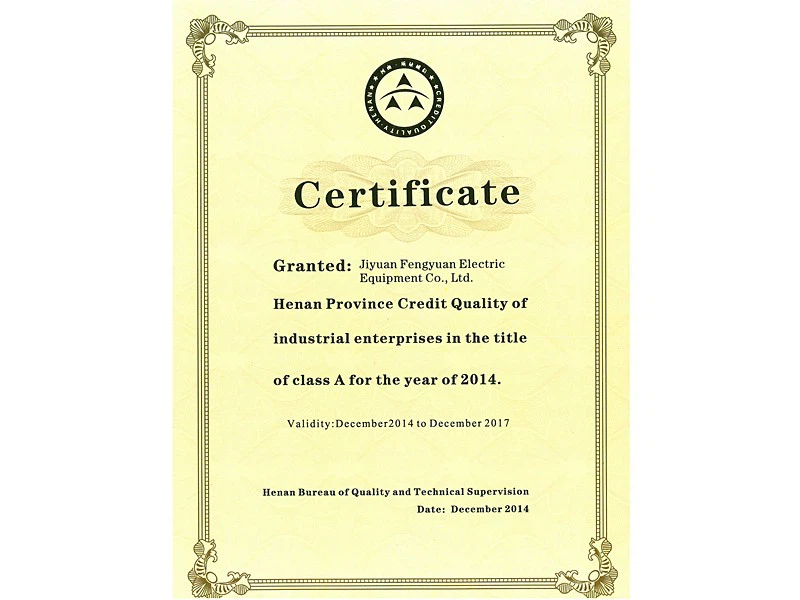

CERTIFICATE
