Cast Resin Dry Type Power Transformer

Cast Resin Dry Type Power Transformer Capacity range: 100/160/200/250/315/400/500/630/800/1000/1250/1600/2000/2500KVA Product features: 1. Brand new iron core, low loss, low noise. 2. High short-circuit resistance, external mechanical impact is not less than 20J. 3. Low partial discharge, low...

Send Inquiry

Description

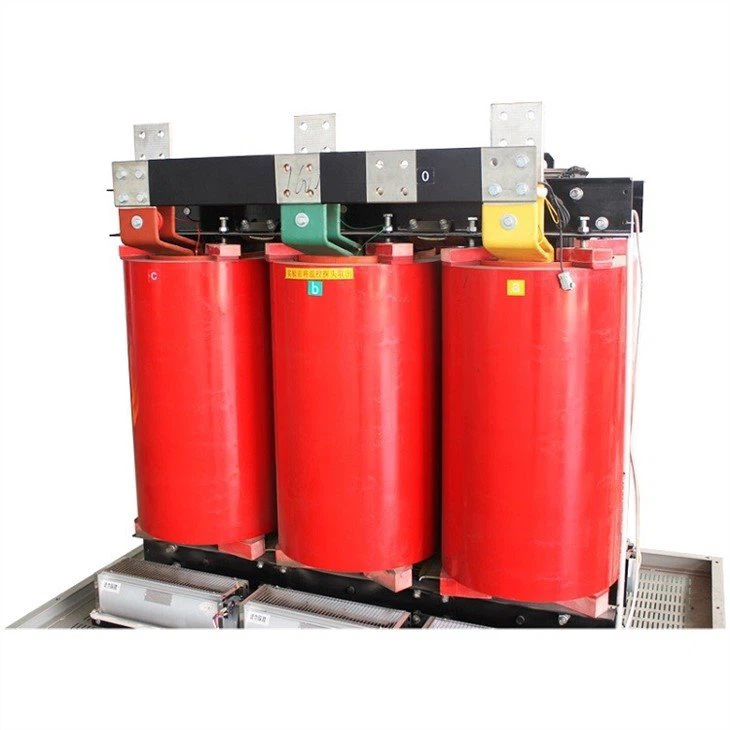

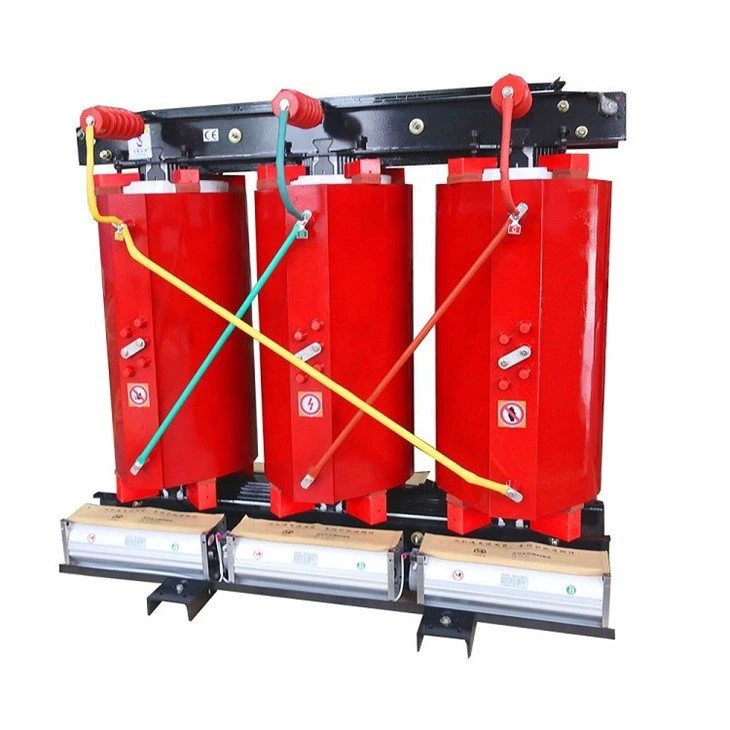

Cast Resin Dry Type Power Transformer

Capacity range: 100/160/200/250/315/400/500/630/800/1000/1250/1600/2000/2500KVA

Product features: 1. Brand new iron core, low loss, low noise.

2. High short-circuit resistance, external mechanical impact is not less than 20J.

3. Low partial discharge, low failure rate and long service life.

4. Easy to install, free of maintenance, no oil pollution, and beautify the environment.

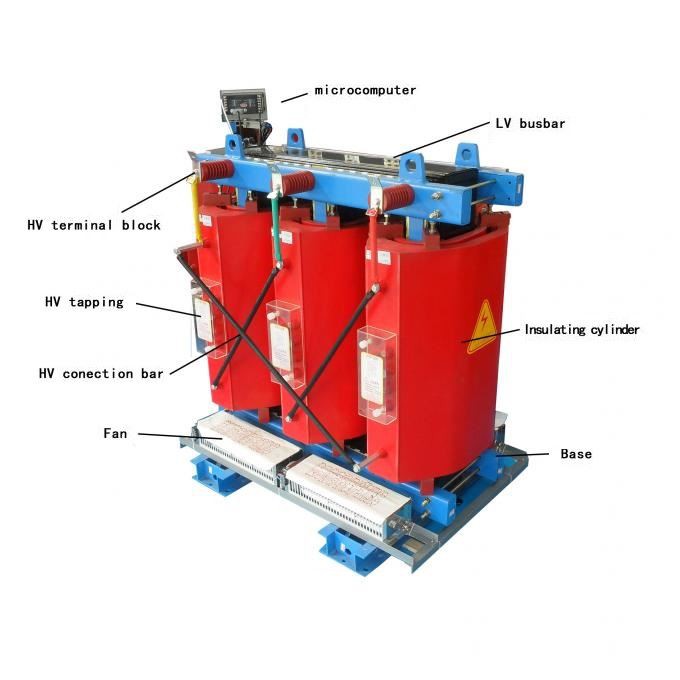

dry type transformer manufacturer

Product Specifications

Rated capacity（kVA）	HV	LV	Vector Group	No-load current （%）	No-load loss（W）	Load loss (W)			Impedance （%）
Rated capacity（kVA）	HV	LV	Vector Group	No-load current （%）	No-load loss（W）	130℃（B)	150℃(F)	180℃(H)	Impedance （%）
30	6.3 10 11	0.4	dyn11 Yyn0 Dyn5	2	190	670	710	760	4.5
50				2	270	940	1000	1070
80				1.5	370	1290	1380	1480
100				1.5	400	1480	1570	1690
125				1.3	470	1740	1850	1980
160				1.3	540	2000	2130	2280
200				1.1	620	2370	2530	2710
250				1.1	720	2590	2760	2960
315				1.0	880	3270	3470	3730
400				1.0	980	3750	3990	4280
500				1.0	1160	4590	4880	5230
630				0.85	1340	5530	5880	6290	6.0
800				0.85	1520	6550	6960	7460
1000				0.85	1770	7650	8130	8760
1250				0.85	2090	9100	9690	10300
1600				0.85	2450	11000	11700	12500	8.0
2000				0.7	3050	13600	14400	15500
2500				0.7	3600	16100	17100	18400
