The impact of prefabricated modular substations on new energy enterprises
In recent years, the new energy industry has become ubiquitous in our daily lives and has been applied to all aspects of our lives, making it more convenient and improving our quality of life. Based on the continuous development of the new energy industry, prefabricated modular substations have gradually entered people's vision. Compared to the commonly used civil engineering substations, prefabricated modular substations save more costs, occupy more land, and time, and thus gain more recognition.
Advantages and characteristics of prefabricated modular substations:
1. The prefabricated cabin has multiple functions such as power supply, distribution, data center, and energy storage, making it more convenient and convenient
2. Long service life; The prefabricated cabin shell is made of channel steel, square pipes, and cement, which has a longer service life and is more sturdy
3. Reduce the construction period; The prefabricated cabin can be installed and preliminarily debugged in the factory, and then assembled and connected on site, which can be shortened to about a week
4. Save land occupation; Prefabricated cabin substations can reduce the floor area by 40% compared to civil substations
5. Flexible configuration; The interior and exterior of prefabricated modular substations can be customized according to customer requirements
6. Reduce costs; Dramatic reduction in engineering volume and cost reduction
In addition, new energy projects are generally built in areas with harsh environments, such as Gobi, hills, deserts, etc. This highlights the advantages of prefabricated cabins. The outer shell of prefabricated cabins is usually made of fire-resistant thermal insulation materials, which can also provide insulation in winter and summer. Its performance is far superior to traditional substation boxes, not only facilitating personnel operation, but also meeting the needs of green and energy-saving, Consistent with the future planning of green and clean energy concepts, it has important significance in the development of new energy systems.
In summary, the reason why prefabricated cabins can become the "new darling" of the new energy industry is because of the many advantages and characteristics of prefabricated cabins in use, which bring many conveniences to the development of power construction. Currently, in the construction of intelligent substations, prefabricated cabins are gradually becoming a rising star
PRODUCT LINK
http://www.switchgear-china.com/box-type-compact-substation/prefabricated-substation/box-type-transformer-substation.html

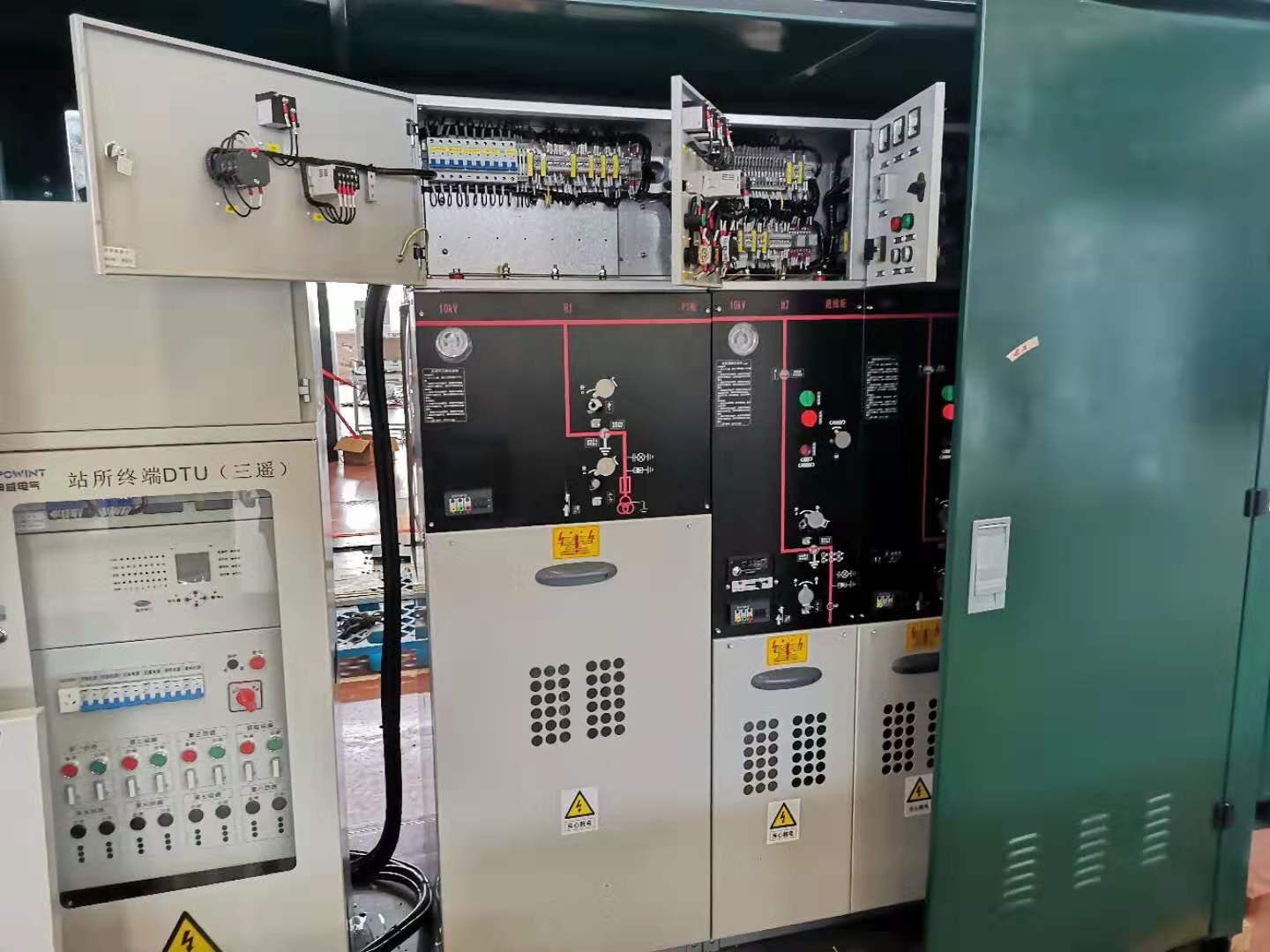

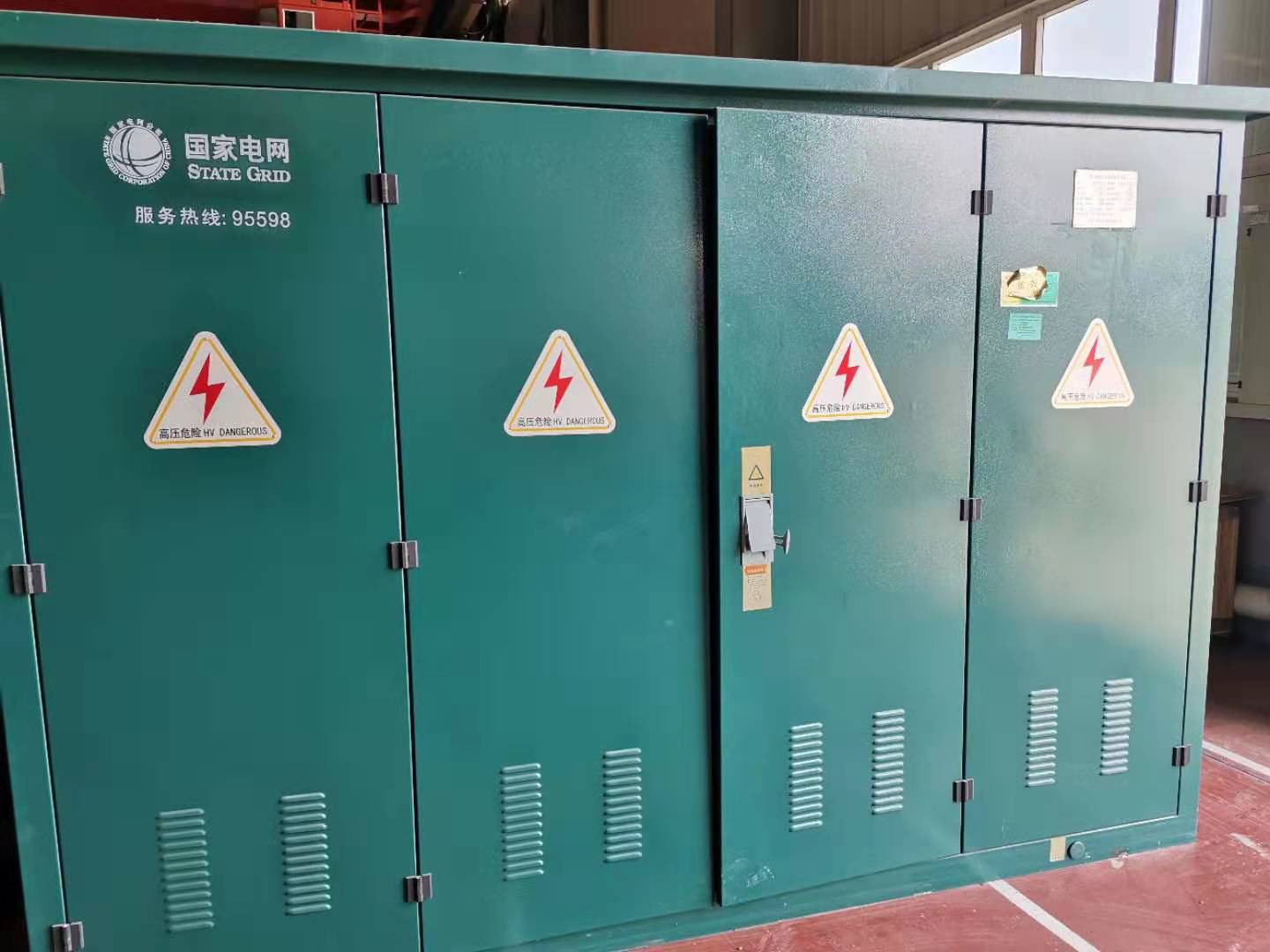

PRODUCT PHOTO
This product is usually customized.
We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.
Please contact our sales personnel to obtain design drawings
Here are our customer examples for your reference
Afghan clients
| TECHNICAL REQUIREMENTS AND CHARACTERISTICS OF EQUIPMENT | ||||
| Re:82 sets compact substation | ||||
| Item- No. |
Schedule of Technical Data | Unit | Required (at 3000 m |
Offered Data |
| System Data Requirements | ||||
| 1.05.10 | Stranded copper conductor for earthing | |||
| Manufacturer | - | |||
| Material | - | copper | ||
| Cross-section | mm2 | >50 | ||
| Length | m | >40 | ||
| 1.05.11 | Earthing rods | |||
| Manufacturer | - | |||
| Type | - | |||
| Materia! | - | |||
| Length | m | |||
| Sections per rod | pcs | |||
| 1.6 | Compact Substations (Option 1) | |||
| Manufacturer | - | fengyuan | ||
| Type | - | OutDoor | ||
| Overall protection class for complete substation | - | IP 44 | IP 44 | |
| Material of enclosure | - | GI | ||
| Overall dimensions (W x L x H) | ||||
| for S/S with 1x50 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| ■ for S/S with 1x100 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| for S/S with 1x160 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| • for S/S with 1x250 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| Overall weight | ||||
| ■ for S/S with 1x50 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x100 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x160 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x250 kVA transformer | kg | 1000kg. | ||
| 1.6.1 | 20 kV Switchgear equipment | |||
| Manufacturer | - | Chnt / Equivalent | ||
| Type | - | Indoor RMU | ||
IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
