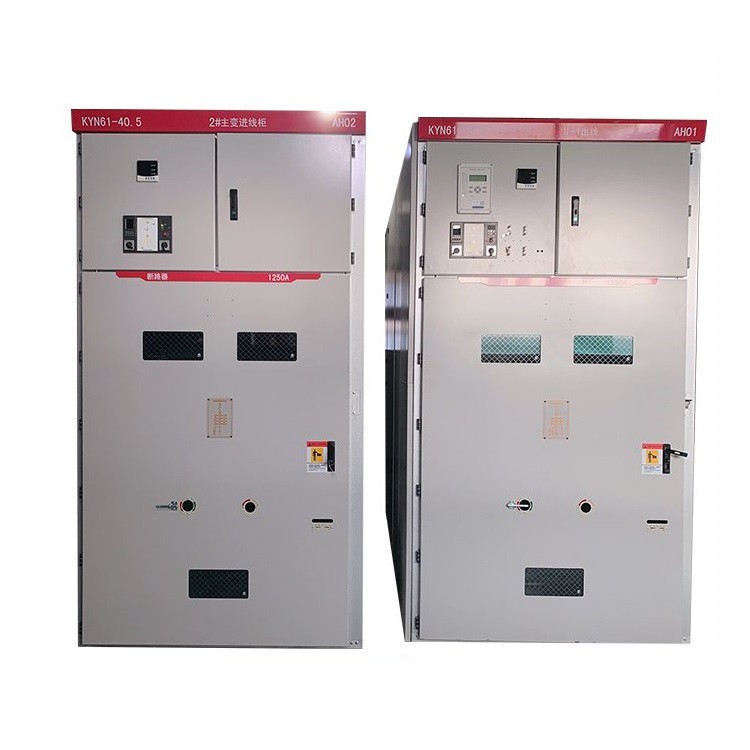

KYN61-40.5 Armoured Metal Enclosed High Voltage Switchgear
It is a complete indoor power distribution device with an AC frequency of 50 (60Hz) and a rated voltage of 40.5KV. It can be used as power plants, substations and industrial and mining enterprises to receive and distribute electric energy, as well as control circuit protection and detection, and also be used in places with frequent operations.
Project | Units | Parameter | |
The rated voltage | kV | 40.5 | |
Rated insulation level | Lightning shock voltage (full wave) | kV | 185 |
Power frequency withstand voltage (1min) | kV | 95 | |
Rated frequency | Hz | 50 | |
Rated current | A | 630；1250；1600；2000 | |
Rated short circuit break time | Power frequency withstand voltage (1min) | kV | 20、25、31.5 |
Rated short circuit closing current (peak) | kV | 50、63、80 | |
Rated dynamic steady current (peak) | kV | 50、63、80 | |
4S heat stable current (effective value) | kV | 20、25、31.5 | |
Enclosure protection class | Vacuum breaker cabinet | mm | IP4X |
Dimensions (L×W×H) | SF6 short-circuit cabinet | mm | 1400×2200×2600 |
The main feature of KYN61-40.5 high voltage switchgear is that the cabinet frame is designed according to the metal closed pin-mounted and detachable structure, and the cabinet is equipped with a new type of vacuum circuit breaker. The cabinet adopts an assembled structure, which makes the product have the advantages of beautiful appearance, high matching precision between the handcart and the cabinet, and good interchangeability. It is convenient and labor-saving to enter the device by moving and swinging in the cabinet through screws and nuts.
