SWITCHGEAR BOARD VS1 Vacuum Circuit Breaker

Name: China Customized SWITCHGEAR BOARD VS1 Vacuum Circuit Breaker Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 189571059

VS1 Series Indoor AC High Voltage Embedded pole Vacuum Circuit Breaker is applied for indoor high voltage of rated voltage 12kV and 24kV, three phase AC 50Hz. It used for controlling and protection of transformer substation., mine firm and frequently applied to operate occasion.. The switchgear accords with the standards of IEC62271-100, IEC61439(idt GB/T 11022), GB 1984, DIN VDE 0670 and so on.

Send Inquiry

Description

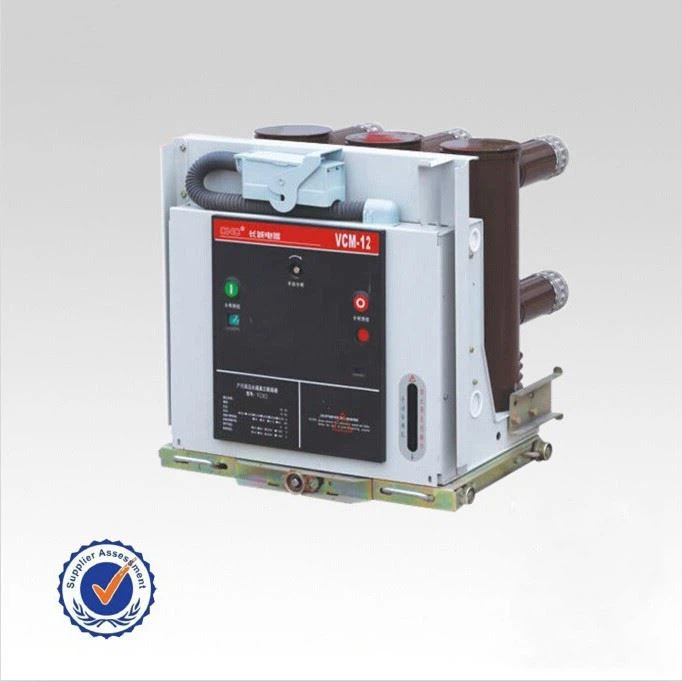

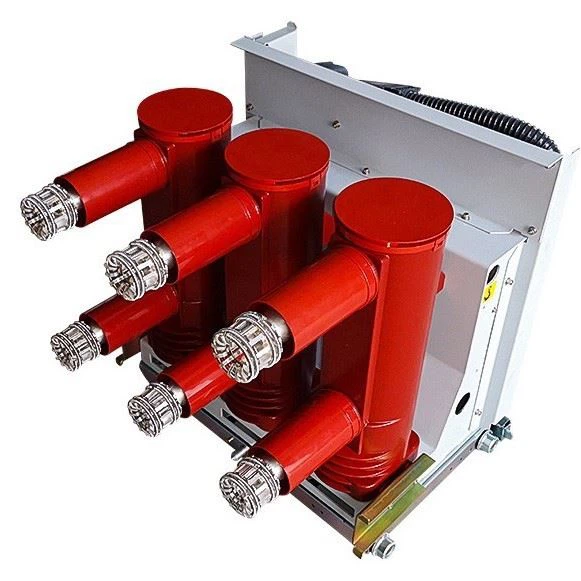

SWITCHGEAR BOARD VS1 vacuum circuit breaker

Main Features

1. It is convenient for adjustment due to the vacuum circuit breaker adopt the design of arcing chamber is located on the upper, the operating mechanism is located on the down; 2. It adopt the structure of combination of air and organic composite insulating material; 3. Simple spring operating mechanism, 10000 operating times; 4. Smooth and good self-locking performance due to lead-screw propulsion mechanism.

Structural features:

The voltage can reach 12kV and 24kV, the current 4000A, and the breaking can reach 20KA/25KA/ 31.5KA/40kA

Suitable cabinet size:
Cabinet width 500/550/650/800/1000mm

VCB model: Suitable for ABB/Siemens, Schneider etc. brands of VCB vacuum circuit breaker

Technical parameter

12kV/24KV Vacuum Circuit Breakers Data Sheet
No.	Item	Unit	Data
1	Rated voltage	KV	12kV	24kV
2	1min. Power frequency withstand voltage	KV	42	50
3	Lightning impulse withstand voltage(peak)	KV	75	125
4	Rated current	A	630A~4000A	630~4000A
5	Rated short-circuit breaking current	KA	20,25,31.5,40,50	20, 25, 31.5
6	Rated short-circuit making current(peak)	KA	50,63,80,100,125	50, 63, 80
7	4s rated short-time withstand current	KA	20,25,31.5,40,50	20, 25, 31.5
8	Rated peak withstand current	KA	50,63,80,100,125	50.63.80
9	Protection degree		Enclosure IP4X, VCB door opened IP2X
10	Panel width	mm	500/550/650/800/1000	800/1000
11	Weight	KG	400~1000	500~1200
12	Rated frequency	Hz	50Hz, or 60Hz

drawing

high-voltage-vacuum-circuit-breaker (2)

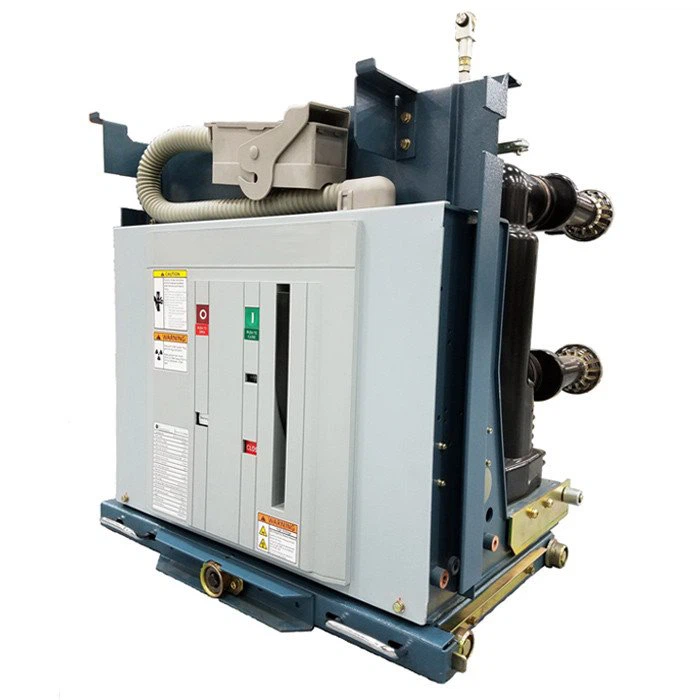

vacuum-circuit-breaker

VS1 Indoor high voltage vacuum circuit breaker (2)

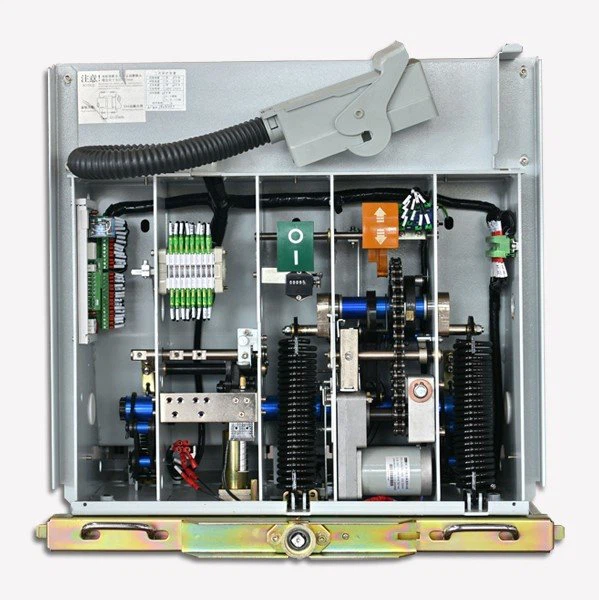

VS1 Indoor high voltage vacuum circuit breaker
