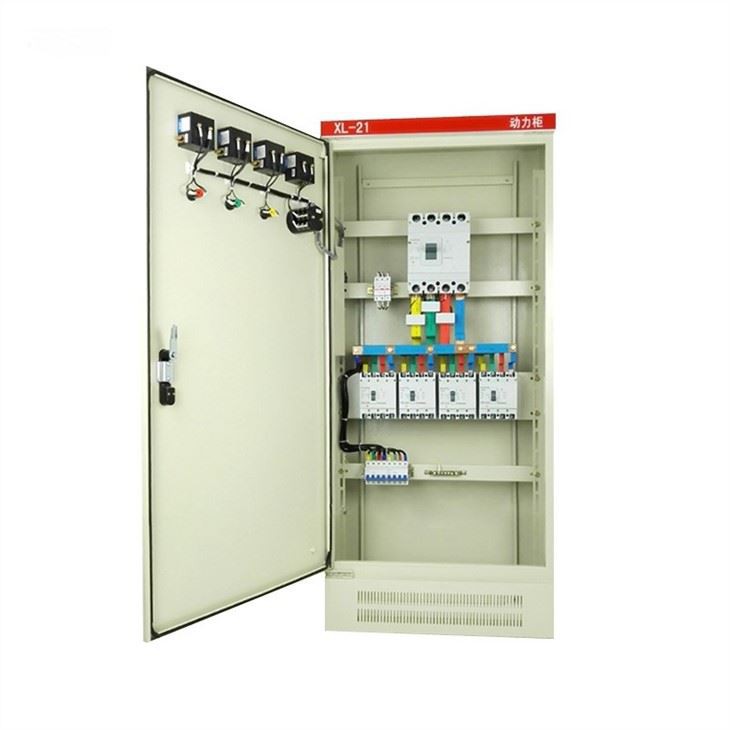

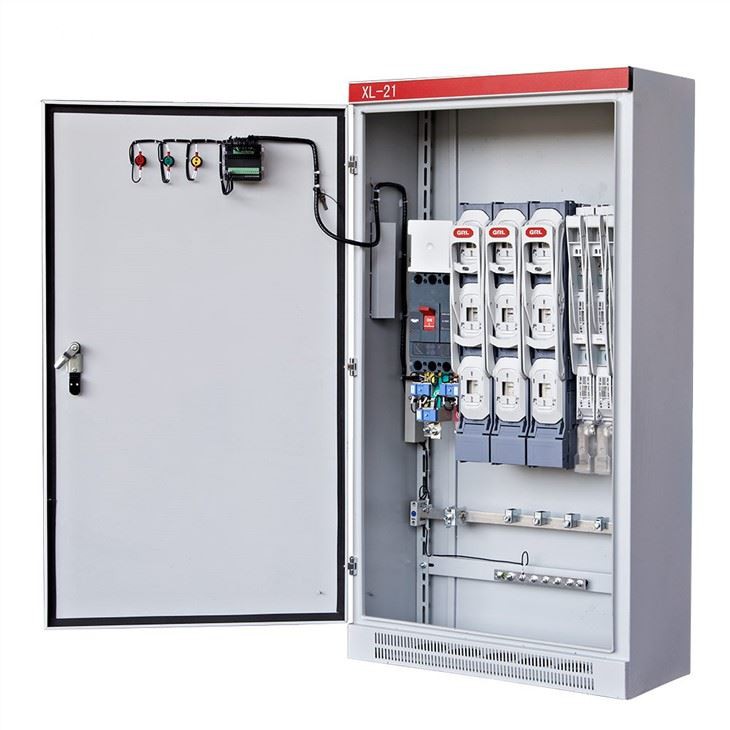

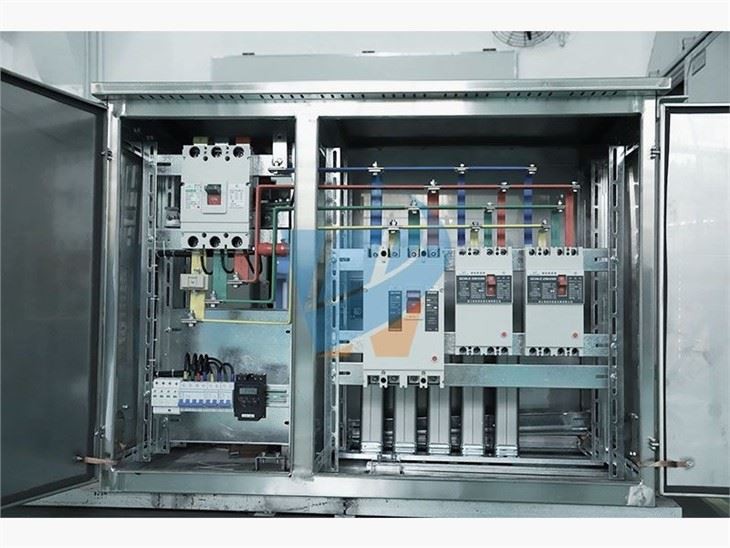

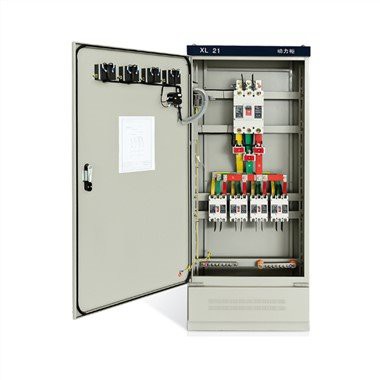

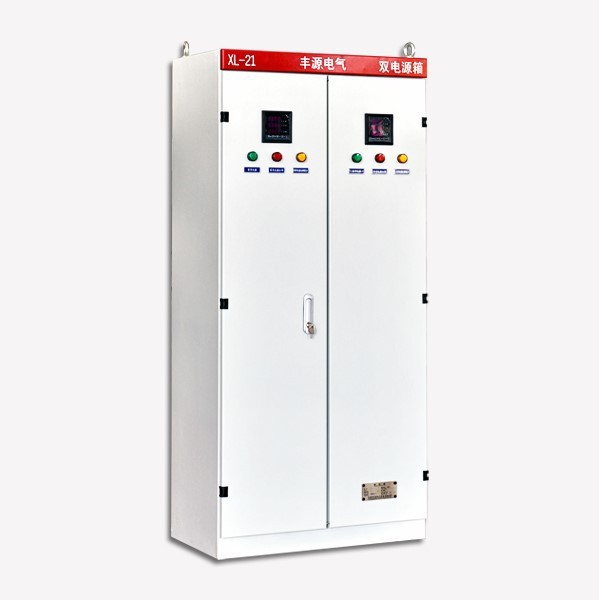

XL-21 LOW VOLTAGE 500V SWITCH CABINET
The new type XL-21 power cabinet is widely used in power plants and industrial and mining enterprises as three phase AC 500V three-phase three wire, three-phase four wire, three-phase five wire power distribution system for power or illumination, indoor wall installation, front panel operation, front panel inspection; Cabinet is fully enclosed structure, by C a section or 8MF profile assembly. Cabinet inside adopts the new type rotary load isolating switch with load operation , front door installed ammeter ,voltmeter and the signal lamp, button, selector switch and other components. The main distribution box adopts self-design of new components, compact structure, beautiful appearance, easy maintenance, a variety of wiring options for users to choose, it is an ideal alternative to the old XL-21 power cabinet. The switchgear meet the requirements of standard IEC60439 etc.
Description
XL-21 LOW VOLTAGE 500V SWITCH CABINET
The XL-21 power boxes are widely used in power plants and industrial and mining enterprises in the following three-phase AC 500V three-phase three-wire, three-phase four-wire, three-phase fivelines and distribution systems for power or lighting distribution purposes, the Department of indoor wall installation, front panel operation, maintenance front panel; cabinet is fully enclosed structure, assembled from C profiles or profiles made 8MF. Box using the new rotary load isolation switch, with a load operation, equipped with voltage, current indication instruments and lights, buttons, switches, etc. on the front door so that the main element. The distribution box using the new self-designed components, compact, elegant design, easy maintenance, a variety of wiring schemes to choose from
| model | XL-21 |
| Technical data | main breaker:EZD 630A MCCB,distribution branch 160A, 250A ,30A MCCB ,with digital multi-function meter, CT-Current transformers |
| net weight | 100 kgs |
| G.weight | 121 kgs |
| product dimension | 73 x 140 x 46 cm (W x H x D) |
| Wooden case package size | 79 x 160 x 52 cm |
| rated voltage | 380V AC, 400V AC, 415V AC , 440V AC...... |
| Rated current | 630A |
| Usage | Power distribution |
| Brand | Boerstn |
- Ambient temperature: -5 ℃ ~ + 40 ℃, and the average temperature within 24h not exceed + 35 ℃.
- Altitude: not exceed 2000m.
- The ambient air temperature of + 40 ℃ not more than 50%; at lower temperaturescan have a higher relative humidity on (eg: + 20 ℃ at 90%), taking into account the change in temperature allows the generation of a moderate condensation.
- Equipment installation and the vertical gradient should not exceed 5 °
- Equipment should be installed in the absence of severe vibration, shock-free and corrosion-freeplace.
| No | Name | Unit | Parameter |
| 1 | Main circuit rated voltage | V | AC: 380 |
| 2 | Main circuit rated voltage | V | AC: 220, 380 |
| 3 | Rated frequency | Hz | 50/60 |
| 4 | Rated insulation voltage | V | 660 |
| 5 | Rated current | A | 800A |
