Low Voltage Metal Clad Switchgear
Product Details: Product:Low Voltage Metal Clad Switchgear Place of Origin:China Brand Name:Fengyuan Power Certification: CCC,ISO9001 Model Number:MNS/GCK/GCS Payment & Shipping Terms: Minimum Order Quantity:1set Price:To be discussed later Packaging Details:Carton or wooden Packing Delivery...
Description
Product Details:
Product:Low Voltage Metal Clad Switchgear
Place of Origin:China
Brand Name:Fengyuan Power
Certification: CCC,ISO9001
Model Number:MNS/GCK/GCS
Payment & Shipping Terms:
Minimum Order Quantity:1set
Price:To be discussed later

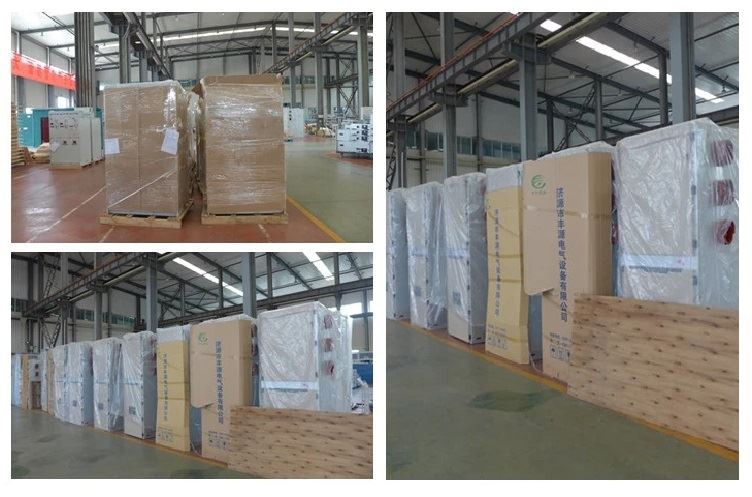

Packaging Details:Carton or wooden Packing
Delivery Time:10-15 work days
Payment Terms:L/C, T/T, Western Union,etc
MNS/GCK/GCS/GGD AC 50~60Hz low voltage metal clad switchgear is suitable for AC 50~60Hz, 660V or below power system. It is suitable for power plants, substations, oil fields, chemical, metallurgical, and mineral enterprises. Different types of switches are used for power distribution inside the cabinet, which have the functions of control, protection and monitoring.
Technical Data
| Item | Unit | Parameter | |
| Main Circuit Rated Voltage | V | AC 380(400/600) | |
| Auxiliary Circuit Rated Voltage | V | AC 220/380(400);DC 110/220 | |
| Rated Frequency | Hz | 50/60 | |
| Rated insulation Voltage | V | 660/1000 | |
Rated Current | Horizontal Busbar | A | ≤4000 |
| Vertical Busbar | A | 1000 | |
| Busbar Rated Short Time Withstand Current | KA/1s | 50/80 | |
| Busbar Rated Peak Withstand Current | KA/0.1s | 105/175 | |
Power Frequency Test Voltage(1 min) | Main Circuit | V | 2500 |
| Auxiliary Circuit | V | 1760 | |
| Protection Level | Enclosure IP40 | ||
If you have any question, please feel free to contact us.Thank you!
