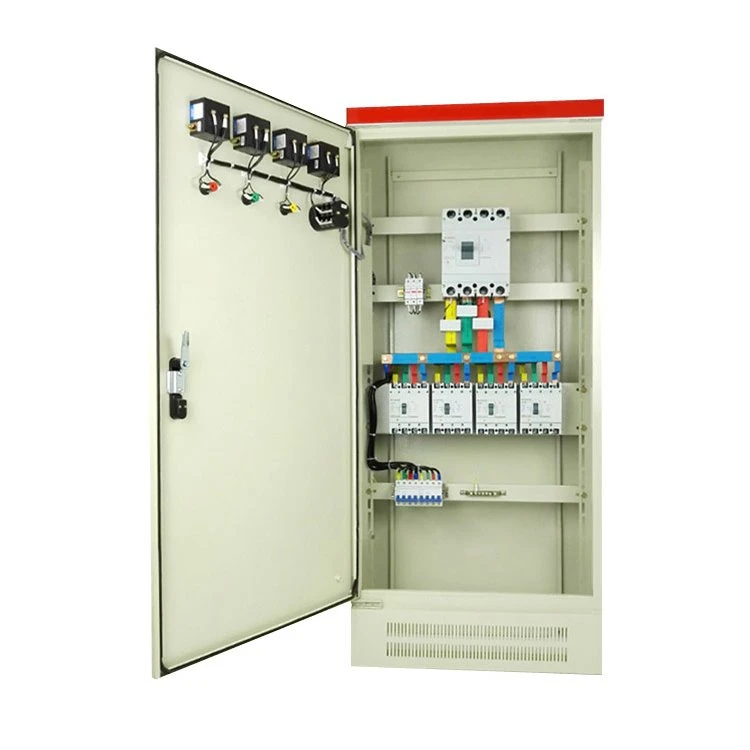

Xl-21 Low Pressure Power Cabinet

XL power cabinet power distribution box using international IEC standards and national standards design and manufacture of new power distribution box, this product selection of imported electrical products, or domestic production of more advanced electrical components.

Distribution box is suitable for industrial and mining enterprises, commercial, service industry, as well as civil buildings, ac 50Hz, voltage below 600V three-phase three-wire, three-wire four-wire distribution series for power or lighting distribution.

Ii. Product model and meaning

3. Conditions of use

Ambient temperature: The ambient air temperature should not exceed +40 ° C, not less than -10 ° C, and the average temperature should not exceed +35 ° C within 24 hours.

Atmospheric conditions: the relative temperature shall not exceed 50% at +40 degrees Celsius, and higher relative temperature is allowed at lower temperatures.

Free from conducting dust and gases that may corrode metal and destroy insulation.

No severe vibration and turbulence and vertical installation, installation inclination shall not exceed 5 degrees.

The altitude does not exceed 2000 meters.

4. Structural characteristics

This power distribution box is closed, generally USES the steel plate welding and become, also can use profile assembled, electrical installation column is on the left and right side wall welding in the oven, knife switch handle on the door is in front of the box on the right side of operation for the use of switching power supply, can be installed on the door is the voltmeter, ammeter, light and operation button, open the door to repair the equipment in the cabinet.

The equipment in the box adopts rack structure installation, flexible and compact installation, convenient maintenance.

V. Instructions for ordering

When ordering, users should provide the following information:

Primary line scheme and single line system diagram;

Secondary line deployment system diagram;

Detailed specifications and quantity of electrical equipment in each case;

The arrangement and layout of the power distribution box must also be provided when ordering.
