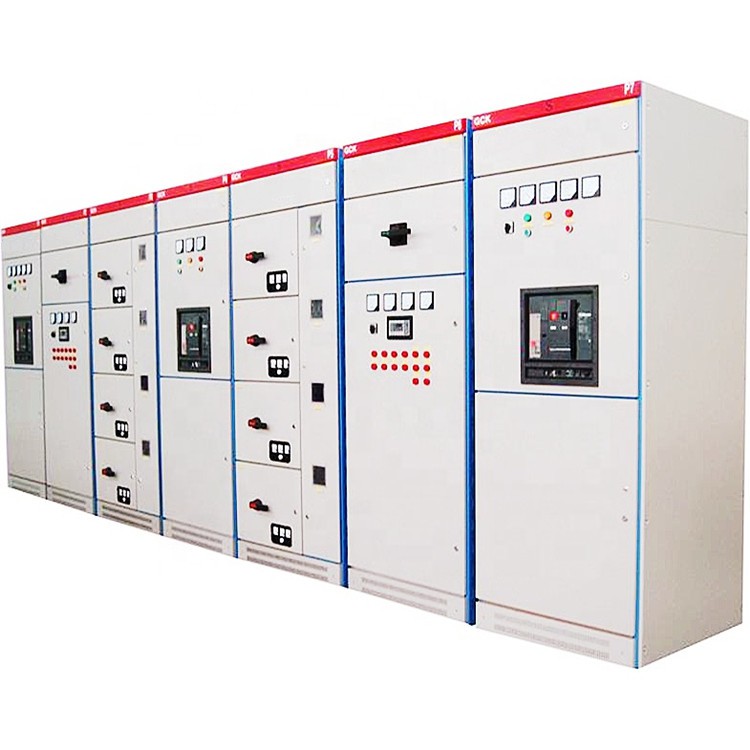

GCK LV Electrical Switchgear Panel

It is composed of power distribution center (PC) cabinet and motor control center (MCC). It is suitable for power users such as power plants, substations, industrial and mining enterprises, etc., as a power distribution system with AC 50Hz, maximum working voltage up to 660V, and maximum working current up to 3150A. It is used for power conversion and distribution control of power distribution, motor control and lighting power distribution equipment.

Features:

This product has the advantages of high breaking capacity, good dynamic and thermal stability, advanced structure, practical electrical scheme, arbitrary combination of various scheme units, saving floor space, beautiful appearance, high protection level, safety and reliability, and convenient maintenance.

Technical Parameters

Sr.	Content		Unit	Value
1	Rated Operating Vbltage		V	380/690
2	Rated Insulation Voltage		V	660/1000
3	Rated Frequency		Hz	50
4	Main Bus-Bar	Rated Current	A	<3150
		Rated Short-time Withstand Current(ls)	kA	<80
		Rated Peak Withstand Current	kA	<143
5	Distribution Bus	Rated Current	A	<1000
		Rated Short-time Withstand Current(ls)	kA	<50
		Rated Peak Withstand Current	kA	<105
6	Imin Aux. circuit Frequency Withstand Voltage in lmin		kV	2
7	Rated Impulse Withstand Voltage		kV	8
8	Protect Degree		IP	The IP54 To IP54
9	Electrical Clearance		mm	>10
10	Creepage Distance		mm	>12.5
11	Over-voltage Level		-	III/IV
12	Class of Pollution		-	3

LV Electrical Switchgear Panel

LV Electrical Switchgear Panel Price

Special tips

1. When installing this product, the horizontal line between the cabinets should be connected firmly and reliably.

2. The door of this product has an interlock function with the main switch, that is, the door can only be opened when the power is turned off. The other sides of this product are screw sealing plates, which have no interlocking function with the main switch. Therefore, please be sure to disconnect the power supply when disassembling the side panel of this product for inspection.

3. Non-professionals should not open the cabinet for maintenance and inspection.
