MNS Low Voltage Withdrawable Switchgear Panel

MNS Low Voltage Withdrawable Switchgear Panel It is suitable for power plants, substations, petrochemicals, metallurgical steel rolling, light industry and textiles and other factories and mines, as well as residential quarters, high-rise buildings and other places. It is used for power...

Send Inquiry

Description

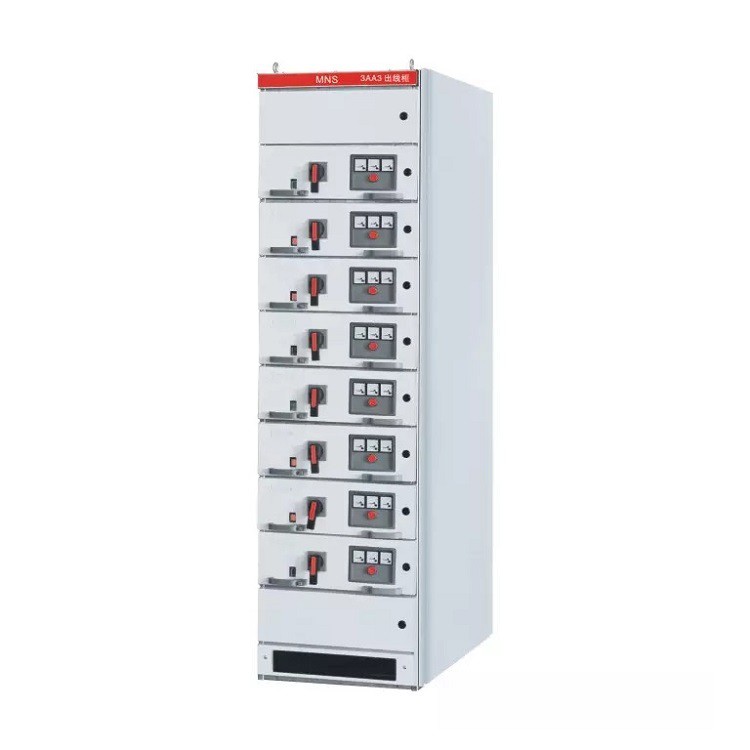

MNS Low Voltage Withdrawable Switchgear Panel

It is suitable for power plants, substations, petrochemicals, metallurgical steel rolling, light industry and textiles and other factories and mines, as well as residential quarters, high-rise buildings and other places. It is used for power conversion, distribution and control of power distribution equipment in power systems with AC 50~60Hz and rated working voltage AC 660V and below.

Basic parameters

Rated insulation voltage		660V(1000)V
Rated working voltage		380V,660V
The maximum operating current of the main bus		5000A
Main bus bar rated withstand current		100KA/1s
Main bus bar rated peak withstand current		220KA/0.1s
Distribution bus (vertical bus )the maximum operating current		1000A
Distribution bus (vertical bus )peak current	Standard	105KA(maximum )/0.1s
	Enhanced	176KA(maximum )/0.1s

MNS Low Voltage Withdrawable Switchgear Panel

Nameplate of MNS low voltage withdrawable switchgear panel:

The nameplate should be able to prevent the influence of climatic conditions and corrosion, and the nameplate should include the following:

1. Manufacturer's name or trademark.

2. The model and name of the product.

3. Rated voltage.

4. Rated current.

5. Protection level.

6. Standard number.

7. Factory serial number, factory date.

Packaging of MNS low voltage withdrawable switchgear panel:

The packaging of MNS low-voltage withdrawable switchgear adopts wooden box, and other materials can also be selected according to the local material supply. The box has sufficient strength. The fixing method of the product in the box can be plugged with buffer material, the wooden block is positioned and fastened, and the bolt is fastened. The product must not have direct contact with the outer packing box. Packaging must have specific waterproof measures.
