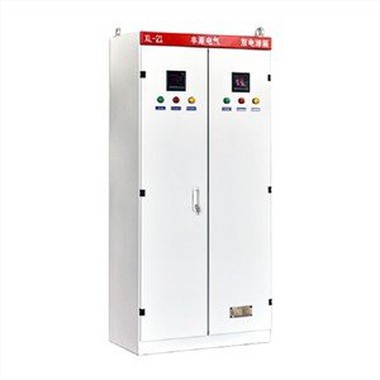

Fixed Power Distribution Switchgear

GGD Low Voltage Fixed Power Distribution Switchgear Suitable for AC 50Hz, rated working voltage 380V, rated working current up to 3150A for power conversion, distribution and control of power, lighting and power distribution equipment. GGD cabinet adopts the form of fixed cabinet. The product...

Send Inquiry

Description

GGD Low Voltage Fixed Power Distribution Switchgear

Suitable for AC 50Hz, rated working voltage 380V, rated working current up to 3150A for power conversion, distribution and control of power, lighting and power distribution equipment.

GGD cabinet adopts the form of fixed cabinet. The product has the characteristics of high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, series, practicability, novel structure and high protection level.

Category name	Low voltage switchgear
Origin	Henan,China
Colour	Customized
Customized service	Support
Sample service	Support
Rated insulate voltage	660V
Rated operation voltage	380V
Rated current of main busbars	up to 6300A
Rated current of distribution busbars	up to 2000A
Rated short time withstand current(1s)	up to 100kA
Rated peak withstand current	up to 220kA

GGD low voltage switchgear is widely used in various power distribution.

Widely used in power plants, substations, industrial and mining enterprises, high-rise buildings, airports, stations and terminals, radio and television and other communication centers, as PCs and motor control centers MCC in power distribution for power generation, transmission and distribution, power conversion and power consumption .

Fixed Power Distribution Switchgear

Product details

Switchgear

Certificates

High Voltage Electrical Distribution Board

Packing & Delivery

Generally, we will use wooden packaging suitable for long-distance transportation such as sea transportation. We can also customize special packaging according to customer requirements.
