JP Outdoor 440v Electrical Switchgear

With the strong assistance of our adept professionals, we are engrossed in supplying a large variety of Feeder Pillar Panel. The offered panel is Integrated with power distribution/metering/protection/control/reactive power compensation function. This panel is extensively used in commercial and residential sectors for low voltage distribution applications. Before offering to the clients, this panel is stringently tested in order to ensure its flawless performance. Comply with standard IEC439

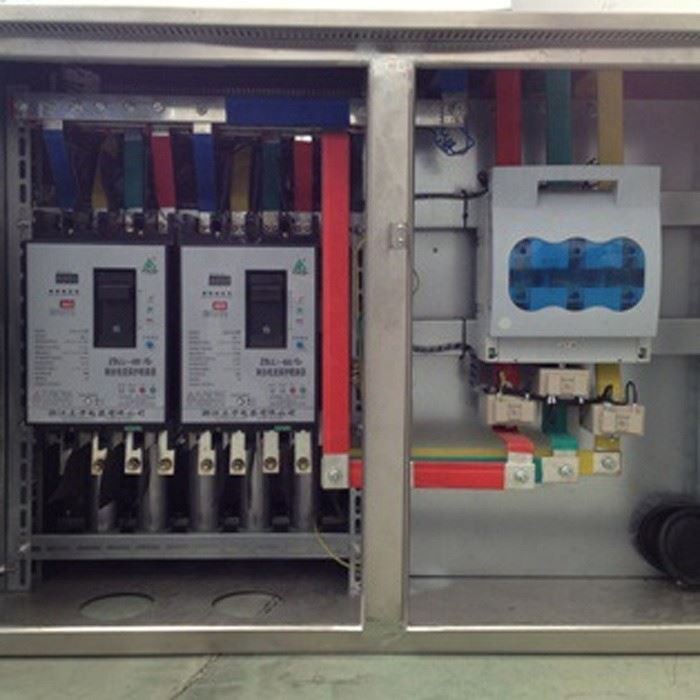

Farady JP feeder pillar enclosure was made of 2mm high quality stainless steel plate after multiple bending flanging process ( flame retardant, environmental protection, heat insulation, anti-condensation performance), using special stainless steel welding process, the overall strength after molding, the surface smooth as a mirror, do not leave weld marks; internal installation of beam (plate) for the hot galvanizing process, to ensure that the twenty years do not rust; the front and rear doors, easy operation and maintenance, the door was edged with high elastic aging sealant, each door is equipped with two types of lock, padlock with anti rain cover wall rust; whole closed with a sealing device measuring room; the side of the box is equipped with cable lines into the proof of foreign body wear tube, bottom ventilation holes and the cable outlet hole is arranged at the top of ventilation and screen, waterproof Anti rust, dustproof, anti-foreign object function, protection grade: lP54.

Service environment

1. Altitude above sea level should not exceed 2000M.

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not exceed +35℃ in 24h.

3. Air condition: With clean air. Relative humidity should not exceed 50% at +40℃. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20℃.

4. Places without fire, explosive danger, serious pollution, chemical corrosion and fierce vibration.

5. Installation gradient not exceed 5℃.

6. Control center is suitable to the transportation and store with following temperature:-25℃ ~+55℃, in short time (within 24h) it should not exceed +70℃.

Cost savings

All weatherproof outdoor enclosures allow the equipment to be located in any outdoor environment, freeing up valuable indoor floor space whilst retaining remote operation and control.
There are a wide range of metering instruments available for monitoring the unit locally or remotely, ensuring efficient operation.
JP series Feeder pillars are available as part of a package substation with transformers and MV switch or circuit breakers. Additional cost savings are achieved through direct coupling from the transformer to the JP Feeder pillar eliminating expensive cable runs

Safety

CCC certified, providing IP54 operator protection under all circumstances during operation, allowing electrical systems to be fully co-ordinated minimising electrical faults. In addition to the overload and short circuit protection, each breaker can be fitted with earth fault protection.

The modular design enables customisation for individual requirements, and has the flexibility to suit the changing needs of the LV distribution system.
Maximum flexibility is achieved by the four pole busbar system up to 3200A and the Compact NS range of moulded circuit breakers of ratings up to 630A.
As a complete unit, the JP Feeder Pillar will not only provide circuit protection, but the outgoing circuits can also be controlled individually via hardwired pilots or linked to the incoming breaker. Other "add-on" benefits include remote monitoring and status of each breaker and also remote operation through motor mechanisms.

The JP Feeder pillar comes complete and factory assembled for easy installation in any outdoor location with bottom entry cable through individual gland plates. The cable space is protected by an earthed metal screen, and each breaker is fitted with cable shrouds to maintain IP2X operator protection when the screen is removed.
Addition of new circuits is made easy, by utilising the cassette on the MCCB breaker allows the breaker to be positioned anywhere on the busbar system before being clamped, contributing minimum disruption of supply.
