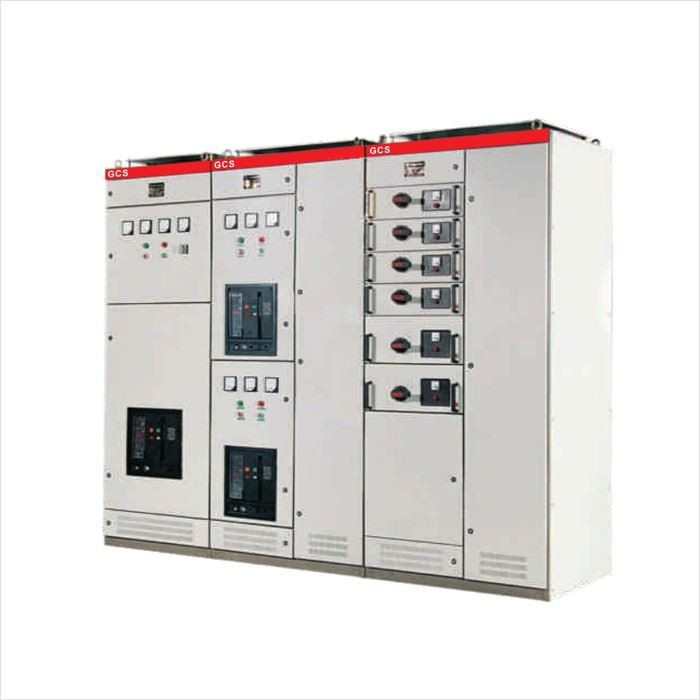

GCS 330V Drawer Module Switchgboard Cabinet
MNS/GCK/GCS/ model LV switch-gear is suitable for AC 50~60Hz, 660V power system or below . It is applied into power plant, substation, oil field, chemistry industry, metallurgy, mineral enterprise etc. Different types of switch is used inside of the cabinet to receive and distribute power with the function of controlling, protecting and monitoring. The LV Switch-gear conforms to IEC60439 VDE0660, part five, GB7251 " LV Switch-gear and control-gear " standard and JB/ T9661 " LV draw out switch-gear " standard.
Description
GCS 330V drawer module switchgboard cabinet
1)main function:
1:power distribution control cabinet for power generation and supply system
2:centralized control of motor
3:reactive power compensation at same time
2)suitable place
1: all places where required high reliability and safe power distribution and motor control.
2 :for rated working voltage <= 660V electric system
3)cabinet characteristic
It is top world level technique ,high intelligent assemble way, easy operation and maintenance
1:all component are standard type, conveninet for project planning
2:drawer can be built up into different modes freely
3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.
4:The cabinet body is made of cold rolled steel or imported A-zinc alloy plates
5:the equipment is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance
6:The cabinet body is free of maintenance to most extent
4)drawer function:
1:each drawer is independent, and seperated entirely, and each one can exchange internally
2:the drawer is contained of several engine function parts, it has place with CONNECTION/ TEST/ SEPERATE/ MOVE OUT ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized in front board
3:through hand shank and interlock, can accurately fix postion in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel
5)Service/technical parameter
install and guide user in free of charge
whole life service
| item | date |
| rated voltage | to 660V |
| ratd voltage impacte indurance | 8KV |
| rated frequency | 50/60hz |
| grounding system | TT,IT, TN-S,TN-C-S |
| ratd voltage of auxiliary circuit | AC380,220v/ DC220v |
| maximum coil in and out broken circuit | 4000A |
| pollution degree | 3 |
| rated current | 4000A |
| horizontal busbar rated current | 4000A |
| vertical busbar rated current | 2000A,1000A |
| horizontal busbar ratd shorttime withstand current | 50/80KA |
| horizontal busbar rated peak value withstand current | 105/176KA |
| vertical busbar rated short time withstand current | 50KA |
| vertical busbar rated peak value withstand current | 105KA |
