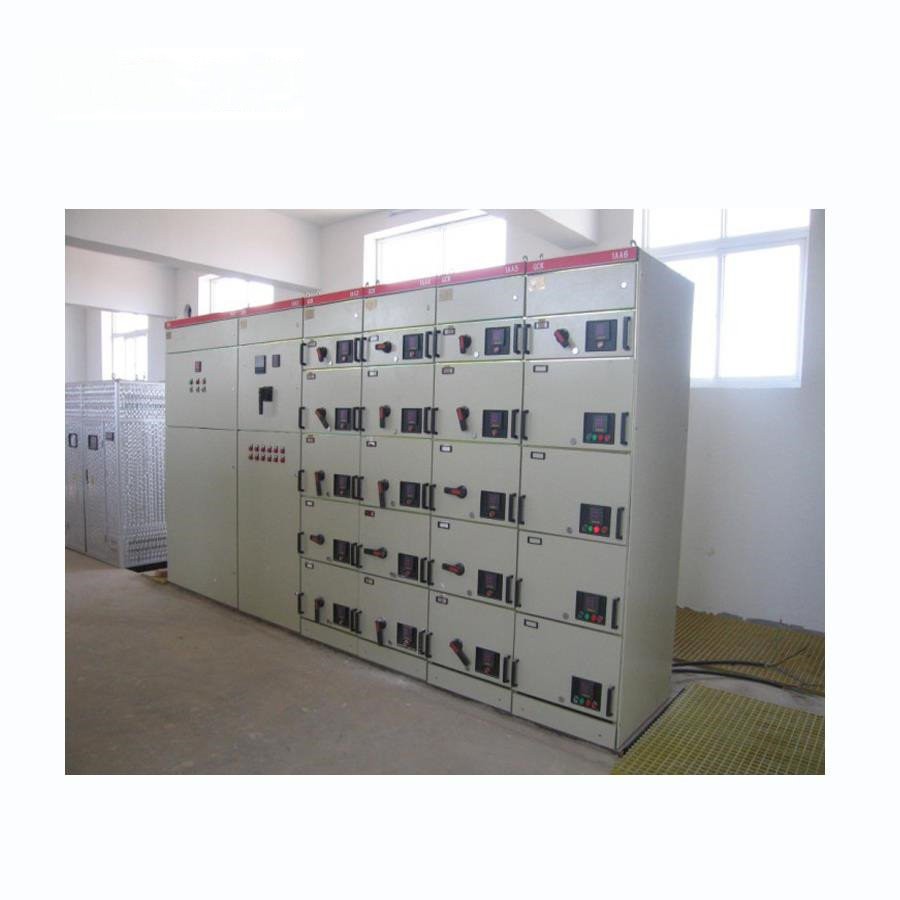

GCK 300V Electric Control Panel

Cabinet structure
Its basic structure is an assembly of C type profiles which made from plate bending with E=25 module
installation hole. The whole cabinet and inner compartments are purification treatment of zinc plating. The
door panels and side panels are electrostatic sprayed.The cabinet basic structure is as picture.1 and basic
size as picture.2 (table 1 and 2)

Cabinet type
1.Power Distribution Center switchgear (PC): can adopt Emax,MT,3WN,AH,ME series circuit breakers.
2.Motor control center switchgear (MCC) : it is the assembly of big & small drawer, every circuit main
switch is high breaking moulded case circuit breaker or rotation type load break switch with fuse. Power
factor automatic compensation cabinet is with manual or automatic and remote power factor compensation
device.

1. The main frame adopts 8MF type open type steel, two side of steel are module mounting holes 20mm and 100mm and diameter of 9.2mm, internal installation flexible and convenient .

2. The main frame assembly is designed in two types, fully assembled structure and part (side frame and beam) welding structure, for the user to choose

3. Each functional chamber of the device is isolated from each other, and the compartment is divided into a functional unitchamber, a bus chamber and a cable chamber

4.The main horizontal busbar adopts cabinet back horizontal arrangement to enhance the ability of anti electric power of bus, is the basic measures of main circuit of the device with high short circuit strength ability

5.The design of cable compartment is very convenient to go up and down

6.The general cabiner dimension series of device (see table below)
