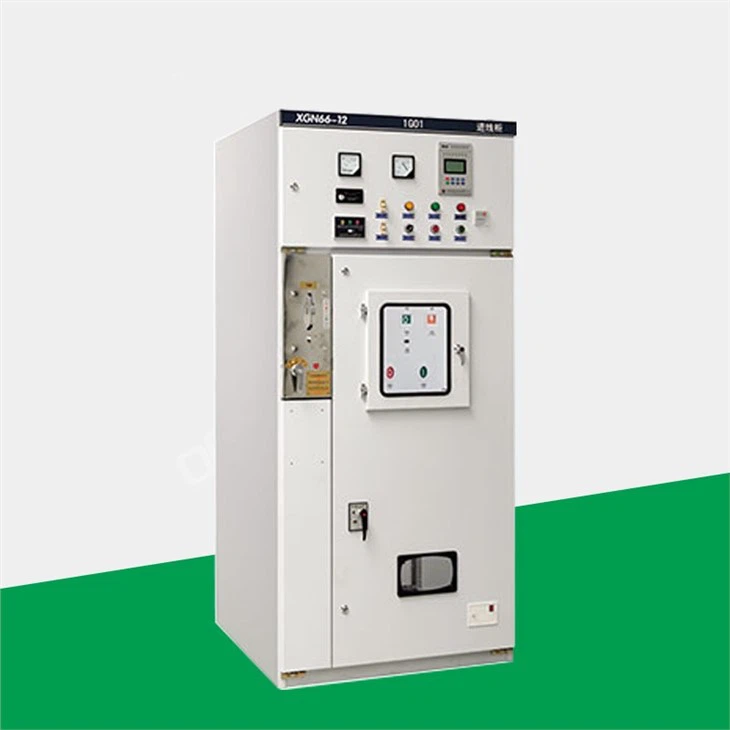

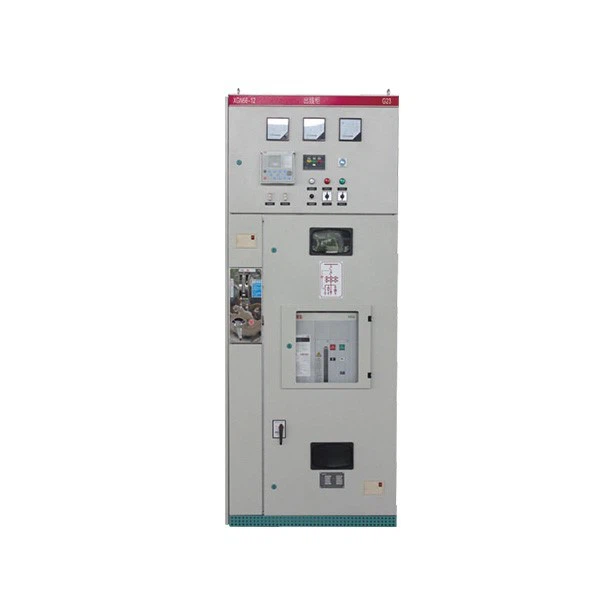

XGN66-12 Electrical 21KV Distribution Panelboard
XGN66-12 type fixed closed switchgear is our company's new generation of high-voltage electrical equipment complete sets. This product is small in size, only 50% of the volume of ordinary switch cabinets: circuit breakers have high reliability and good performance: The lock mechanism is reliable and simple. The switch cabinet is an indoor complete set of 3.6.7.2.12kV three-phase alternating current 50Hz single busbar segmentation for receiving and distributing electric energy. It also has the functions of controlling, protecting and monitoring the circuit. It can be used in various types of power plants, substations, industrial and mining enterprises, high-rise buildings and other places. It can also be combined with ring network cabinets and used in switching stations.
Description
XGN66-12 electrical 21KV distribution panelboard
XGN66-12 box type fixed AC metal enclosed switchgear (hereinafter referred to as the "switchgear") is applicable to the 3.6-12KV two-phase AC 50Hz system as a device for receiving and distributing electric energy, and is suitable for frequent operation sites and the transformation of switchgear equipped with oil switches. The bus system is a single bus system and a single bus section system. The switch cabinet meets the requirements of GB3906 3.6 ～ 40.5kV AC Metal Enclosed Skyopening Equipment and Control Equipment and DL404 Technical Conditions for Ordering Indoor AC High Voltage Switch Cabinet. The switch cabinet is beautiful in appearance, small in size, and has complete and reliable anti misoperation functions. For the main switch VS1-12 or ZN28-12 vacuum circuit breaker equipped in the switch cabinet, GN30-12 and GN19-10 disconnectors are used for isolating firing, and JN15-12 grounding switches are used for grounding switches.
Conditions of Use
1. Ambient temperature: maximum+40 ℃, minimum - 15 ℃; 2. Altitude: no more than 1000m; 3. Relative humidity: the daily average value is not more than 95%, and the monthly average value is not more than 90%; 4. The earthquake intensity shall not exceed 8 5. Places without fire, explosion, serious pollution, chemical corrosion and severe vibration.
Technical parameter
No. | Item | Unit | Technical data | ||
1 | Rated voltage | kV | 3.6, 7.2, 12 | ||
2 | Rated current | A | 630 1000 | 1250 2000 | 2500 3150 |
3 | Rated short circuit breaking current | kA | 20 | 31.5 | 40 |
4 | Rated short time withstand current | kA | 20 | 31.5 | 40 |
5 | Rated peak withstand current | kA | 50 | 80 | 100 |
6 | Rated short circuit making current | kA | 50 | 80 | 100 |
7 | Rated duration of short circuit | s | 4 | ||
8 | Degree of protection | IP2X | |||
9 | Bus system | Single bus, single bus with bypass, double bus | |||
10 | Operating method | Electromagnetism, spring storage energy | |||
11 | Outline dimension | mm | 950^1000x2300 (below 1250A) | ||
