Vacuum Circuit Breaker Switchgear

KYN28-12 VCB switchgear,Vacuum Circuit Breaker Switchgear

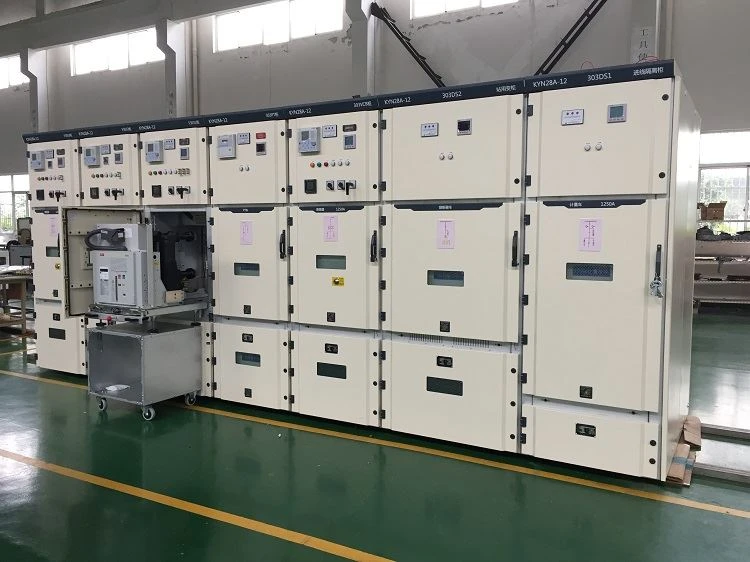

KYN28-12 series high voltage switch cabinet is suitable for indoor three-phase AC 50Hz, rated voltage 3.6-12kV. The product is an armored metal closed structure, and the whole is composed of two parts: a shell and a handcart.

Conditions of Use

1. Ambient air temperature: highest temperature +40℃, lowest temperature -15℃;

2. Relative humidity: daily average relative humidity: ≤95%; daily average water vapor pressure does not exceed 2.2kPa;

Monthly average relative humidity: ≤90%; monthly average water vapor pressure does not exceed 1.8kPa;

3. Altitude: below 1000m;

4. Earthquake intensity: no more than 8;

5. The surrounding air should not be significantly polluted by corrosive or combustible gas, water vapor, etc.;

6. No severe vibration;

7. When used under normal conditions beyond GB3906, the user shall negotiate with the company.

Feature:

The product appearance is novel, concise and coordinated.

Frame structure, high strength and high precision.

Simple and reliable interlock function to prevent misoperation.

All metal protection makes the operation safer and more reliable.

More user-friendly man-machine interface, simple operation.

About us:

Henan Fengyuan Power Technology Co., Ltd., founded in 2010 with registered capital of 20 million yuan, a fixed asset of 50 million yuan, more than 200 employees and an annual output value of nearly 100 million yuan, located in Jiyuan City, Henan, China.

Certificates

Packing

The following materials should be provided when ordering:

1. Main wiring plan number and single-line system diagram, arrangement diagram and floor plan.

2. Secondary function chart, paragraph arrangement chart. If there is no terminal arrangement diagram, arrange according to the manufacturer's terminal arrangement.

3. Model, specification and quantity of switchgear electrical components.

4. Summary table of electrical equipment.

5. When busbar bridges (bus bridges between two rows of cabinets and wall cabinets) are required, the span width and height dimensions must be provided.

6. When switchgear is used in special environmental conditions, you should tell the manufacturer when ordering.

7. The type and quantity should be mentioned when other accessories or more than the supply of accessories are required.

Contact us:

Contact: Charles Du

Mobile: +86 18639199897

E-mail: Fengyuan800@outlook.com

If you want to know more about our products, please contact us. Looking forward to serving you.
