Removable Metal Enclosed Switchgear

Description

The removable metal enclosed switchgear is suitable for three-phase AC 50Hz, 40.5kV power system, the model is KYN61-40.5. It is mainly used for power distribution in power plants, substations, industrial and mining enterprises, railway transportation and high-rise buildings, as well as control, protection and monitoring of circuits. It meets the requirements of 1EC60298, GB3906, DL/T404 and other standards, and has the function of "five protection".

kyn61-40.5

Name		Unit	Data
Rated voltage		kV	40.5
Rated current	Rated current of main bus	A	630,1250,1600,2000
Rated current	Rated current with the circuit breaker	A	630,1250,1600,2000
Rated insulation level	1min power frequency withstand voltage, between poles, between the poles/between the fracture	kV	95/110
Rated insulation level	Lightning impulse withstand voltage(peak), between poles, between poles/break	kV	185/215
Rated insulation level		V/1min	2000
Rate frequency		Hz	50
Rated short circuit breaking current		kA	20,25,31.5
Rated short-time withstand current/rated short circuit duration		kA/4s	20,25,31.5
Rated peak withstand current		kA	50,63,80
Rated short circuit closing current		kA	50,63,80
Rated voltage of control circuit		V	DC:110 200,AC:110 220
Protection class	Switchgear housing		IP4X
Protection class	Compartment(when the door is open)		IP2X

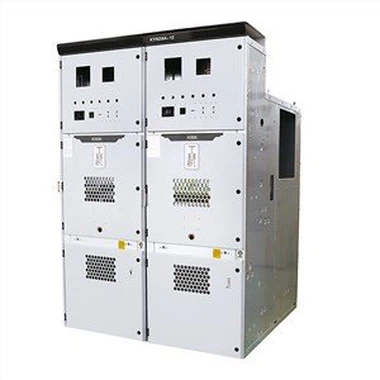

KYN61-40.5 Removable Metal Enclosed Switchgear

Compartment of removable metal enclosed switchgear

1. Withdrawable handcart: The frame of the handcart is formed and assembled by high-quality cold-rolled steel plate. The handcart is equipped with auxiliary equipment such as vacuum circuit breaker. The handcart frame is equipped with a lead screw nut propulsion mechanism and a super high-speed clutch.

2. Circuit breaker room: A special track is installed in the circuit breaker room for the handcart to move, so that the circuit breaker handcart can be slidably fixed in the room through a rotatable nut mechanism.

3. Busbar room: The main busbar is led from one switch cabinet to another switch cabinet, and is fixed by the branch busbar and the static contact part.

4. Cable room: Current transformers, arresters and grounding switches can be installed in the cable room. The generous space facilitates the installation and connection of multiple cables.

5. Relay room: The inner and outer panels of the relay can be equipped with secondary components such as control, protection components, metering, display instruments, and live monitoring displays.
