Indoor Metal Clad Drawout Switchgear

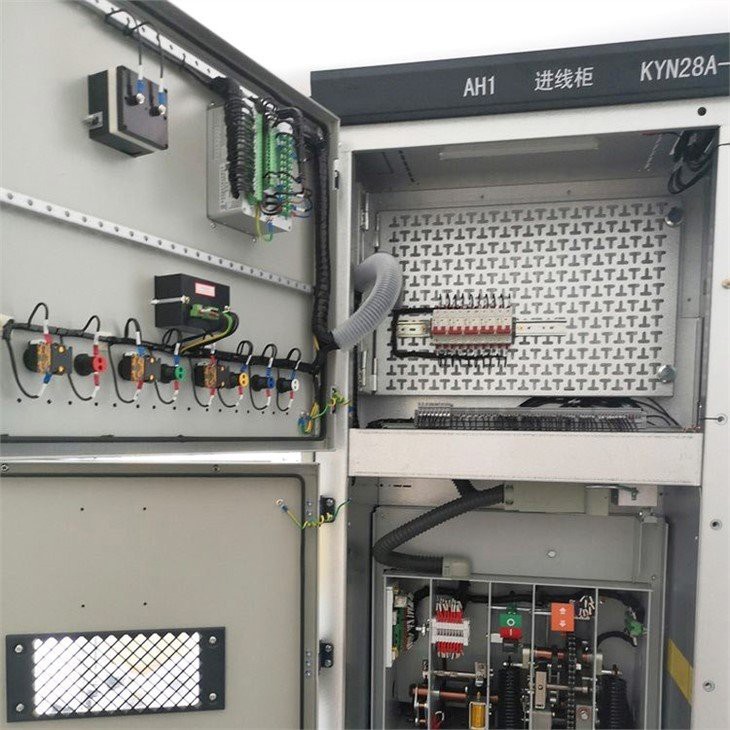

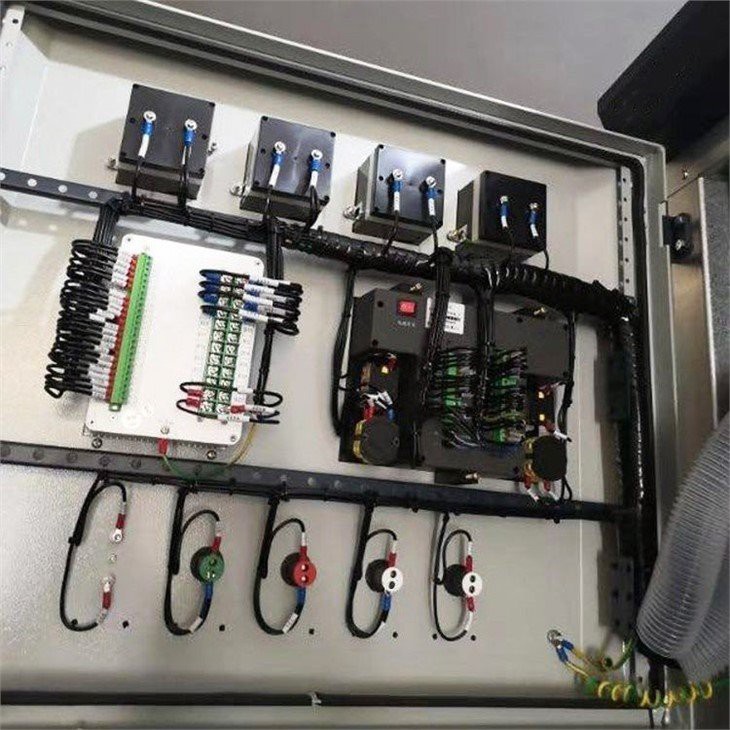

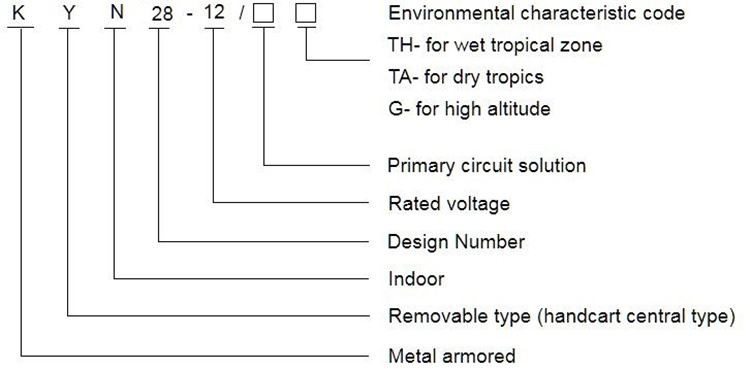

KYN28A-12 Indoor Metal Clad Drawout Switchgear

This device is an indoor metal-clad withdrawable switchgear, which is a complete set of power distribution devices for 3-12kV three-phase AC 50Hz single busbar and single busbar sectional system. It is mainly used for power transmission of power plants, small and medium-sized generators, power distribution of industrial and mining enterprises, and secondary substations of electric power systems, and the starting of large high-voltage motors.

Product structure features

1. All-metal assembly, assembled structure

2. The cabinet is made of imported aluminum-zinc-coated thin steel plates, which are processed by the FMS flexible processing system. It adopts advanced multi-folding process, and is connected by rivet nuts and high-strength bolts, with high precision, corrosion resistance, light weight, high strength and strong versatility.

3. It can be equipped with ZN63A-12 (VS1) series or imported VD4 series vacuum circuit breaker, which has wide applicability, high reliability and maintenance-free.

4. The handcart has working and test positions, and each position has positioning and display devices, which are safe and reliable.

5. Cars of the same specification can be freely interchanged with strong interchangeability.

6. The handcart is transported by a special carrier, which is light and flexible to operate.

7. The cable compartment can install up to 9 single-core cables.

8. Reliable mechanical and electrical interlocking devices can safely meet the requirements of "five preventions".

9. There are pressure relief channels in the high pressure chamber to ensure personal safety.

10. The front door is equipped with an observation window, which can observe the working status of the indoor components.

Factory

Henan Fengyuan Power Technology Co., Ltd. is a comprehensive enterprise with many years of production history of complete sets of accessories, integrating development, production and sales. Products are rich and varied to meet the special requirements of customers. Pay attention to the customer's application details to improve the field service life of the product. Provide product model, wiring diagram, principle, function, price, parameters, welcome to inquire and order.
