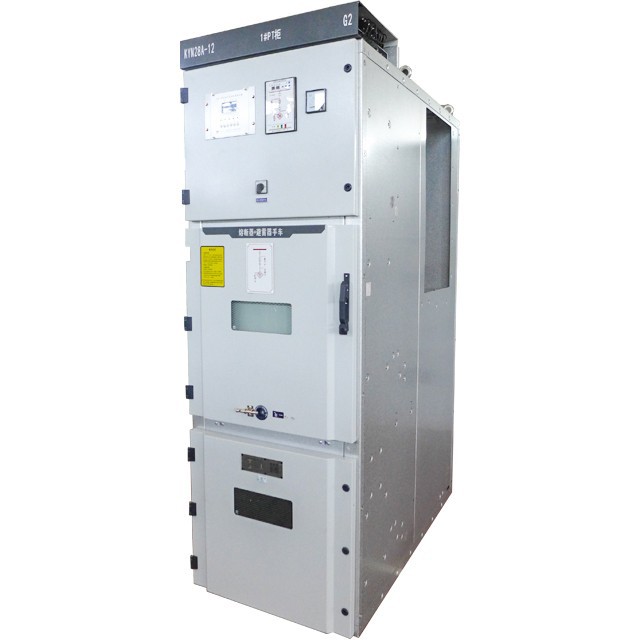

KYN28A-12 Indoor Metal Clad Withdrawable Switchgear

KYN28A-12 Indoor Metal Clad Withdrawable Switchgear



KYN series metal-clad removable enclosed switch cabinet (called switch cabinet for short). It is applicable for power receiving

and distribution in the 3.6-12Kv three-phase AC 50Hz single bus bar and single bus bar sectioning system. It has the functions of

controlling, protecting and monitoring the circuit.



Service Conditions



◎ Ambient airtemperature: -15°C~+40°C;



◎ Relative humidity: Daily average 95%，and daily average of water vapor pressure < 2.2kPa;

◎ Monthly average «90%, and monthly verage of water vapor pressure < 1.8kPa;

© Altitude: ^1000m;

◎ Seismic intensity: not beyond Ms8.

◎ Ambient air should be free of pollution of corrosive or flammable gas or vapor;

◎ No obvious vibration;



Main technical parameters
Rated voltage	.....................................	kV	3.6、7.2、12
Rated frequency	.....................................	Hz	50
Rated current of circuit breaker	.....................................	A	630/4000
Rated current of switchgear	.....................................	A	630/4000
Rated short-time withstand current (4S)	.....................................	kA	20、25、31.5、40
Rated peak withstand current (peak)	.....................................	kA	50、63、80、100
Rated short-circuit breaking current	.....................................	kA	20、25、31.5、40
Rated insulation level 1min power frequency withstand voltage	Pole-to-pole, pole-to- ground	kV	24、32、42
	Between open contacts	kV	24、32、48
Lightning impulse withstand voltage (peak)	Pole-to-pole, pole-to- ground	kV	40、60、75
	Between open contacts	kV	46、70、85
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened







Features



1: STRICT protection step to ensure personal safety



2: The cable room can be installed as many as 9 single-core cables



3: Operation and testing positions will be established for the handcart, and both positions are equipped with safe and reliable positioning device and display device



4: The enclosure is completely assembled from aluminized and galvanized steel plate, which are machined and bent by machine tool and then bolted.



5: It has high mechanical strength and its neatness and beauty is ensured.



6: The switchboard door is sprayed with plastic, also has strong capacity of impact resistance and corrosion protection.



7: The primary switch may be provided with VD4 vacuum circuit breaker and C3 series of fixed type load switch from ABB, various domestic vacuum circuit breakers (such as VS1, VH1, VK, ZN28) may also be provided in lieu of the same foreign products.



8: Front door is installed with a observation window to check the operating state of the components inside the room





Compliant with standards

GB3906 (3-35kV AC metal enclosed switch set separately). GB/T11022 (Common Technical Requirements for High Voltage Switchgear and Control Equipment Standards), IEC60298 (AC Metal Enclosed Switchgear and Control Equipment with Rated Voltages above 1kV and below 50kV), DL/T404 (Technical Conditions for Ordering Indoor AC High Voltage Switchgear).





1. Model Meaning

KYN28A-12- □ --- □

Environmental characteristics of armored cabinets: removable primary solution number: design number: indoor

2. Overall dimensions of the cabinet: (standard overhead incoming and outgoing line scheme; cable incoming and outgoing line scheme)

*Standard scheme for cable inlet and outlet lines and contact cabinets: width 800 (1000) × 1500 deep × 2300 high

*Standard scheme for overhead incoming and outgoing lines: width 800 (1000) × Deep 1660 × 2300 high

Note: 1. GZS1+cable inlet and outlet line and contact cabinet standard scheme: width 650 × 1500 deep × 2300 high; The spacing between phases is 150mm; The phase spacing of the GZS1 cabinet with a width of 800 is 210mm; The spacing between cabinets with a width of 1000 is 275mm;





Introduction to Five Prevention Interlocking:

(1) When the handcart is closed in the working position of the cabinet, the locking electromagnet inside the chassis of the handcart is locked on the screw and will not be pulled to prevent the handcart from accidentally pulling the circuit breaker with load.

(2) When the grounding switch is in the closed position, the push rod in the interlocking mechanism of the grounding switch spindle is pushed into the handcart guide rail in the cabinet, so the equipped circuit breaker handcart cannot be pushed into the cabinet.

(3) After the circuit breaker handcart is closed in the working position, the outgoing side is electrified, and the grounding switch cannot be closed at this time The push rod in the interlocking mechanism of the grounding switch spindle is blocked, and its operating handle cannot operate the grounding switch spindle

(4) For cable entry cabinets; The busbar section cabinet and the used transformer scheme are equipped with an electromagnetic lock on the lower door due to the electrification of the incoming cable side to ensure that the cable room cannot be entered when the cable side is electrified;

(5) By installing an error proof transfer switch (with red and green signs) on the panel, it is possible to prevent accidental opening and closing of the circuit breaker





Operating procedures

Power transmission operation:

First install and then seal the board, Close the front and lower doors again - - - Operate the grounding switch spindle and open it - - - Use a transfer vehicle (platform vehicle) to push the handcart (in the open state) into the cabinet (test position) - - - - Insert the secondary plug into the static socket - - - (test position indicator on) - - - - - (close the front and middle doors) - - - - - Use the handle to push the handcart from the test position (open state) to the working position - - - - (work position indicator on, test position indicator off) ---------Closing circuit breaker handcart





Power outage (maintenance) operation:

Opening the circuit breaker handcart - - - - Use the handle to exit the handcart from the working position (opening state) to the test position - - - - (The working position indicator is off, and the test position indicator is on) - - - - Open the front middle door - - - Pull out the secondary plug from the static socket - - - (The test position indicator is off) - - - - - Use the transfer vehicle to open the handcart (in the opening state) Exit the cabinet ------- Operate the grounding switch spindle and close it ------- Open the rear sealing plate and front lower door

★. Attention: The lower lightning arrester handcart and the middle (lower) PT handcart can be directly pulled out of the cabinet during busbar operation
