KYN28 HV switchgear earthing switchcabinet

Service conditions:

Ambient air temperature: -15C-+40C; Relative humidity: Daily mean≤95%, and daily mean of water vapor pressure < 2.2kPa; Monthly mean≤90%, and monthly mean of water vapor pressure < 1.8kPa; Altitude:≤1000m; Seismic intensity: not beyond Ms8. Ambient air should be free of pollution of corrosive or flammable gas or vapor; No obvious vibration; Any special requirements beyond the GB3906 stipulations can be setled through friendly negotiation.

Structure features:

The structure of the switchgear is shown in the fllowing figure. The al-metal modular assembled structure is made of imported anti- -corrosion aluminum- -zinc plate; it does not need surface treatment. It is processed by CNC high-precision equipment and adopted advanced multifold technology, and it is connected with rivet nuts and high-strength bolts, which is featured with high precision, light weight and good strength. The switchgear can be equipped with ZN63A-12(VS1) series, VD4 series and ZN65 series vacuum circuit breakers produced by the company, which has wide adaptability and interchangeability. The handcart has work position and test position, each position has positioning and display devices, which is safe and reliable. The cable chamber can contain up to 9 single-core cables with reliable mechanical and electrical interlocking devices, which fully meet the requirements of "five preventions", each chamber has pressure relief channels to ensure the safety of operators.

Main technical parameters
Rated voltage	..................	kV	12
Rated frequency	..................	Hz	50
Rated current	..................	A	630 1250
Rated short-time withstand current (4s)	..................	...	20 25 31.5
Rated peak withstand current (peak)	..................	...	50 63 80
Rated short-circuit breaking current	..................	kA	20 25 31.5
Rated short-circuit making current (peak)	.................	...	50 63 80
Rated insulation level	Power frequency withstand voltage (phase-to-phase, phase-to-ground/between open contacts)	kV	42/48
Rated insulation level	Impulse withstand voltage (phase-to-phase, phase-to-ground/between open contacts)	kV	75/85
Rated operating sequence	..................	...	O-0.3s-CO-180s-CO
Rated short-circuit breaking current breaking times	..................	...	50
Mechanical life peroid	..................	time	10000
IP code	..................	time	IP3X

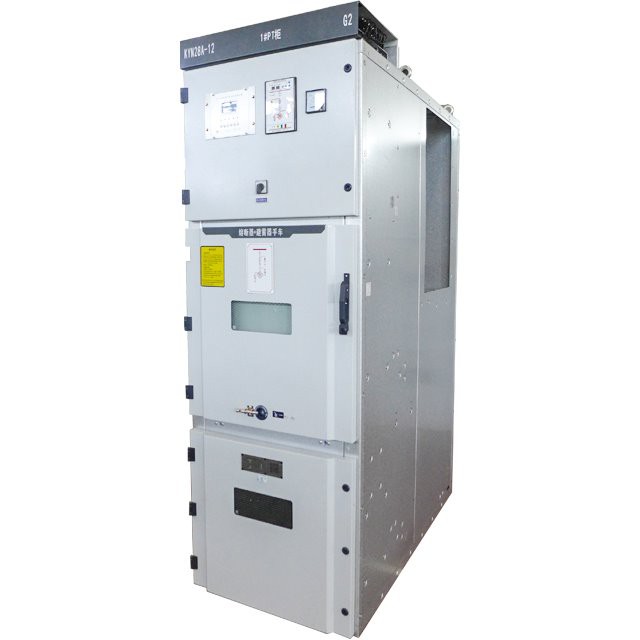

KYN28A-12 (22)
