Description

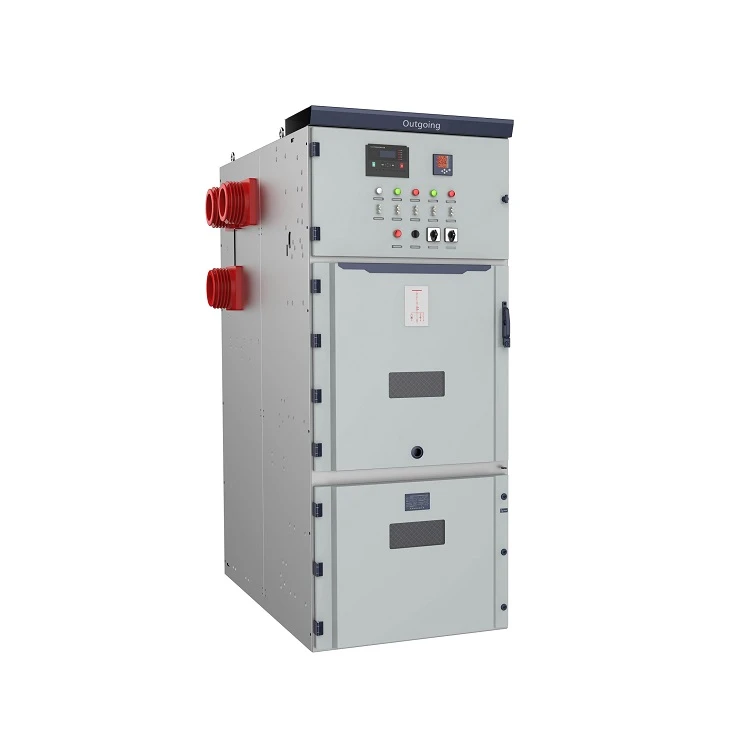

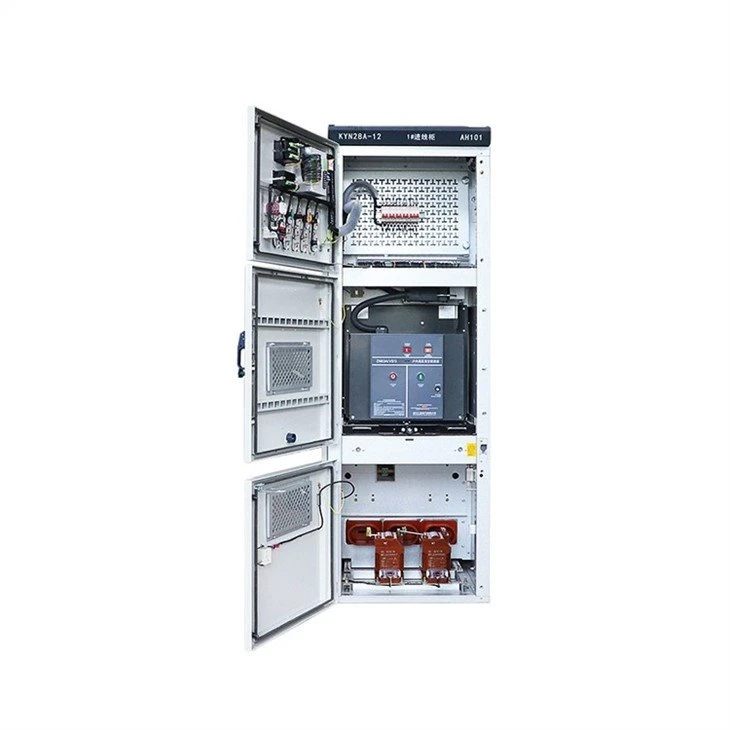

KYN28-12 Armored Removable High Voltage Switchgear
It is suitable for three-phase AC 50Hz power system for receiving and distributing electric energy and controlling, protecting and monitoring circuits.
Working conditions
Altitude: No more than 1000 meters
Ambient temperature: Upper limit 40+℃, lower limit -10℃
Relative humidity: Daily average not more than 95% (at 25°C)
Seismic crack waves: The intensity does not exceed 8 degrees
Environmental conditions: The surrounding air should not be significantly polluted by corrosive or flammable gases, water vapor, etc., without serious pollution and frequent violent vibrations.
The main technical parameters
Project | Unit | Date | ||
Rated voltage | KV | 3.6、7.2、12 | ||
Rated frequency | HZ | 50 | ||
Breaker rating | A | 630、1250、1600、2000、2500、3150 | ||
Switchgear rated current | A | 630、1250、1600、2000、2500、3150 | ||
Rated short time withstand current（4S） | KA | 20、25、31.5、40 | ||
1Rated peak withstand current（peak） | KA | 50、63、80、100 | ||
Rated short circuit breaking current | KA | 20、25、31.5、40 | ||
Rated short -circuit current（peak） | KA | 50、63、80、100 | ||
Rated insulation level 1min power frequency withstand voltage | Pole，the pole on the ground between | KV | 24、32、42 | |
Fracture between | KV | 24、32、42 | ||
Lighting impulse withstand voltage（peak） | Pole，the pole on the ground between | KV | 40、60、75 | |
Fracture between | KV | 46、70、85 | ||
Protection class | Shell IP4X，among compartment，when the circuit breaker compartment door open for the IP2X | |||
Application place
Urban residents, large secondary substations, opening and closing offices, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals, stadiums, railways, tunnels, etc.
