35kv High Voltage Switchgear

35kv High Voltage Switchgear

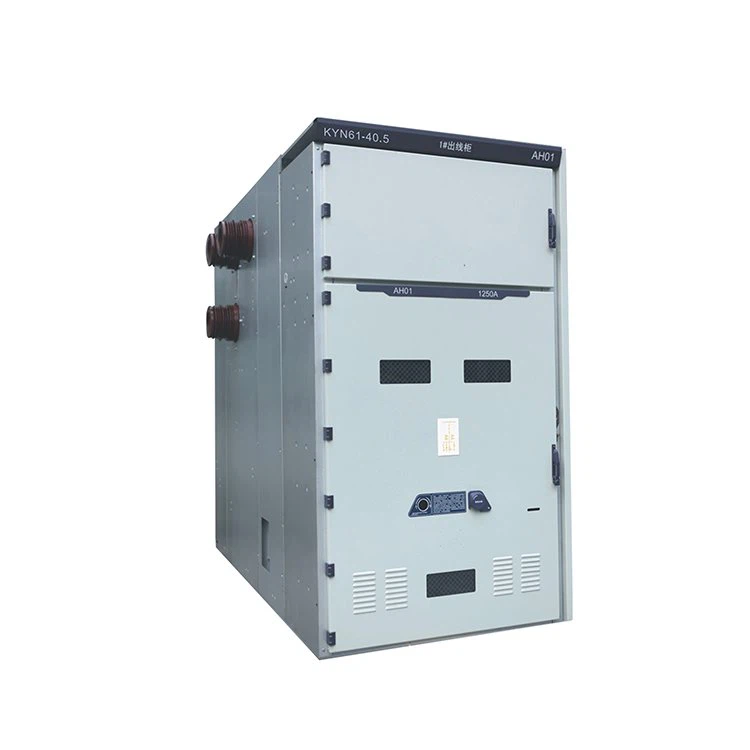

KYN61-40.5high voltage switchgear is suitable for three-phase AC 50HZ rated voltage 40.5KV single bus and single bus segmented power system. Used for receiving and distributing electric energy and controlling, protecting and monitoring the circuit.

Conditions of Use

1. Ambient temperature: upper limit +40°C and lower limit -10°C;

2. The altitude does not exceed 1000 meters;

3. Air relative humidity: daily average ≤95%, monthly average ≤90%;

4. The seismic fissure does not exceed 8 degrees;

5. Places without conductive dust, corrosive gas and water vapor;

6. Where there is no fire, explosion hazard and severe vibration.

Note: When the above-mentioned normal use conditions are exceeded, the user can negotiate with our company to determine the allowable scope and technical measures.

Factory showing room

Certificates

Exhibition

The following information must be provided when ordering:

1. The full model of the product, including the main circuit scheme and the auxiliary circuit scheme;

2. Combination sequence diagram of main circuit system;

3. Layout drawing of the cabinet body;

4. Electrical schematic diagram of auxiliary circuit;

5. The name, model and specification of the components in the cabinet;

6. Other special requirements.
