24kv High Voltage Indoor Metal Clad Switchgear

24kv High Voltage Indoor Metal Clad Switchgear KYN28-24 is an indoor complete power distribution device with a rated voltage of 24kV three-phase AC 50Hz. It is used for power transmission in power plants, electric power systems and substations in industrial and mining enterprises to receive and...

Send Inquiry

Description

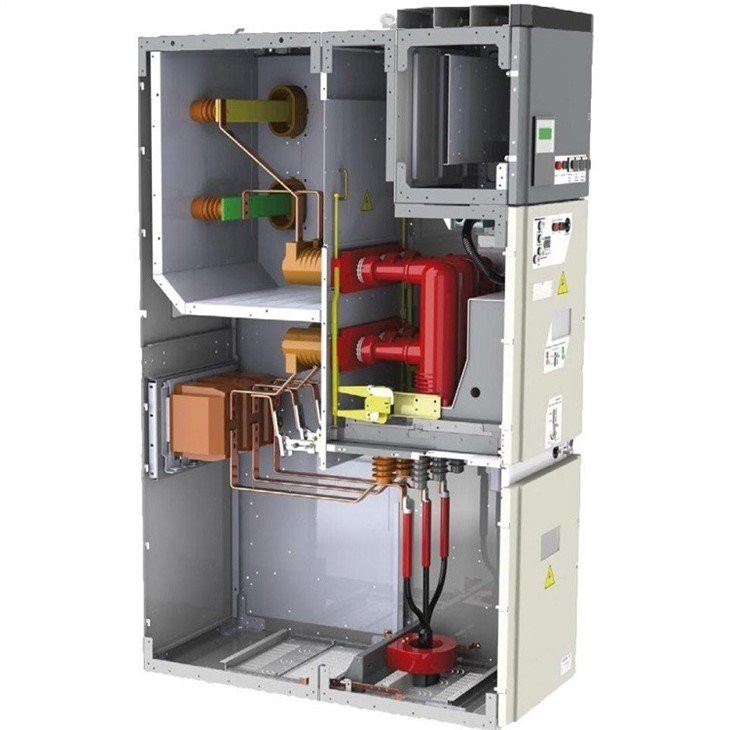

24kv High Voltage Indoor Metal Clad Switchgear

KYN28-24 is an indoor complete power distribution device with a rated voltage of 24kV three-phase AC 50Hz.

It is used for power transmission in power plants, electric power systems and substations in industrial and mining enterprises to receive and distribute electricity, and can also be used to frequently start high-voltage motors.

Applicable environment:

1-Ambient air temperature: -15°C - +40°C

2- Altitude: ≤1000m

3- Relative humidity: ≤95% per day, ≤90% per month

4-Earthquake Intensity: ≤Ms8

5-The installation site should be free from fire, explosion hazard, heavy pollution, chemical corrosion or severe vibration.

Technical data

Rated voltage	kV	24
Rated insulation voltage	kV	24
Rated power frequency withstand voltage	kV 1min	50
Rated lightning impulse withstand voltage	kV	125
Rated frequency	Hz	50/60
Rated short time withstand current	kA 3 s	up to 50
Peak current	kA	up to 125
Internal arc withstand current	kA 1s	up to 50
Main busbar rated current	A	up to 4000
Circuit-breaker rated current	A	630 1250 1600 2000 2500 3150
Circuit-breaker rated current with forced ventilation	A	3600 4000
