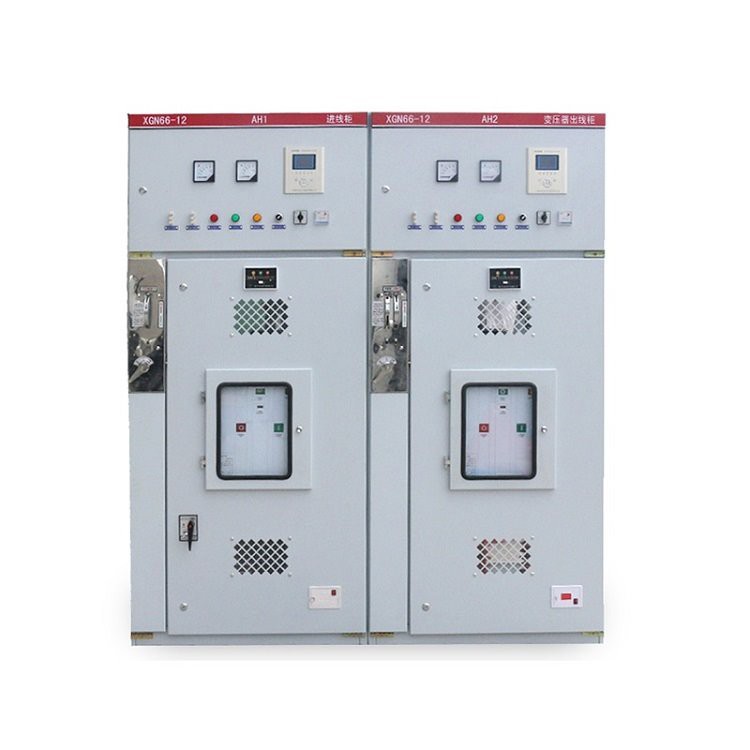

High Voltage Fixed Metal Enclosed Switchgear

The switchgear is composed of cabinet, main switch (SF6 load switch or combination electrical appliance), grounding switch, instrument room, busbar and other electrical components and auxiliary components. The cabinet is assembled from aluminum-zinc-coated steel plates by modular forming. There is a pressure relief channel behind the cabinet to protect the operator in the event of an internal fault.

Conditions of use of high-voltage switchgear

1. Ambient air temperature: -15℃~+40℃;

2. Altitude: 1000m and below;

3. Humidity conditions:

The daily average value is not more than 95% and the daily average value of water vapor pressure is not more than 2.2kPa.

The monthly average value is not more than 90%, and the monthly average value of water vapor pressure is not more than 1.8kPa.

4. Earthquake intensity: no more than 8 degrees.

5. There is no obvious pollution place such as corrosive or flammable gas.

The switchgear has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation. Suitable for 50Hz, 12kV power systems. Widely used in industrial and civil cable ring network and distribution network terminal projects, as the reception and distribution of electric energy. It is especially suitable for power distribution in urban residential areas, small substations, opening and closing stations, cable branch boxes, box-type substations, industrial and mining enterprises, etc.

Company Information

Founded in 2010, Henan Fengyuan Power Technology Co., Ltd. is a professional electrical appliance manufacturer with sophisticated equipment, perfect technology and complete testing methods. We can provide:

1) Good quality control

2) very competitive price

3) State-of-the-art technology products

4) Effective OEM&ODM service

Certificates

Packing & Delivery

Ordering Instructions: Users need to provide the following information:

1. The main wiring plan number, usage and single-line system diagram, rated voltage and current, rated short-circuit breaking current, plane layout and switchgear arrangement configuration, etc.

2. Requirements and schematic diagrams of switchgear control, measurement and protection functions, as well as other latching and automatic devices.

3. The model, specification and quantity of the main electrical components in the switchgear.

4. The use of switchgear under special environmental conditions should be explained in detail.

5. If you have other special requirements, please contact our company.
