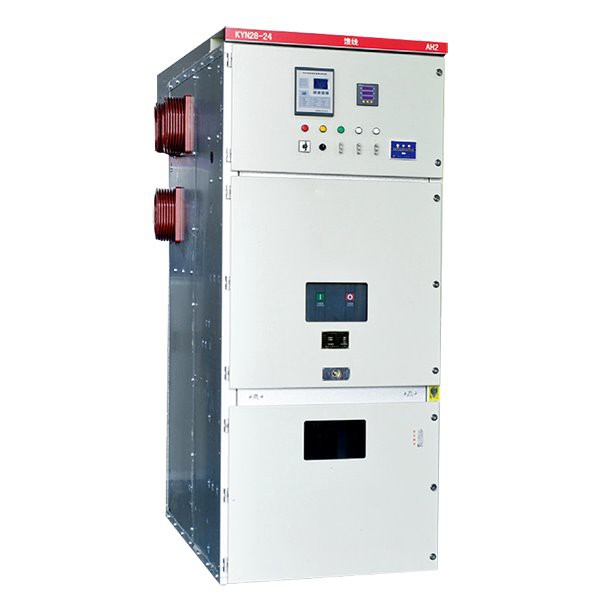

13kv Incoming Outlet KYN28 Cabinet Switchgear
Structural characteristics 1. It has perfect mechanical and electrical double locking and anti error operation function. 2. The cabinet can be flexibly equipped with VS1, VYG, VD4, VN2 and other vacuum circuit breakers. 3. The roof part adopts ventilation design, that is, it can meet the need of dust prevention and no need to consider the problem of pressure relief. 4. Cabinet use: single axis, double shaft and so on, to meet different requirements. 5. Using Aluminum-zinc composite flanging process, application of flat screw installation, flexible use, convenient, simple and practical, good performance. 6. KYN28-24 in the high voltage electrical equipment quality supervision and inspection center through the full tank type experiment, its design and manufacture fully meet the requirements of GB, DC, IEC standards. KYN28-24 technical parameter Rated voltage(KV) 3.6-24 Rated current(A) 630/1250 Breaking current(A)40 Enclosure protection level IP4X
Description






Technical specification of KYN28-24 switchgear
Item | Unit | Data | |
Rated voltage | KV | 24 | |
Insulation level | Rated power-frequency withstand voltage(1min) | KV | 65/79(phase to earth/across open contacts) |
Rated lightening impulse withstand voltage | KV | 125/145(phase to earth/across open contacts) | |
Rated frequency | HZ | 50/60 | |
Rated main bus bar current | A | 630,1250,1600,2000,3150 | |
Rated branching bus bar current | A | 630,1250,1600,2000,3150 | |
4s Short-time withstand current(rms.) | KA | 16,20,25,31.5 | |
Peak withstand current(peak.) | KA | 40,50,63,80 | |
Protection degree | Enclosure:IP4X, Between compartment:IP2X | ||
