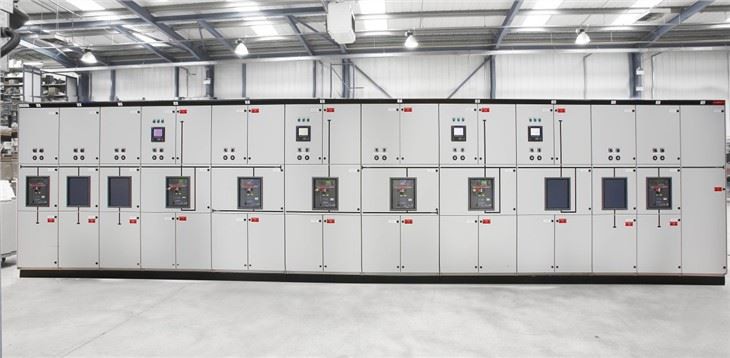

24KV SF6 Insulated Metal-enclosed Switchgear
The SF6 insulated switchgear is suitable for middle voltage power distribution system with a rated voltage of 12kV and 40.5kV. It could be used as RMUs in a power supply network, fault isolating switches and sectionalizing switches. If equipped with distribution automation devices (FTU/DTU) and communication devices, the SF6 insulated switchgear could communicate with the control center, measure the cable voltage, current, etc, and monitor the working status of switches.
Description

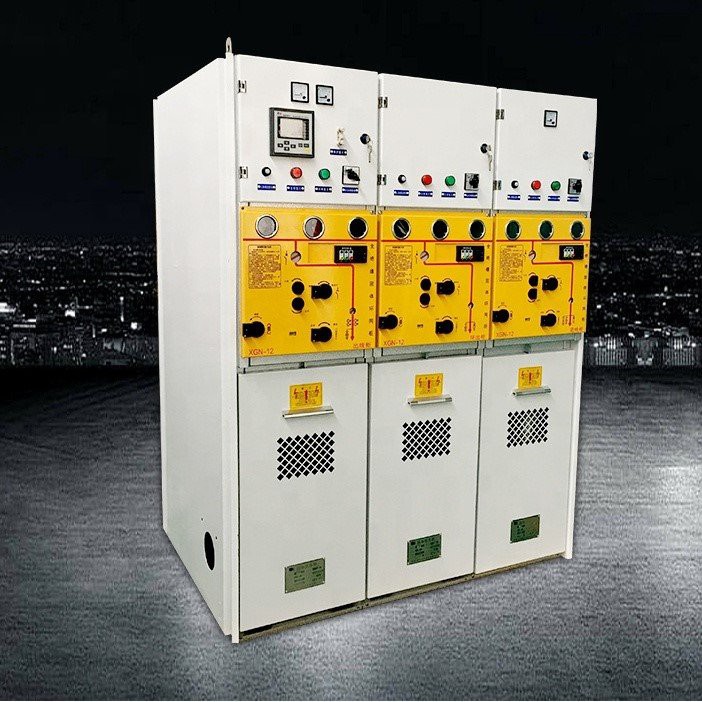

24KV SF6 Insulated Metal-enclosed Switchgear
Product Detail
| Rated voltage | 12KV/24kv |
| Rated current | 630A |
| Rated frequency | 50Hz |
| Protection level | IP3X |
| Type | Fixed type |
| Application | Indoor |
| Load switch | SF6 |
| Product Keywords | medium voltage rmu,12/24kv ring main unit switchgear,sf6 high voltage gis switchgear |
1.Rating: Rated voltage 12/24KV, rated current reach to 630A.
2.Application :mainly applicable in urban power grid construction and renovation
project. industrial and mining enterprises.high-rise buildings and communal
facilities .For power distribution .controlling and protection on electric equipment
as the loop power supply unit or terminal equipment.It also can be installed in
preloaded substation
3.Feature: Use SF6 load switch and load switch-fuse combination as main switch.
Equipped with vacuum load switch and spring operating mechanism which can be
operated by hand or electric. Earthing switch and insulating switch are equipped
with hand operating mechanism. With small volume and high security
4.Standard: IEC60420
Features
• The SF6 is the insulation material which is sealed in a stainless-steel enclosure, fully-insulated and maintenance-free.
• Long life endurance.
• Obvious watchable open contacts.
• Reliable interlock and safer operation.
