What Are The Characteristics Of The Material Of The 10kV Power Generation Box Type Transformer Box
Dec 08, 2023
What are the characteristics of the material of the 10kV power generation box type transformer box
1, Basic requirements for box material
Fire resistance: The material of the box must have good fire resistance and be able to withstand high temperatures and flames.
Moisture resistance: The material of the box must have good moisture resistance, which can prevent moisture and water erosion.
Corrosion resistance: The material of the box must have good corrosion resistance and be able to resist the erosion of the environment and corrosive media.
Insulation performance: The material of the box must have good insulation performance, which can ensure safety and stable power transmission.
Lightweight: The material of the box must be lightweight, able to facilitate transportation and installation.
2, Common Box Materials
Aluminum alloy: Aluminum alloy is a common box material with advantages such as lightweight, high strength, and corrosion resistance. However, its fire resistance performance is poor, and it is necessary to add fire-resistant materials to improve its fire resistance performance.
Stainless steel: Stainless steel is a high-quality box material with advantages such as high strength, corrosion resistance, and good fire resistance. However, its cost is high and it requires the addition of fire-resistant materials to improve its fire performance.
Fiberglass: Fiberglass is a new type of box material that has advantages such as lightweight, high strength, corrosion resistance, and good fire resistance. However, its cost is high and it requires the addition of fire-resistant materials to improve its fire performance.
3, Characteristics of Material for 10kV Photovoltaic Power Generation Box Transformer Box
Fire resistance performance: The material of the 10kV photovoltaic power generation box type transformer box must have excellent fire resistance performance and be able to withstand high temperatures and flames. Therefore, it is usually chosen to add fire-resistant materials to improve their fire performance, such as fire-resistant coatings, fire-resistant boards, etc.
Moisture proof performance: The material of the 10kV photovoltaic power generation box type transformer box must have good moisture proof performance, which can prevent moisture and water erosion. Therefore, waterproof materials and treatments are usually chosen to improve their moisture resistance.
Corrosion resistance: The material of the 10kV photovoltaic power generation box type transformer box must have good corrosion resistance and be able to resist the erosion of the environment and corrosive media. Therefore, it is usually chosen to use anti-corrosion materials and anti-corrosion treatments to improve their corrosion resistance performance
Insulation performance: The material of the 10kV photovoltaic power generation box type transformer box must have good insulation performance, which can ensure safety and stable power transmission. Therefore, insulation materials and insulation treatments are usually chosen to improve their insulation performance.
Lightweight: The material of the 10kV photovoltaic power generation box type transformer box must be lightweight, able to facilitate transportation and installation. Therefore, lightweight materials such as aluminum alloy, fiberglass, etc. are usually chosen to reduce their weight.
The selection of material for the 10kV photovoltaic power generation box type transformer has a crucial impact on its performance and lifespan. It is necessary to comprehensively consider the actual situation and choose the most suitable material to meet the requirements. At the same time, attention should also be paid to the processing quality and manufacturing process of materials to ensure the quality and safety of the box.
PRODUCT LINK
http://www.switchgear-china.com/box-type-compact-substation/outdoor-combined-transformer-substation.html

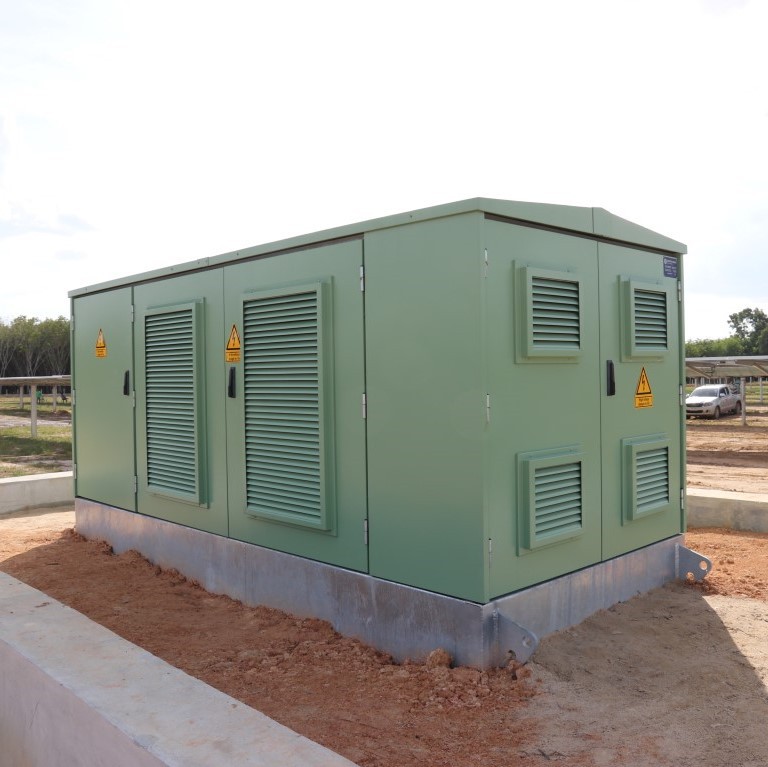

PRODUCT PHOTO
This product is usually customized.
We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.
Please click on the button below to send us the information, and our sales personnel will contact you to provide you with the design drawings
Here are our customer examples for your reference
Russian clients
| TECHNICAL REQUIREMENTS AND CHARACTERISTICS OF EQUIPMENT | ||||
| Re:82 sets compact substation | ||||
| Item- No. |
Schedule of Technical Data | Unit | Required (at 3000 m |
Offered Data |
| System Data Requirements | ||||
| 1.05.10 | Stranded copper conductor for earthing | |||
| Manufacturer | - | |||
| Material | - | copper | ||
| Cross-section | mm2 | >50 | ||
| Length | m | >40 | ||
| 1.05.11 | Earthing rods | |||
| Manufacturer | - | |||
| Type | - | |||
| Materia! | - | |||
| Length | m | |||
| Sections per rod | pcs | |||
| 1.6 | Compact Substations (Option 1) | |||
| Manufacturer | - | fengyuan | ||
| Type | - | OutDoor | ||
| Overall protection class for complete substation | - | IP 44 | IP 44 | |
| Material of enclosure | - | GI | ||
| Overall dimensions (W x L x H) | ||||
| for S/S with 1x50 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| ■ for S/S with 1x100 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| for S/S with 1x160 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| • for S/S with 1x250 kVA transformer | mm/mm/mm | 3000x1850x2150 | ||
| Overall weight | ||||
| ■ for S/S with 1x50 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x100 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x160 kVA transformer | kg | 1000kg. | ||
| ■ for S/S with 1x250 kVA transformer | kg | 1000kg. | ||
| 1.6.1 | 20 kV Switchgear equipment | |||
| Manufacturer | - | Chnt / Equivalent | ||
| Type | - | Indoor RMU | ||
