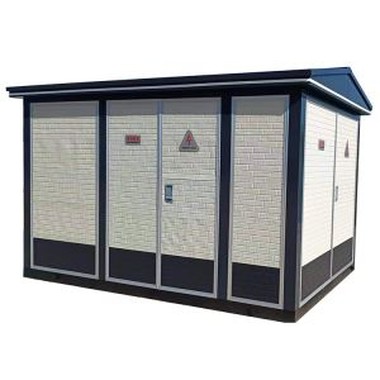

MV/LV Prefabricated Substation

Prefabricated substation is a kind of prefabricated compact power distribution equipment that integrates high and low voltage switchgear, distribution transformer and low voltage power distribution device according to a certain wiring scheme. The prefabricated substation is suitable for mines, factories and enterprises, oil and gas fields and wind power stations. It replaces the original civil power distribution houses and power distribution stations, and becomes a new type of complete power distribution equipment.

MVLV Prefabricated Substation

Main features of prefabricated substation

The modular structure of the enclosure provides a high degree of flexibility to meet specific site requirements

Completely separated structure of medium voltage switchgear, transformer and low voltage switchgear

Specially designed ventilation system to adapt to local climatic conditions

Attractive aesthetics

Ensure the safety of operators, the public and the environment

Low life cycle cost

Use environment of prefabricated substation

1.Average altitude: ≤100m;

2. Working temperature: -30°C~+40*C;

3. Temperature: monthly average temperature +30°C annual average temperature +20°C;

4. Air humidity: daily average value ≤95%, monthly average value ≤90%;

5. Anti-seismic level: horizontal instantaneous speed 0.2m/s2, vertical instantaneous speed 0.15m/s2;

6. Installation location: no strong impact, relatively serious environmental pollution and chemical corrosion, no conductive floating dust and explosion risk site
