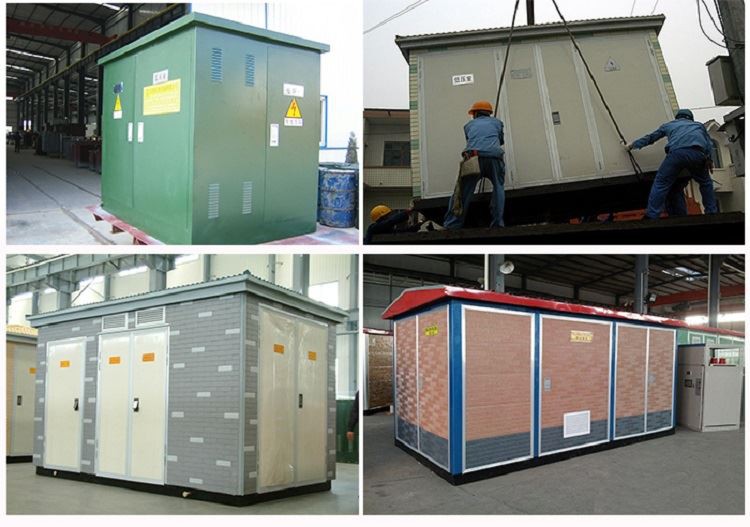

The compact prefabricated substation is the combination of high-voltage electrical equipment, transformers, and low-voltage electrical equipment into a compact complete set of power distribution devices. It is used in high-rise buildings, urban and rural buildings, residential quarters, high-tech development zones, small and medium-sized factories, mines and oil fields, and temporary construction power for places such as power distribution systems to receive and distribute power.

Use environmental conditions

1. Earthquake ≤ 8 degrees

2. There is no fire, explosion hazard, severe pollution, chemical corrosion and severe vibration

Note: For special conditions of use, it is proposed to negotiate with the manufacturer when ordering.

Structural features

1. This product is composed of a high-voltage power distribution device, a transformer and a low-voltage power distribution device. It is divided into three functional compartments, namely a high-voltage room, a transformer room and a low-voltage room. It can be arranged into multiple power supply modes such as ring network power supply, terminal power supply, dual power supply, etc., and high-voltage metering components can also be installed to meet the needs of high-voltage metering.

2. The high-pressure chamber has a compact and reasonable structure, and has a comprehensive anti-misoperation joint pin function.

3. Adopt two methods of natural ventilation and forced ventilation. The transformer room and the high and low voltage rooms have ventilation ducts, and the exhaust fan has a temperature control device that can automatically start and close according to the set temperature to ensure the normal operation of the transformer.

4. The box structure can prevent rainwater and dirt from entering. The material is made of steel plate, which has anti-corrosion, waterproof and dust-proof properties, long service life and beautiful appearance.

Technical specifications

Application

Widely used for 6KV/6.3KV/7.2KV/10KV/12KV/22KV/24KV/33KV/35KV/40.5KV box-type transformer power distribution cabinets, urban power grids, residential quarters, high-rise buildings, industrial and mining, hotels, shopping malls, airports, railways, oil fields, docks, highways, and temporary power facilities, etc. indoor and outdoor places.
