Professional Prefabricated Electrical Substation Box 3 Phase

Product description

Box-type substation is a compact complete set of power distribution equipment, which combines high-voltage switchgear, distribution transformer and low-voltage switchgear according to a certain wiring scheme. Main components: transformers, high-voltage switchgear and its control equipment, low-voltage switchgear and its control equipment, corresponding internal connecting lines (cables, bus bars, etc.) and other auxiliary equipment.

1. Small size, compact structure, reliable power supply, easy installation; single power supply, dual power supply or ring network power supply can be realized, with double fuse protection, low operating cost.

2. The surface of the case is treated with electrostatic spray paint, which has good wear resistance. It is suitable for ring network and single and double power supplies. It is easy to move and can improve the reliability of the power supply.

3. The transformer adopts environmentally friendly S11 series spiral iron core, non-excitation voltage regulation, fully enclosed, energy saving, environmental protection, and low noise. Amorphous alloy transformers can also be provided upon customer request. High-voltage load switch and protective fuse. Placed in an oil-filled iron tank, which is a fully enclosed structure.

4. The low voltage room is equipped with an watt-hour meter, a voltmeter and four outgoing circuit breakers, and reactive power compensation can be provided when necessary.

5. Adopt S11 series spiral core transformer, no-load loss is 30%-40% lower than S9, and noise is 7~10dB lower than S9.

6. The combined transformer has the characteristics of reliable power supply, reasonable structure, fast installation, flexible and convenient operation, small size and low construction cost.

7. Suitable for outdoor and indoor, widely used in industrial parks, residential areas, business centers and high-rise buildings.

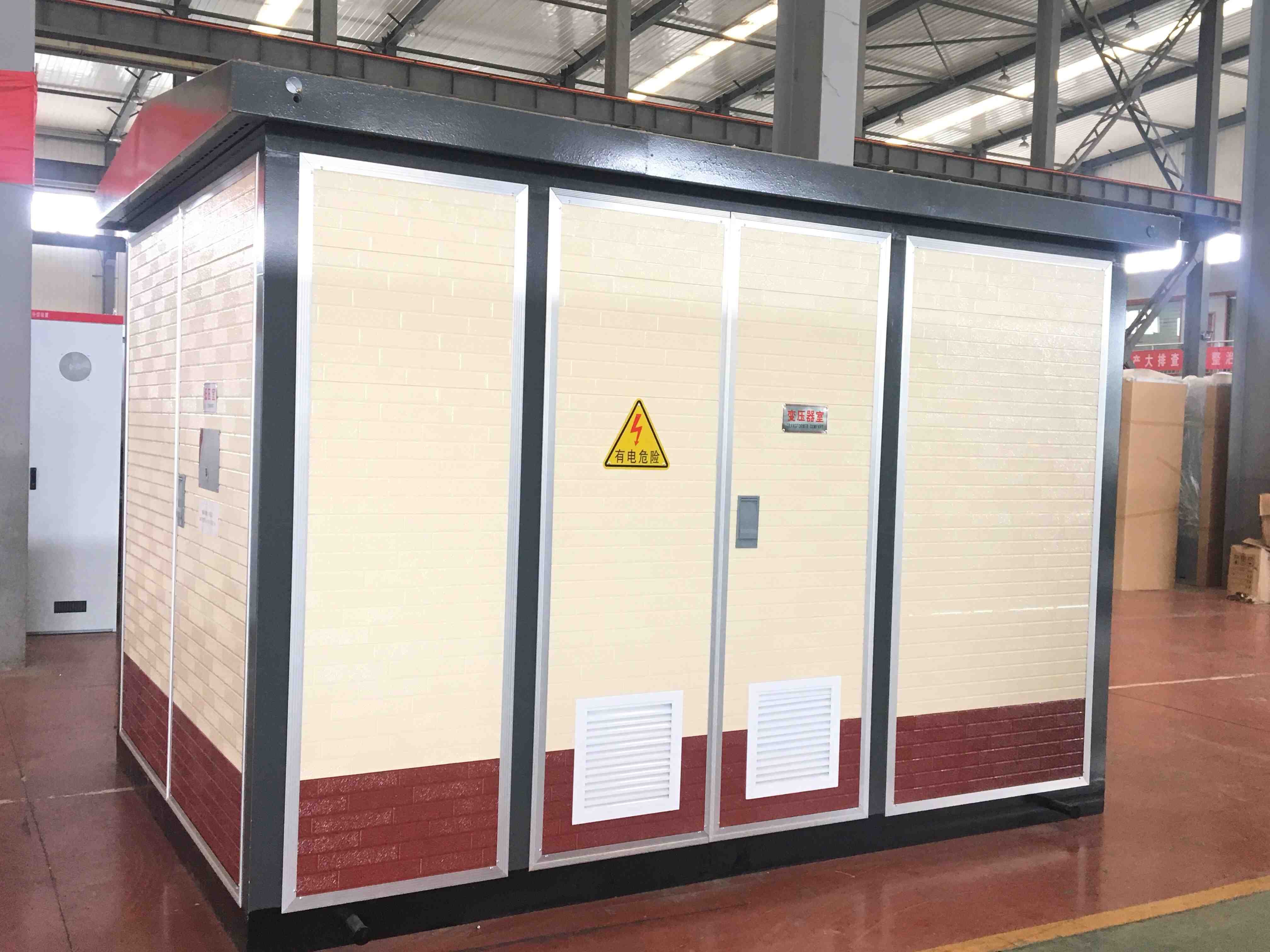

Prefabricated Electrical Substation Box

Conditions of Use

1. The highest ambient temperature should not exceed 45℃, and the lowest should not exceed -45℃;

2. The height should not exceed 1000m. If special customized transformers and low-voltage components are used, the height can reach 4000m;

3. Placed in a place where the vertical inclination does not exceed 5° and there is no severe vibration or impact;

4. The air humidity is not more than 90% (+ 25℃);

5. A place where there is no dust, no explosion, no corrosion of metal and electrical parts;

6. Outdoor wind speed shall not exceed 35m/s.

7. If the above-mentioned normal use environmental conditions are exceeded, the customer can customize it from our company.

Note: Due to continuous product improvement, the dimensions provided in this catalog are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

Configuration	Power capacity	W	H	D	W1	D1	D2	H1	Weight(kg)
Standard π configuration	≤125kVA	2000	1580	1116	1180	508	575	1240	2000
	160~500kVA	2000	1580	1350	1330	508	655	1340	2950
	630kVA	2000	1710	1560	1420	632	775	1480	3400
	800kVA	2000	1710	1690	1420	632	775	1480	3600
	1000kVA	2000	1710	1820	1420	632	815	1480	4000
	1250kVA	2000	1710	1840	1560	632	795	1480	4800
	1600kVA	2205	1710	1920	1680	632	920	1520	5700
Extra π configuration	≤125kVA	1900	1900	1240	1180	632	575	1240	2200
	160~500kVA	1900	1900	1474	1330	632	655	1340	3150
	630kVA	1900	1900	1560	1420	632	775	1480	3600
	800kVA	1900	1900	1690	1420	632	775	1480	3800
	1000kVA	1900	1900	1780	1420	632	815	1480	4200
